Infinity TF-260C7 Fresnel Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

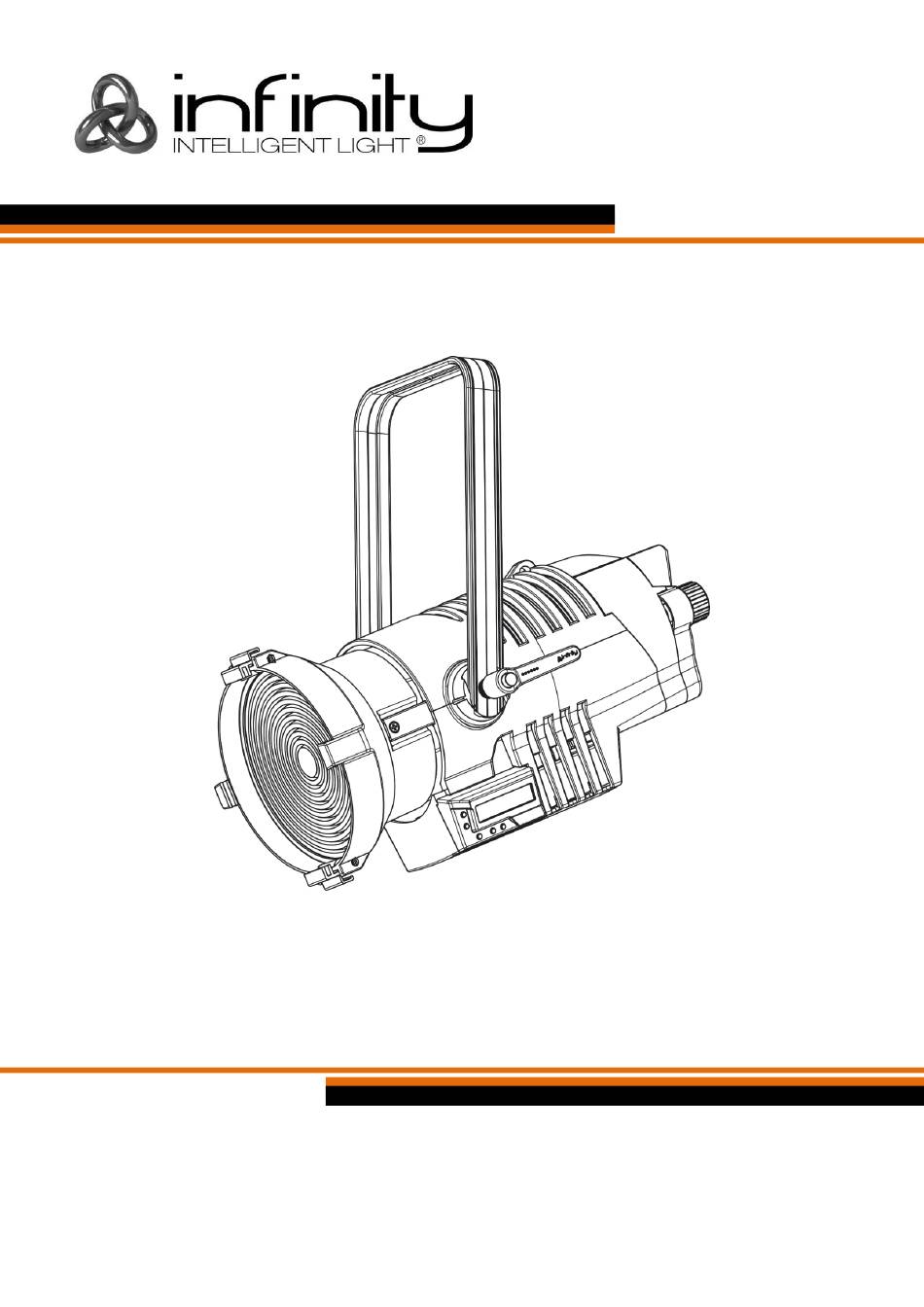

MANUAL
ENGLISH
Infinity TF-260C7 Fresnel
V1
Ordercode: 200203
Firmware Version 1.04
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TF-260C7 Fresnel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Infinity TF-260C7 Fresnel

Summary of Contents for Infinity TF-260C7 Fresnel

  • Page 1 MANUAL ENGLISH Infinity TF-260C7 Fresnel Ordercode: 200203 Firmware Version 1.04 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...

  • Page 2: Table Of Contents

    Description of the device ..............................8 Overview ..................................9 Backside ..................................10 Installation ..................................10 Set Up and Operation ..............................10 Control Modes ................................11 One Infinity Fresnel (Manual control) ........................11 Multiple Infinity Fresnels (DMX Control) ........................11 Fixture Linking ................................12 Data Cabling ................................12 Control Panel ................................13 Control Mode ................................13 DMX Addressing ................................13...
  • Page 3 TF-260C7 Fresnel Maintenance ..................................42 Troubleshooting ................................42 No Light ..................................42 No Response to DMX..............................42 Product Specifications ..............................44 Dimensions ..................................45 Notes ....................................46 Ordercode: 200203...

  • Page 4: Warning

    Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Infinity TF-260C7 Fresnel ● Neutrik PowerCON to Schuko power cable (1,4 m) ●...
  • Page 5 TF-260C7 Fresnel Before your initial start-up, please make sure that there is no damage caused by transportation. Should there be any, consult your dealer and do not use the device. To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this manual.

  • Page 6: Operating Determinations

    ● If your device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Infinity dealer for service. ● For adult use only. The device must be installed beyond the reach of children. Never leave the unit running unattended.

  • Page 7: Connection With The Mains

    TF-260C7 Fresnel The Infinity TF-260C7 Fresnel can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property ! Connection with the mains Connect the device to the mains with the power-plug.

  • Page 8: Return Procedure

    TF-260C7 Fresnel Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

  • Page 9: Description Of The Device

    260C7 into the only fixture for any TV-application. Lighting larger areas in a specified colour is no issue for the TF-260C7 Fresnel. With RGB, CMY or HSI control the desired colour is at your fingertips without worrying about the best possible mix from the 7 colours source, intelligence is inside. The zoom focus mechanism is easy and intuitive, both manually and motorized by DMX applicable between 15°...

  • Page 10: Overview

    TF-260C7 Fresnel Overview Fig. 02 01) 260W Lumiled 7 colour LED 02) Mounting bracket 03) Safety eye 04) Rear handle 05) Manual Focus 06) Adjustment handle 07) Control buttons + LC-display Ordercode: 200203...

  • Page 11: Backside

    13) Neutrik PowerCON OUT (Grey) 14) Manual Focus Installation Remove all packing materials from the Infinity TF-260C7 Fresnel. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly.

  • Page 12: Control Modes

    03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Infinity Fresnel is not connected with a DMX cable, it functions as a stand-alone device. 05) Please see pages 17 for more information about the Manual control mode.

  • Page 13: Fixture Linking

    DAP DMX adapter: 3-pin > 5-pin. Ordercode FLA30. ● DAP DMX Terminator 3-pin. Ordercode FLA42. ● DAP DMX Terminator 5-pin. Ordercode FLA43. The Infinity TF-260C7 Fresnel can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 200203...

  • Page 14: Control Panel

    When using multiple Infinity Fresnels, make sure you set the DMX addresses right. Therefore, the DMX address of the first Infinity Fresnels should be 1(001); the DMX address of the second Infinity Fresnels should be 1+21=22 (022); the DMX address of the third Infinity Fresnels should be 22+21=43 (043), etc.

  • Page 15: Menu Overview

    TF-260C7 Fresnel Menu Overview Ordercode: 200203...
  • Page 16 TF-260C7 Fresnel Ordercode: 200203...

  • Page 17: Activate Focus Mode

    TF-260C7 Fresnel The Infinity TF-260C7 will show the Info screen at start-up ! Press the Home button (B) to switch between the Info screen and the current menu mode. Press the Return button (C) to go back to the main menu.

  • Page 18: Dmx Configuration

    04) Press the ENTER button to confirm. 3. Manual In this menu you can set the manual settings from the Infinity Fresnel. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu.

  • Page 19: Color Wheel

    TF-260C7 Fresnel 3.3 Color Wheel 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu. 03) Press the UP/DOWN buttons to choose one of the 64 preset colors and white: 04) Press the ENTER button to confirm.

  • Page 20: Dimmer Curves

    TF-260C7 Fresnel 4. Dimmer Curves In this menu you can choose a dimmer curve. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to choose from the 4 available options: 04) Press the ENTER button to confirm.

  • Page 21: Cct Mode

    TF-260C7 Fresnel 6. CCT Mode In this menu you can choose between different outputs in the CCT mode. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.

  • Page 22: Dmx Lost Mode

    TF-260C7 Fresnel 8. DMX Lost Mode In this menu you can determine the behaviour of the Infinity Fresnel in case of a DMX failure. The display will blink (only if Display set to “Auto Off”). 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu.

  • Page 23: Zoom Motor

    TF-260C7 Fresnel 13. Zoom Motor In this menu you can set the manual settings from the zoom motor. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the submenu.

  • Page 24: Info

    TF-260C7 Fresnel 14. Info In this menu you can view the information about the device. 01) While in the main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) The display will show:...

  • Page 25: Dmx Channels Quickguide

    TF-260C7 Fresnel DMX Channels Quickguide Infinity TF-260C7 Dimmer Basic Thungsten RGB Pro CMY Pro HSI Pro Mode Mode Mode Mode Mode Mode Mode 7Color Profile (1CH) (6CH) (7CH) (11CH) (11CH) (17CH) (21CH) Dimmer Coarse Dimmer Fine Strobe Color Wheel CW Crossfade...

  • Page 26: Dmx Channels

    TF-260C7 Fresnel DMX Channels 1 Channel (Basic) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% 6 Channels (Basic) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Shutter/Strobe...
  • Page 27 TF-260C7 Fresnel 68-70 Light blue Lee 118 71-73 Dark blue Lee 119 74-76 Deep blue Lee 120 77-79 Lee green Lee 121 80-82 Fern green Lee 122 83-85 Dark green Lee 124 86-88 Bright pink Lee 128 89-91 Medium blue...

  • Page 28: Channels (Thungsten)

    TF-260C7 Fresnel 252-253 25,3 sec. crossfade 253-254 25,4 sec. crossfade 254-255 25,5 sec. crossfade Note: The color wheel crossfade time is the time which needs to pass before the device fades from color 1 to color 2. 7 Channels (Thungsten) Channel 1 –...
  • Page 29 TF-260C7 Fresnel 110-112 Bright blue Lee 141 113-115 Apricot Lee 147 116-118 Bright rose Lee 148 119-121 Pale gold Lee 152 122-124 Pink Lee 157 125-127 Deep orange Lee 158 128-130 Bastard amber Lee 162 131-133 Flame red Lee 164...

  • Page 30: Channels (Rgb Pro Mode)

    TF-260C7 Fresnel Channel 7 – Control mode (Hold DMX value for at least 3 sec. before the function takes effect) No function 8-15 Dimmer curve 1: Linear 16-23 Dimmer curve 2: Gamma 2.0 24-31 Dimmer curve 3: Gamma 2.2 32-39...
  • Page 31 TF-260C7 Fresnel 229-254 6000K-8000K 8000K Channel 5 – Red Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255 0-255 Gradual adjustment Red from 0-100% Channel 6 – Green Dimmer Coarse (CH1 must be set between 1-255 and CH3 between 6-255...
  • Page 32 TF-260C7 Fresnel 131-133 Flame red Lee 164 134-136 Daylight blue Lee 165 137-139 Lilac tint Lee 169 140-142 Deep lavender Lee 170 143-145 Lagoon blue Lee 172 146-148 Chrome orange Lee 179 149-151 Dark lavender Lee 180 152-154 Congo blue...

  • Page 33: Channels (Cmy Pro Mode)

    TF-260C7 Fresnel 112-119 PWM speed: 1,2 kHz 120-127 PWM speed: 1,3 kHz 128-135 PWM speed: 1,4 kHz 136-143 PWM speed: 1,5 kHz 144-151 PWM speed: 1,6 kHz 152-159 Calibration disabled 160-167 Calibration enabled 168-175 Fan mode: silent 176-183 Fan mode: auto...
  • Page 34 TF-260C7 Fresnel Channel 8 – Color wheel (CH1 must be set between 1-255 and CH3 between 6-255 No function 8-10 Medium bastard amber Lee 004 11-13 Fire Lee 019 14-16 Bright red Lee 026 17-19 Lavender Lee 058 20-22 Sky blue...
  • Page 35 TF-260C7 Fresnel 167-169 Full CT orange Lee 204 170-172 Half CT orange Lee 205 173-175 Quarter CT orange Lee 206 176-178 Filter minus green Lee 247 179-181 Half minus green Lee 248 182-184 Three quarter CT blue Lee 281 185-187...

  • Page 36: Channels (Hsi Pro Mode)

    TF-260C7 Fresnel 208-215 CCT mode: High CRI 216-223 CCT mode: High Output 224-249 No function Reset all 251-255 No function 11 Channels (HSI Pro Mode) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Dimmer Fine...
  • Page 37 TF-260C7 Fresnel 26-28 Lime green Lee 088 29-31 Dark yellow green Lee 090 32-34 Spring green Lee 100 35-37 Yellow Lee 101 38-40 Light amber Lee 102 41-43 Straw Lee 103 44-46 Deep amber Lee 104 47-49 Orange Lee 105...
  • Page 38 TF-260C7 Fresnel 197-199 Vanity fair Lee 793 200-255 Reserved Channel 9 – Color wheel crossfade time wheel (CH8 must be set between 7-255 0,1 sec. crossfade 0,2 sec. crossfade 0,3 sec. crossfade        ...

  • Page 39: Channels (Raw Mode)

    TF-260C7 Fresnel 21 Channels (RAW Mode) Channel 1 – Dimmer Coarse 0-255 Dimmer intensity, from dark to brightest 0-100% Channel 2 – Dimmer Fine 0-255 Dimmer fine intensity, from dark to brightest 0-100% Channel 3 – Shutter/Strobe Closed 6-249 Strobe frequency, from low to high frequency...
  • Page 40 TF-260C7 Fresnel Channel 17 – Deep Blue Dimmer Fine (CH2 must be set between 1-255, CH3 between 6-255 0-255 Gradual adjustment Deep Blue fine from 0-100% Channel 18 – Color wheel (CH1 must be set between 1-255 and CH3 between 6-255...
  • Page 41 TF-260C7 Fresnel 158-160 Full CT blue Lee 201 161-163 Half CT blue Lee 202 164-166 Quarter CT Blue Lee 203 167-169 Full CT orange Lee 204 170-172 Half CT orange Lee 205 173-175 Quarter CT orange Lee 206 176-178 Filter minus green...
  • Page 42 TF-260C7 Fresnel 184-191 Fan mode: full 192-199 Graphic display: auto off 200-207 Graphic display: on 208-215 CCT mode: High CRI 216-223 CCT mode: High Output 224-249 No function Reset all 251-255 No function Ordercode: 200203...

  • Page 43: Maintenance

    05) If all of the above appears to be O.K., plug the unit in again. 06) If you are unable to determine the cause of the problem, do not open the Infinity Fresnel, as this may damage the unit and the warranty will become void.
  • Page 44 Check if power is switched on and fixtures do not cables are plugged in function at all Internal fuse blown ● Return the Infinity to your Infinity dealer Fixtures reset The controller is not connected ● Connect controller correctly, but all 3-pin/5-pin XLR Out of the ●...

  • Page 45: Product Specifications

    TF-260C7 Fresnel Product Specifications Model: Infinity TF-260C7 Fresnel Input Voltage: 100-240V AC, 50/60Hz Power consumption: 280W Power factor: 0,97 DMX linking: 30pcs Dimensions: 474 x 322 x 457 mm (LxWxH) (incl. bracket) Weight: 8,66 kg Operating and Programming: Signal pin OUT:...

  • Page 46: Dimensions

    TF-260C7 Fresnel Dimensions Ordercode: 200203...

  • Page 47: Notes

    TF-260C7 Fresnel Notes Ordercode: 200203...
  • Page 48 ©2019 Infinity...
