5. Hardware
5.1. Mounting
IMPORTANT
Before mounting, please ensure that the chosen installation place preserves the gateway from direct
solar radiation, water, high relative humidity, or dust.
NOTE
Mount the gateway on a wall or over a DIN rail. DIN rail mounting inside a grounded metallic cabinet
is recommended.
IMPORTANT
Ensure the gateway has sufficient clearances for all connections when mounted. See
Dimensions (page

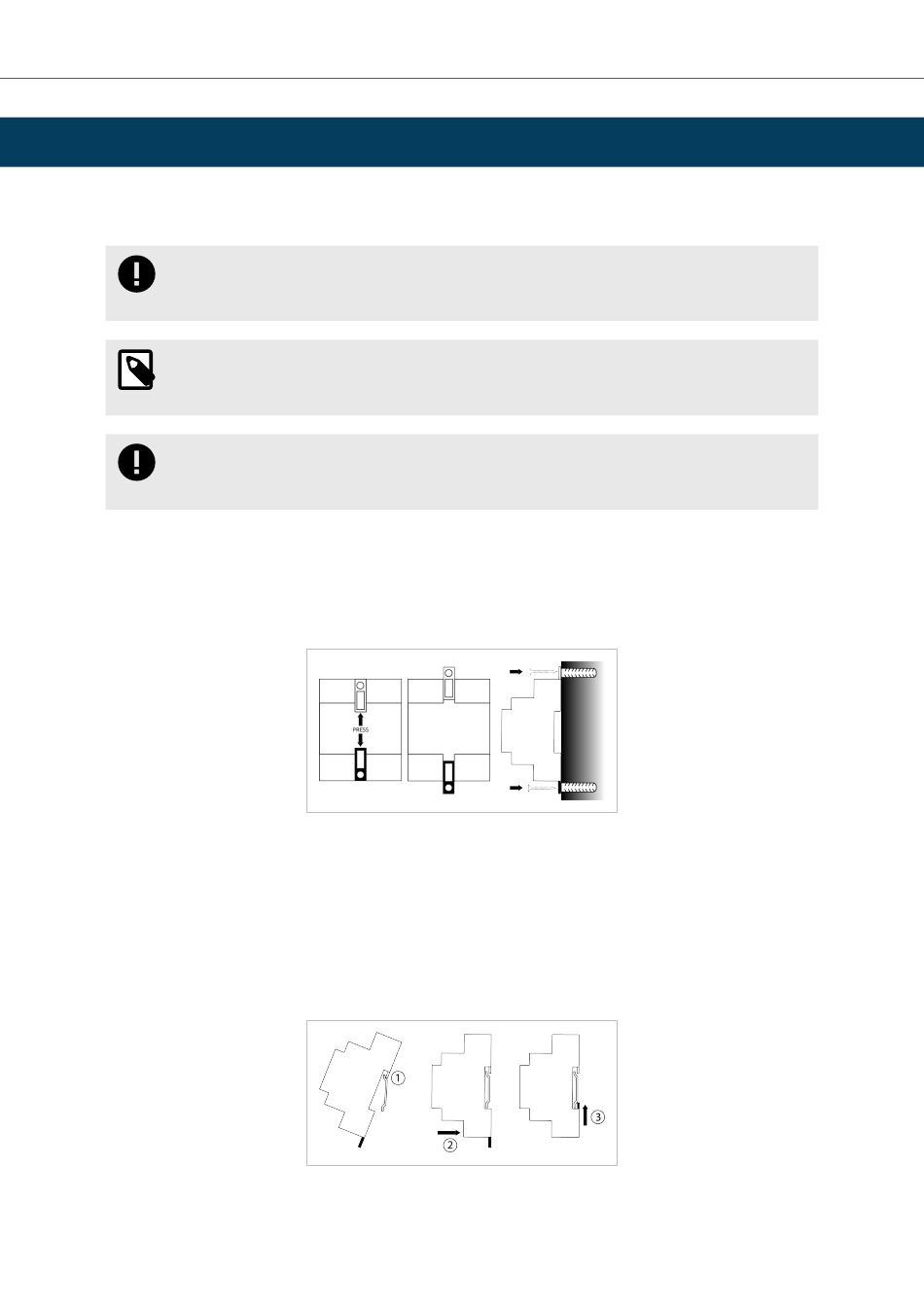

Wall mount
1.
Press the rear panel clips until you hear a click.
2.
Use the clip holes to screw the gateway to the wall.
3.
Make sure the gateway is firmly fixed.
DIN rail Mount
Keep the top side clip in its original position.
1.
Insert the gateway in the upper edge of the DIN rail.
2.
Fit the low side of the gateway in the DIN rail.
3.
Push the bottom clip back to its original position, locking the gateway to the rail.
4.
Make sure the gateway is firmly fixed.
