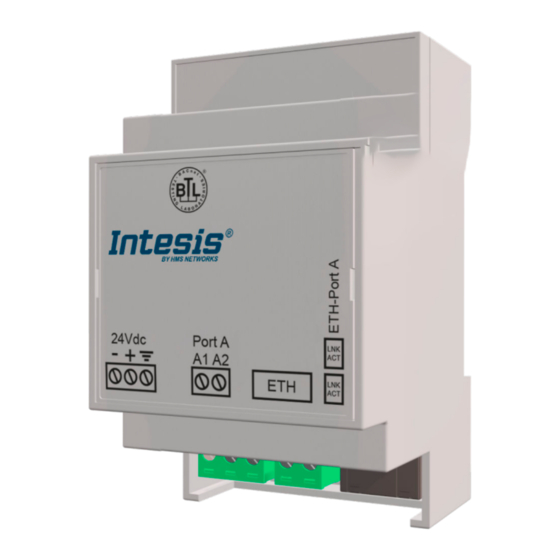

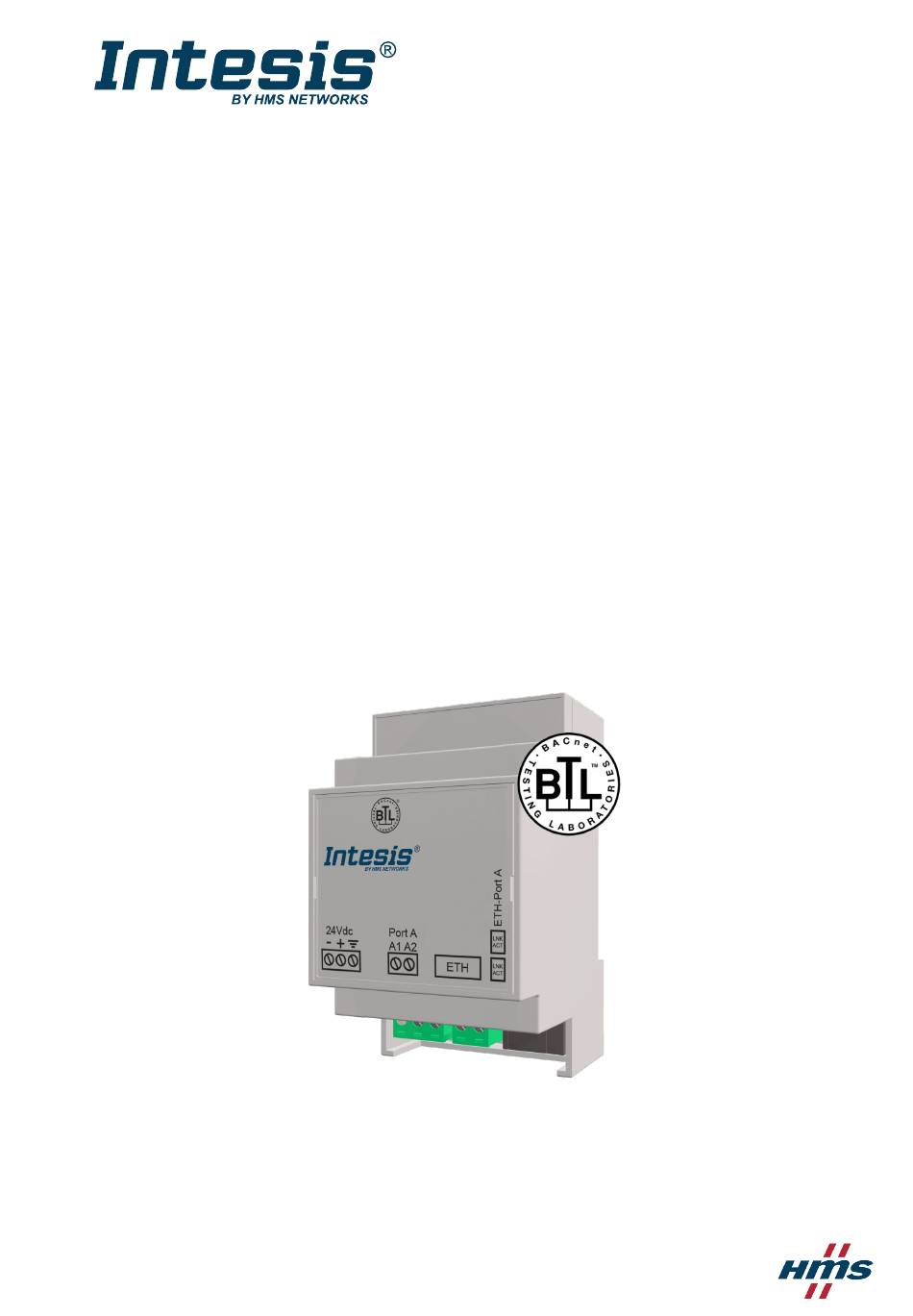

- Page 1 ENGLISH M-BUS to BACnet/IP Server Gateway USER MANUAL Version 1.0.0 Publication date 2023-06-08...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: Table Of Contents
M-BUS to BACnet/IP Server Gateway Table of Contents 1. Description and Order Codes ..................... 1 2. Gateway Capacity ........................2 3. General Information ........................ 3 3.1. Intended Use of the User Manual ..................3 3.2. General Safety Information ....................3 3.3. -
Page 4: Description And Order Codes
Description and Order Codes M-BUS to BACnet/IP Server Gateway 1. Description and Order Codes INBACMEBxxx0100 Protocol Translator Gateway M-Bus to BACnet/IP Server Gateway ORDER CODE LEGACY ORDER CODE INBACMEB0200100 IBBACMEB0200100 INBACMEB0500100 IBBACMEB0500100 NOTICE The order code may vary depending on the product seller and the buyer's location. USER MANUAL Version 1.0.0 Page 1 of 22... -
Page 5: Gateway Capacity
M-BUS to BACnet/IP Server Gateway Gateway Capacity 2. Gateway Capacity Element INBACMEB0200100 INBACMEB0500100 Notes Type of BACnet devices Communication with BACnet/IP. Maximum number of points that can be defined in the virtual Number of BACnet objects 1250 BACnet device inside the gateway. Number of BACnet subscription Maximum number of BACnet subscription (COV) requests 1000... -
Page 6: General Information
General Information M-BUS to BACnet/IP Server Gateway 3. General Information 3.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation. The contents of this manual should be brought to the attention of any person who installs, configures, or operates this gateway or any associated equipment. - Page 7 M-BUS to BACnet/IP Server Gateway Admonition Messages and Symbols NOTE Additional information which may facilitate installation and/or operation. Helpful advice and suggestions. NOTICE Remarkable Information. Page 4 of 22 USER MANUAL Version 1.0.0...
-
Page 8: Overview
Overview M-BUS to BACnet/IP Server Gateway 4. Overview ® This Intesis gateway allows to integrate M-Bus devices into BACnet/IP systems easily. The aim of this integration is to make M-Bus devices accessible from a BACnet control system or device to get the same behavior as if the M-Bus device was part of the BACnet installation. -
Page 9: Gateway General Functionality
M-BUS to BACnet/IP Server Gateway Gateway General Functionality 4.3. Gateway General Functionality This gateway acts as a server on its BACnet side and as a master on its M-Bus interface, thus allowing the integration of M-Bus devices into a BACnet system. The gateway is continuously polling the devices (together or individually), storing in its memory the current status of every signal you want to track, and serving this data to the installation when requested. -
Page 10: Hardware
Hardware M-BUS to BACnet/IP Server Gateway 5. Hardware 5.1. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. NOTE Mount the gateway on a wall or over a DIN rail. DIN rail mounting inside a grounded metallic cabinet is recommended. -
Page 11: Connection
M-BUS to BACnet/IP Server Gateway Connection 5.2. Connection CAUTION Disconnect all systems from the power source before manipulating and connecting them to the gateway. IMPORTANT Keep communication cables away from power and ground wires. 5.2.1. Gateway Connectors Figure 2. General view of all gateway connectors 1. - Page 12 Connection M-BUS to BACnet/IP Server Gateway IMPORTANT Use solid or stranded wires (twisted or with ferrule). Wire cross-section/gauge for all wire connectors: • 1 core: 0.5 to 2.5 mm (24 to 11 AWG). • 2 cores: 0.5 to 1.5mm (24 to 15 AWG). •...
-
Page 13: Common Connections
M-BUS to BACnet/IP Server Gateway Connection 5.2.2. Common Connections 5.2.2.1. Connecting the Gateway to the Power Supply The power supply connector is a green pluggable terminal block (3 poles) labeled as 24Vdc. IMPORTANT • Use SELV-rated NEC class 2 or limited power source (LPS) power supply. •... -
Page 14: Connection Procedure For Bacnet/Ip
Connection M-BUS to BACnet/IP Server Gateway 5.2.4. Connection Procedure for BACnet/IP NOTE Remember to check the Common Connections (page 10). • Connect the BACnet/IP Ethernet cable to the gateway's Ethernet Port. The correct cable to use depends on where the gateway is connected: –... -
Page 15: Technical Specifications
M-BUS to BACnet/IP Server Gateway Technical Specifications 5.3. Technical Specifications Plastic, type PC (UL 94 V-0) Net dimensions (dxwxh): 93x53x58 mm / 3.6x2.1x2.3" Case Recommended space for installation (dxwxh): 100x60x70 mm / 3.9x2.4x2.7" Color: Light Grey. RAL 7035 Wall Mounting DIN rail EN60715 TH35 Per terminal: solid wires or stranded wires (twisted or with ferrule) Wire cross-section/gauge:... -
Page 16: Dimensions
Dimensions M-BUS to BACnet/IP Server Gateway 5.4. Dimensions • Net dimensions (DxWxH) Millimeters: 93 x 53 x 58 mm Inches: 3.6 x 2.1 x 2.3" • Clear space for installation (DxWxH) Millimeters: 100 x 60 x 70 mm Inches: 3.9 x 2.4 x 2.7" USER MANUAL Version 1.0.0 Page 13 of 22... -
Page 17: M-Bus System
M-BUS to BACnet/IP Server Gateway M-Bus System 6. M-Bus System 6.1. General Description The M-Bus ("Meter-Bus") is a European standard for remote reading of heat meters, and it is also usable for all other types of consumption meters, as well as for various sensors and actuators. M-Bus standards are: •... -
Page 18: Bacnet System
BACnet System M-BUS to BACnet/IP Server Gateway 7. BACnet System 7.1. General Description BACnet is a solid standard with many detailed concepts, but for this manual purposes, we will focus on the two most fundamental concepts: • BACnet client, which is the device that sends service requests to the server. •... -
Page 19: Bacnet Server
M-BUS to BACnet/IP Server Gateway BACnet Server 7.2. BACnet Server 7.2.1. Description NOTICE When the Intesis gateway acts as a server device, it is classified under the device profile of a BACnet Advanced Application Controller (B-AAC). For further details, check out the product website for the BACnet client PIC statements. -
Page 20: Bacnet/Ip
BACnet Server M-BUS to BACnet/IP Server Gateway 7.2.2. BACnet/IP The UDP communication port is the main setup parameter for BACnet/IP, besides basic IP settings (IP, netmask, default gateway). The Intesis gateway uses the 47808 (0xBAC0) port by default, which you can change through the configuration tool. -
Page 21: Setup Process With The Configuration Tool
Setup Process with the Configuration Tool 8. Setup Process with the Configuration Tool 8.1. Prerequisites For this integration, you need: • The items delivered by HMS Networks: – The Intesis INBACMEBxxx0100 Protocol Translator Gateway. – Link to download the configuration tool. -
Page 22: Create A New Project From A Template
Intesis MAPS Configuration and Monitoring Tool M-BUS to BACnet/IP Server Gateway 8.2.2. Create a New Project from a Template Open Intesis MAPS. Click Create New Project in the Getting started menu on the left. You can create a project from scratch using a template. To find the appropriate template, filter the search •... -
Page 23: Main Menu Overview
M-BUS to BACnet/IP Server Gateway Intesis MAPS Configuration and Monitoring Tool 8.2.3. Main Menu Overview Figure 4. Intesis MAPS main menu The following sections provide an overview of the five tabs that compose the Intesis MAPS main menu. It is through these options that you will configure both the gateway and your project, and monitor that everything works fine using the Diagnostic tab. -
Page 24: Signals Tab
Intesis MAPS Configuration and Monitoring Tool M-BUS to BACnet/IP Server Gateway 8.2.6. Signals Tab All available objects, object instances, their corresponding BACnet object, and other main parameters are listed in the Signals tab. More information on each parameter and how to configure it can be found in the Intesis MAPS user manual. -
Page 25: Diagnostic Tab
M-BUS to BACnet/IP Server Gateway Intesis MAPS Configuration and Monitoring Tool 8.2.8. Diagnostic Tab IMPORTANT Connection with the gateway is required to use the diagnostic tools. Figure 8. Diagnostic tab window. Find the ToolBox between the upper tabs bar and the Console view. Below it, from left to right: Console viewer, Protocol viewers (one above the other), and the Signals viewer This section has two main parts: ToolBox:...
