M-BUS to BACnet/IP Server Gateway

5.2. Connection

CAUTION
Disconnect all systems from the power source before manipulating and connecting them to the
gateway.
IMPORTANT
Keep communication cables away from power and ground wires.

5.2.1. Gateway Connectors

1. Power supply: 24 VDC, Max.: 220 mA, 5.2 W
2. Port A: M-Bus port, for M-Bus bus connection
3. Ethernet Port: For BACnet/IP connection
Port A connectors
A1
A2
NOTE
You can also use the Ethernet Port to connect the gateway to the PC for configuration purposes.
NOTE
Mount the gateway in the desired installation site before wiring.
Page 8 of 22

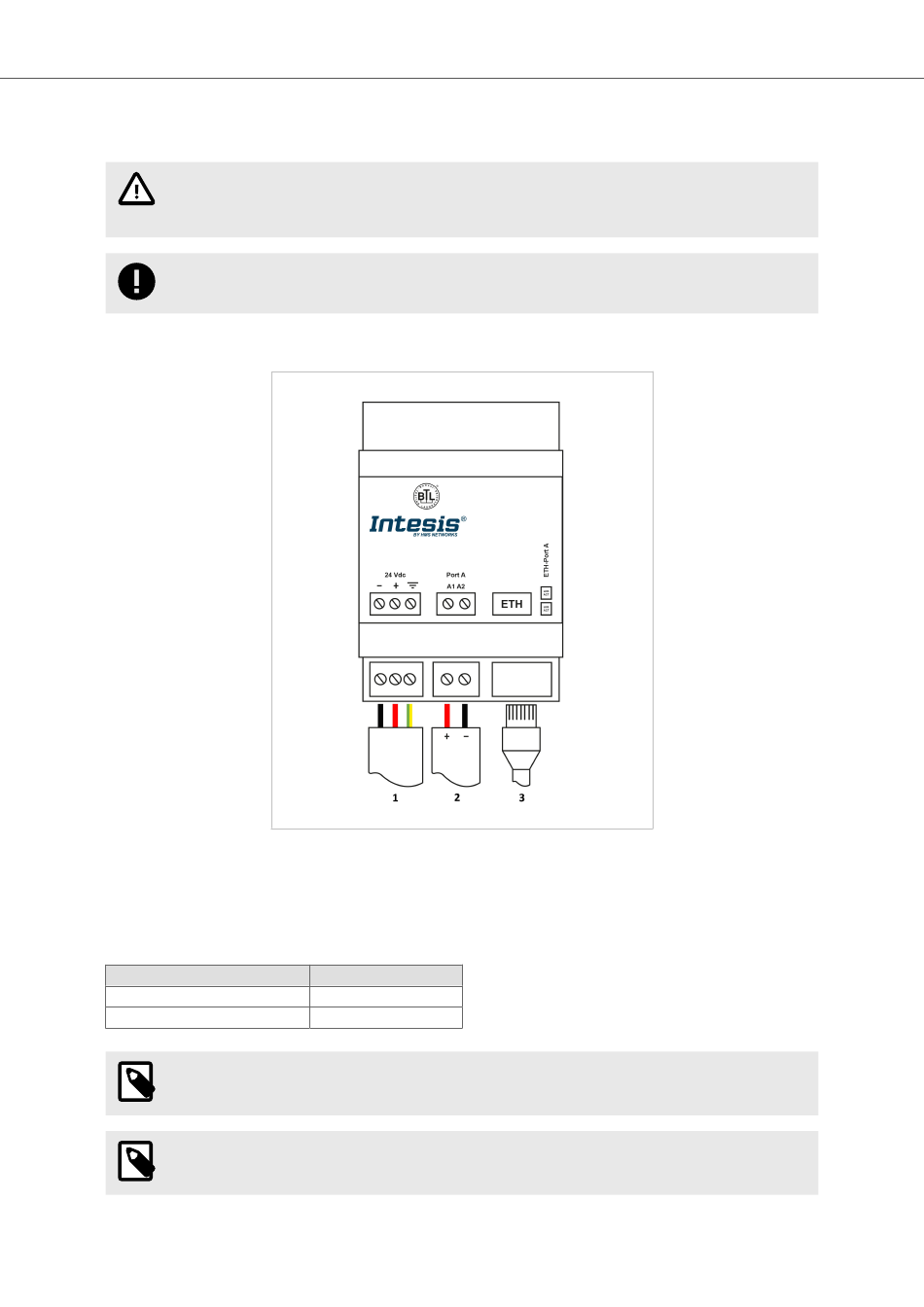

Figure 2. General view of all gateway connectors
M-Bus wires
+
-
Connection
USER MANUAL Version 1.0.0
