HMS Networks Intesis INBACRTR0320000 Installation Manual

Installation Guide for the INBACRTR0320000 Gateway
The order code may vary depending on the product seller and the buyer's location.
Version 1.0.0
Owner's record
Find the serial number on the silver label on the right side of the gateway. For sales or technical
assistance, we recommend writing it in the space below:
SN:
Safety Information
Follow these instructions carefully. Improper work may seriously harm your
health and damage the gateway and/or any other equipment connected to it.
Only technical personnel, following these instructions and the country legislation for installing
electric equipment, can install and manipulate this gateway.
Install this gateway indoors, in a restricted access location, avoiding exposure to direct solar
radiation, water, high relative humidity, or dust.
All wires for communication and power supply (if needed) must only be connected to networks
without routing to the outside plant. All communication ports are considered for indoor use and
must only be connected to SELV circuits.
Mount the gateway, preferably, on a DIN rail inside a grounded metal cabinet following the
instructions below.
In the case of wall mounting, firmly fix the gateway on a non-vibrating surface following the
instructions below.
Disconnect power wires before manipulating and connecting them to the gateway.
Use SELV-rated NEC class 2 or limited power source (LPS) power supply.
Use a circuit-breaker before the power supply. Rating 250 V, 6 A.
Supply the correct voltage to power the gateway. See the Technical Specifications table at the end
of this document.
Respect the expected polarity of power (if needed) and communication cables when connecting
them to the gateway.
This gateway is designed for installation inside an enclosure. When working inside an enclosure
(ex. to make adjustments, set switches, etc.), observe the common antistatic precautions before
manipulating the gateway.
Take precautions when installing it outside an enclosure to avoid electrostatic discharges.
These safety instructions in other languages can be found here.
Mounting
Mount the gateway over a wall or over a DIN rail.
DIN rail mounting inside a grounded metallic cabinet is recommended.
Wall mounting
1. Press the rear panel clips outwards until you hear a click.
2. Use the clip holes to screw the gateway to the wall.
3. Make sure the gateway is firmly fixed.
DIN rail mounting
Keep the clips in its original position.
1. Fit the gateway's top-side clip in the upper edge of the DIN rail.
2. Press the low side of the gateway gently to lock it in the DIN rail.
3. Make sure the gateway is firmly fixed.
For some DIN rails, to complete step 2, you may need a small screwdriver or
similar to pull the bottom clip down.

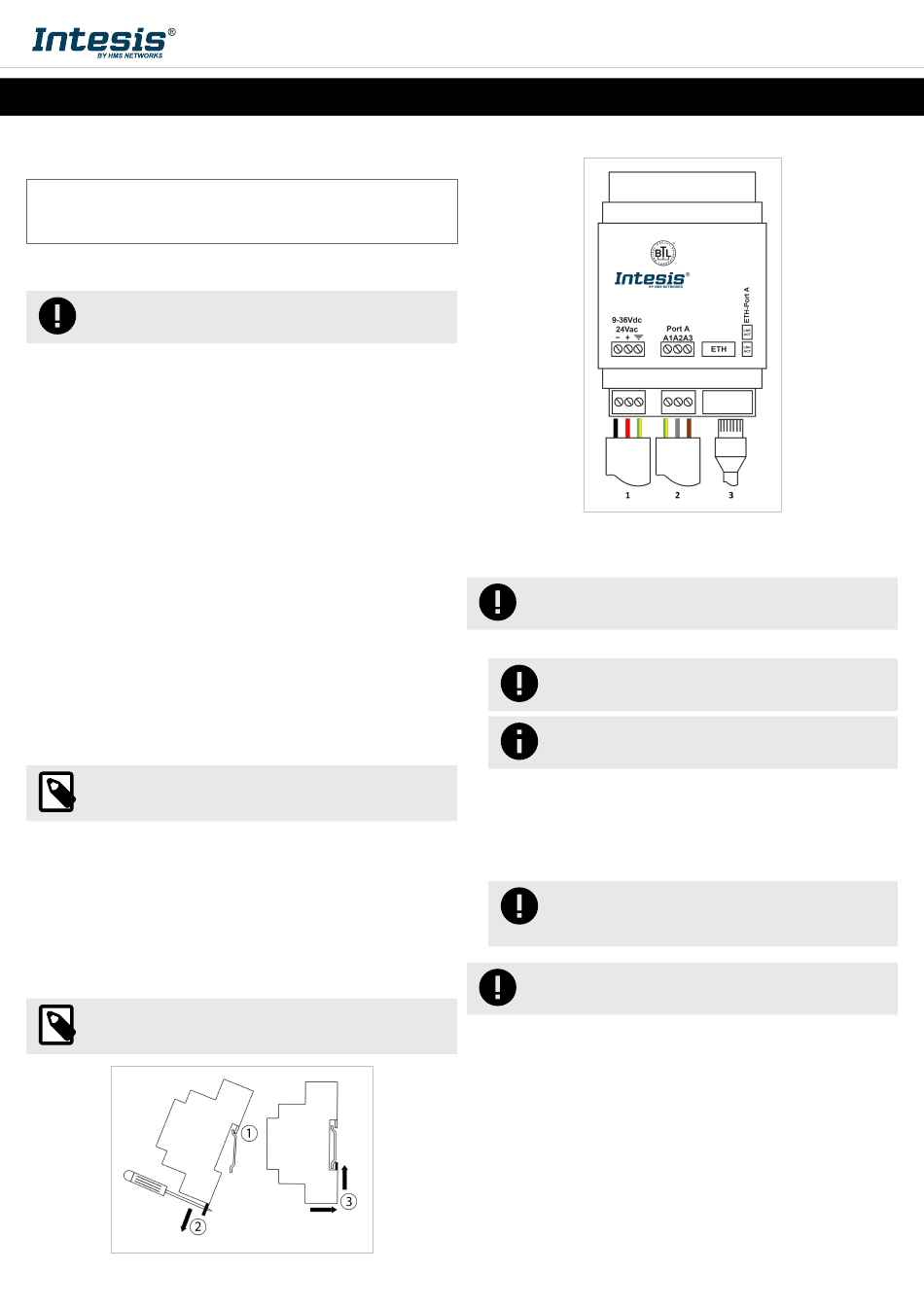

Wiring
1 Power Supply
9-36 VDC / 24 VAC
1. Connect the BACnet MS/TP bus to the EIA-485 port of the gateway.
2. Connect the BACnet/IP cable to the ETH port of the gateway.
• Use an Ethernet CAT5 or higher cable.
• If using the building LAN, contact the network administrator and make sure traffic is
allowed through all the LAN path.
• When starting up the gateway for the first time, DHCP will be enabled for 30 seconds.
After that time, the default IP 192.168.100.246 will be set.
3. Connect the power supply to the gateway's port marked as 1 in the figure above.
Configuration
Use the Intesis MAPS configuration tool to configure the gateway.
1. See instructions on how to download and install the latest version at:
networks.com/software-and-tools/intesis-maps.
2. Refer to the
process.
© HMS Industrial Networks SLU | www.hms-networks.com
Installation Guide | Publication date: 2025-02-05
2 Port A
BACnet MS/TP
Disconnect all systems from power before wiring the gateway.
Observe polarity: A1: ground connection, A2: negative, A3: positive.
Standard EIA-485 bus requirements: maximum distance of 1200 meters
(4000 ft); up to 32 devices connected; a 120 Ω resistor at each end of the
bus is needed (See the DIP switch section).
• Use a SELV rated NEC class 2 or limited power source (LPS) power supply.
• The voltage you apply must be within the admitted range. Ensure
to supply enough power. Consult all requirements in the Technical
Specifications table.
Keep communication cables away from power and ground wires.
Intesis MAPS User Manual for a detailed description of the configuration
3 Ethernet
BACnet/IP and console
https://www.hms-
