MEITRACK P99G/P99L User Guide
MEITRACK P99G/P99L User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P99L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MeiTrack P99L

Summary of Contents for MeiTrack P99L

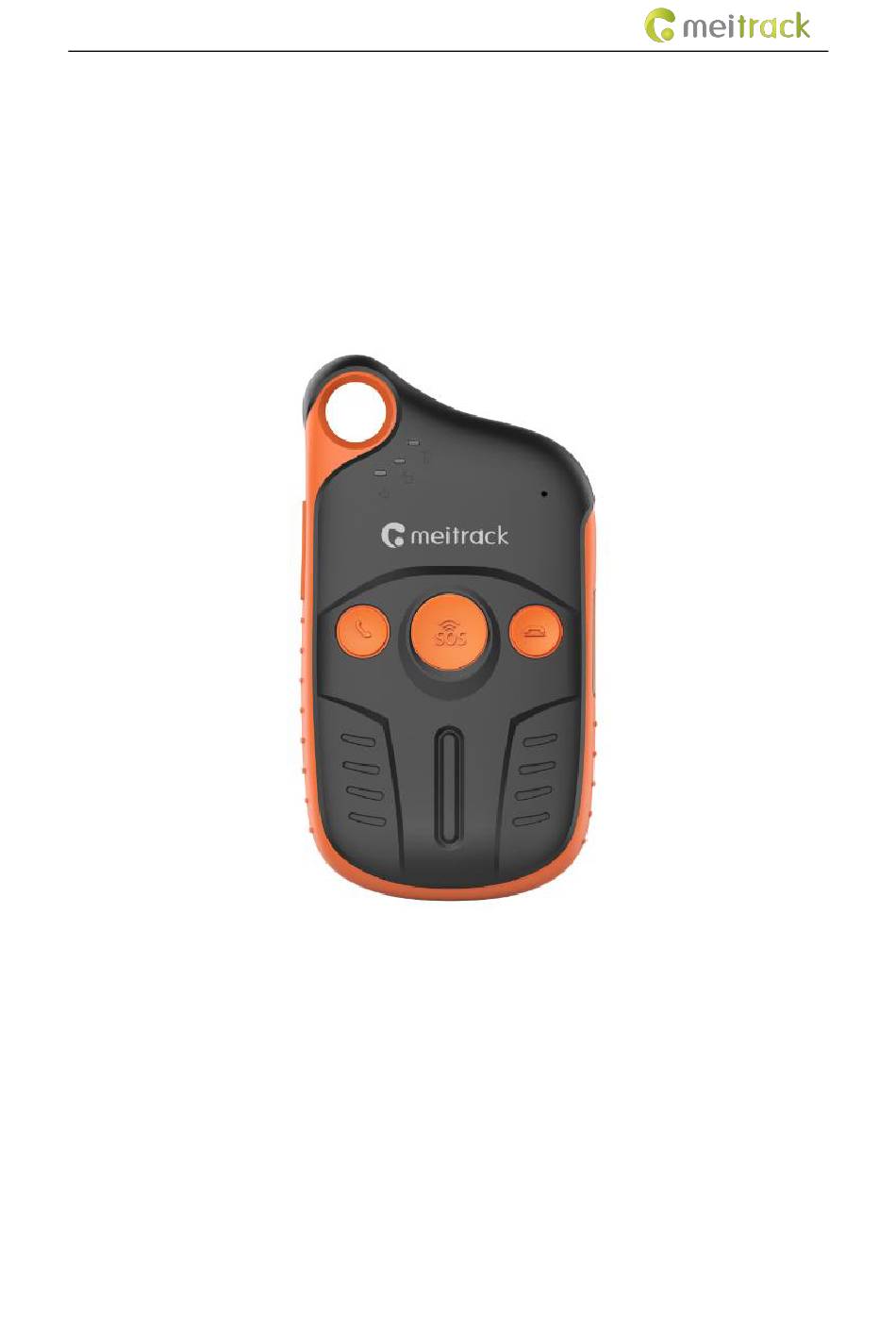

  • Page 1 MEITRACK P99G/P99L User Guide MEITRACK P99G/P99L User Guide...
  • Page 2 MEITRACK P99G/P99L User Guide Change History File Name MEITRACK P99G/P99L User Guide Project P99G/P99L Creation Date 2019-03-26 Update Date 2020-10-28 Subproject User Guide Total Pages Version V1.1 Confidential External Documentation Copyright © 2020 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    7.11 Disabling the Power-off Function of the Power Button – C77 ..............- 18 - 7.12 Backing up Device Parameters – F10 ......................- 18 - 8 Configuring Device Parameters by Meitrack Manager .................... - 18 - 9 Logging In to MS03 Tracking System ........................- 19 - 10 Tracking by App ..............................
  • Page 4 MEITRACK P99G/P99L User Guide 12 Safety and Usage Instructions ..........................- 23 - 13 Battery Disposal ..............................- 23 - Copyright © 2020 Meitrack Group All rights reserved. - 4 -...

  • Page 5: Copyright And Disclaimer

    2 Product Overview The P99G/P99L is a personal tracking device and is specially designed for sports lovers and lone workers both indoors and outdoors. It has the following features: ⚫...

  • Page 6: Power-Saving Mode

    Set the deep sleep mode by Meitrack Manager or A73 command. Set the heartbeat packet reporting interval by Meitrack Manager or A11 command. Use Meitrack Manager or A83 command to set the maximum working time of the GPS module woken up by heartbeat packet.

  • Page 7: Automatic Apn Settings

    Note: If you install a SIM card and the device cannot connect the network for a long time, maybe your SIM card is provided by a new operator or the device does not store the APN settings. You can use Meitrack Manager or A81 command to set APN parameters again.

  • Page 8: Product Functions And Specifications

    Wireless charging (optional) ⚫ Device parameter backup 3.2 Specifications Item Specifications Dimension 18 mm x 108 mm x 52 mm Weight 106g Frequency band P99G: GSM：850/900/1800/1900MHz UTMS：800/850/900/1900/2100MHz P99L-E： 2G GSM:B3(1800)/B8(900) Copyright © 2020 Meitrack Group All rights reserved. - 8 -...

  • Page 9: P99G/P99L And Accessories

    ⚫ P99G/P99L tracker ⚫ Magnetic charging cable ⚫ Travel adapter ⚫ MEITRACK P99G/P99L Quick Start Guide ⚫ Wireless charging base (optional) ⚫ Hanging buckle (optional) ⚫ CD download card Copyright © 2020 Meitrack Group All rights reserved. - 9 -...

  • Page 10: About The P99G/P99L

    Blink (0.1 seconds on and 2.9 seconds A WiFi hotspot is available. (blue) off); 2 times Blink (1 second on and 1 second off); The WiFi positioning function is disabled or no Copyright © 2020 Meitrack Group All rights reserved. - 10 -...

  • Page 11: First Use

    It will take about 2.5 hours to charge the device. Note: If you plug the magnetic charging cable into a computer, it will take about 6.5 hours to charge the device. Copyright © 2020 Meitrack Group All rights reserved. - 11 -...

  • Page 12: Wireless Charging

    Note: Ensure that the rubber cover is properly closed, so as to prevent water from entering the device. Please read the following instructions to know more about its functions. 7 Quick Operation Command Before use, common parameters must be set by SMS command or Meitrack Manager. Copyright © 2020 Meitrack Group All rights reserved. - 12 -...

  • Page 13: Tracking By Mobile Phone

    This is a map link. None aps?f=q&hl=en&q=22.5401 Latitude: 22.540103 03,114.082329 Longitude: 114.082329 If there is no valid GPS available, the tracker will reply to the most recent valid position. Copyright © 2020 Meitrack Group All rights reserved. - 13 -...

  • Page 14: Setting The Man Down Alert - A29

    Tip: "," should be an English comma and no space exists before and after the comma. ⚫ The P99G/P99L will automatically reply to the SMS: IMEI,A71,OK. It indiates that the SOS phone number is set Copyright © 2020 Meitrack Group All rights reserved.

  • Page 15: Setting Listen-In Phone Numbers - A72

    SMS notification about the location, geo-fence alarm and low power alarm. ⚫ When you press the SOS button, the P99G/P99L will dial three authorized phone numbers in sequence. It will stop dialing when one phone number answers, and then will send alarm information to the phone numbers.

  • Page 16: Setting The Maximum Working Time Of The Woken Gps Module - A83

    SMS text: 0000,A73,Sleep level Send the text to the embedded SIM card phone number. The P99G/P99L automatically replies to the SMS: IMEI,A73,OK. It indicates that the sleep mode is set successfully. ⚫ To enable the GPS Log or scheduled tracking function, disable the sleep mode.

  • Page 17: Setting The Unit Of The Gprs Data Interval - A84

    ⚫ The P99G/P99L automatically replies to the SMS: IMEI,B35,OK. It indicates that the time zone is set successfully. Note: The time zone is in unit of minutes. The default time zone of the tracker is GMT 0, and the time zone of SMS reports is different from that of GPRS/UMTS data packets.

  • Page 18: Disabling The Power-Off Function Of The Power Button - C77

    For details about SMS commands, see the MEITRACK SMS Protocol. Note: The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS command. The device can be configured by SMS command with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS event report.

  • Page 19: Logging In To Ms03 Tracking System

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").

  • Page 20: Wifi Location

    11 WIFI Location What P99G/P99L could do is send all WIFI info that it connects to the platform. So how WIFI location is going to work depends on how the platform parse WIFI info. Normally, WIFI Location performs in two ways：...
  • Page 21 MEITRACK P99G/P99L User Guide After filling the MAC address and User Account info, set the real address in map: Copyright © 2020 Meitrack Group All rights reserved. - 21 -...
  • Page 22 The real address that the user set was “Meitrack_Office_6 _floor_Conference_Room”. After setting the real address, P99G/P99L will show this real address as long as it connects to the corresponding WIFI hotspot: Copyright © 2020 Meitrack Group All rights reserved. - 22 -...
  • Page 23 Incompatible accessories may cause serious injuries or damages to your device. Handle the battery and charger carefully. ⚫ Use batteries specified by Meitrack and chargers exclusively designed for your device. Incompatible batteries and chargers may cause serious injuries or damages to your device. ⚫...
