MEITRACK P99G User Guide
MEITRACK P99G User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P99G and is the answer not in the manual?

Questions and answers

Related Manuals for MeiTrack P99G

Summary of Contents for MeiTrack P99G

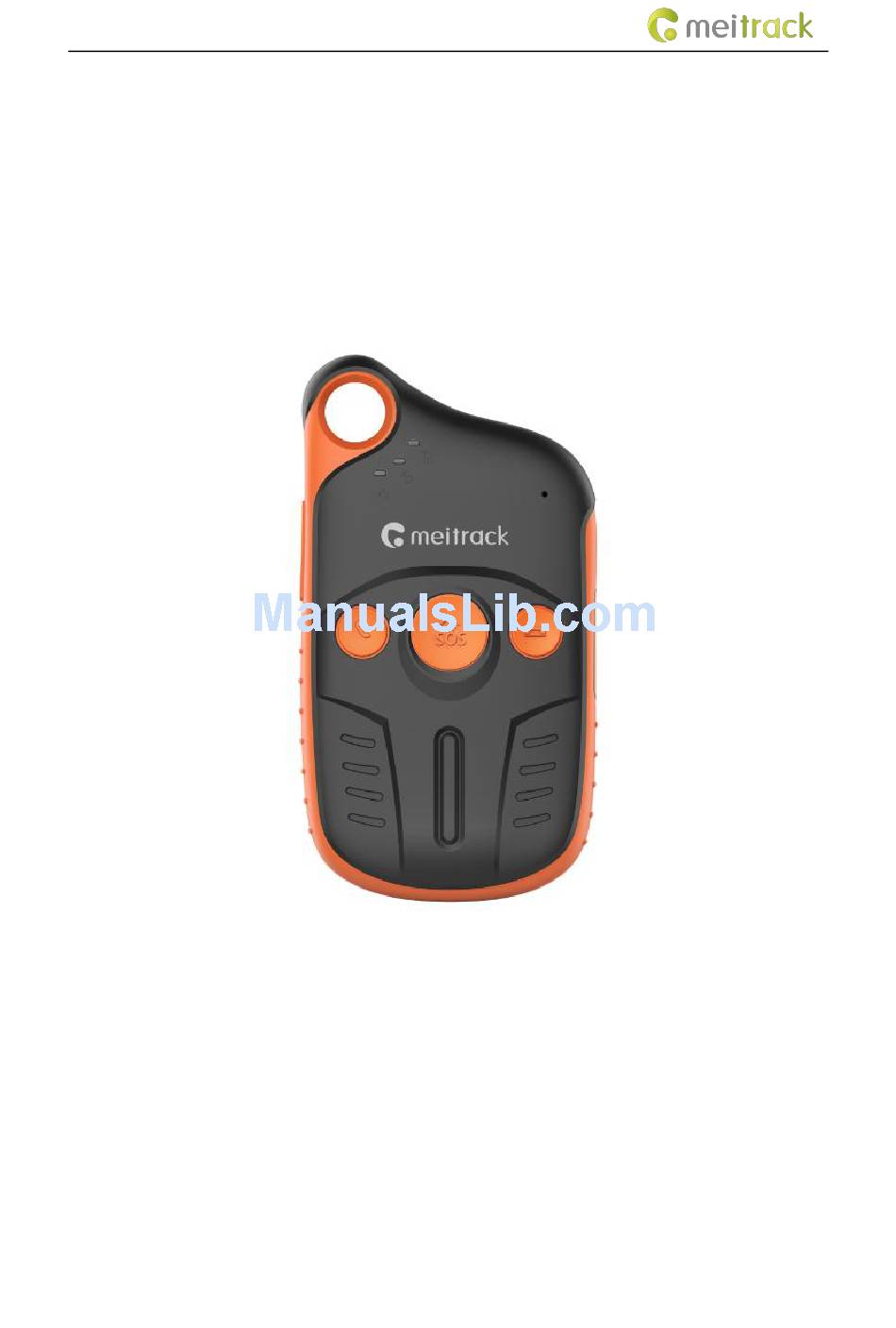

  • Page 1 MEITRACK P99G User Guide MEITRACK P99G User Guide...

  • Page 2: Change History

    Change History File Name MEITRACK P99G User Guide Created By Kyle Lv Project P99G Creation Date 2016-11-03 Update Date 2017-04-27 Subproject User Guide Total Pages Version V1.1 Confidential External Documentation Copyright © 2017 Meitrack Group All rights reserved. - 2 -...

  • Page 3: Table Of Contents

    7.10 Disabling the Power-off Function of the Power Button – C77 ..............- 16 - 7.11 Backing up Device Parameters – F10 ......................- 16 - 8 Configuring Device Parameters by Meitrack Manager .................... - 16 - 9 Logging In to MS03 Tracking System ........................- 17 - 10 Tracking by App ..............................

  • Page 4: Copyright And Disclaimer

    2 Product Overview The P99G is a 3G personal tracking device and is specially designed for sports lovers and lone workers both indoors and outdoors. It has the following features: ...

  • Page 5: Power-Saving Mode

    Set the deep sleep mode by Meitrack Manager or A73 command. Set the heartbeat packet reporting interval by Meitrack Manager or A11 command. Use Meitrack Manager or A83 command to set the maximum working time of the GPS module woken up by heartbeat packet.

  • Page 6: Automatic Apn Settings

    Note: If you install a SIM card and the device cannot connect the network for a long time, maybe your SIM card is provided by a new operator or the device does not store the APN settings. You can use Meitrack Manager or A81 command to set APN parameters again.

  • Page 7: Specifications

    1 SOS button (used for sending SMS/GPRS alarms and calling) 1 power button 2 volume buttons 1 answer button 1 hang-up button 4 P99G and Accessories  P99G tracker Copyright © 2017 Meitrack Group All rights reserved. - 7 -...

  • Page 8: About The P99G

    Indicator Indicator Status Description GPS indicator Blink (every 0.1 seconds) The device is being initialized. (blue) Blink (0.1 seconds on and 2.9 seconds A GPS signal is received. off) Copyright © 2017 Meitrack Group All rights reserved. - 8 -...

  • Page 9: First Use

    Attach one side of the magnetic charging cable to the body of the device, and plug the other side of the magnetic charging cable into the adapter (5 V, 2 A), as shown in the following figures. When the red indicator is steady on, the device is charging. Copyright © 2017 Meitrack Group All rights reserved. - 9 -...

  • Page 10: Wireless Charging

    After charging, press and hold down the power button for 3–5 seconds to turn on your device and start using it Copyright © 2017 Meitrack Group All rights reserved. - 10 -...

  • Page 11: Quick Operation Command

    Please read the following instructions to know more about its functions. 7 Quick Operation Command Before use, common parameters must be set by SMS command or Meitrack Manager. 7.1 Tracking by Mobile Phone This section describes how to query device's current location, ensuring that the GPS is working normally.

  • Page 12: Setting Sos Phone Numbers - A71

    Send the text to the embedded SIM card phone number. Tip: "," should be an English comma and no space exists before and after the comma.  The P99G will automatically reply to the SMS: IMEI,A71,OK. It indiates that the SOS phone number is set successfully. Note: Copyright ©...

  • Page 13: Setting Listen-In Phone Numbers - A72

    SMS notification about the location, geo-fence alarm and low power alarm.  When you press the SOS button, the P99G will dial three authorized phone numbers in sequence. It will stop dialing when one phone number answers, and then will send alarm information to the phone numbers.

  • Page 14: Setting The Maximum Working Time Of The Woken Gps Module - A83

    0000,A73,Sleep level Send the text to the embedded SIM card phone number. The P99G automatically replies to the SMS: IMEI,A73,OK. It indicates that the sleep mode is set successfully.  To enable the GPS Log or scheduled tracking function, disable the sleep mode.

  • Page 15: Setting The Unit Of The Gprs Data Interval - A84

     The P99G automatically replies to the SMS: IMEI,B35,OK. It indicates that the time zone is set successfully. Note: The time zone is in unit of minutes. The default time zone of the tracker is GMT 0, and the time zone of SMS reports is different from that of GPRS/UMTS data packets.

  • Page 16: Disabling The Power-Off Function Of The Power Button - C77

    For details about SMS commands, see the MEITRACK SMS Protocol. Note: The default SMS command password is 0000. You can change the password by using Meitrack Manager and SMS command. The device can be configured by SMS command with a correct password. After an authorized phone number is set, only the authorized phone number can receive the preset SMS event report.

  • Page 17: Logging In To Ms03 Tracking System

    Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").

  • Page 18: Safety And Usage Instructions

    Incompatible accessories may cause serious injuries or damages to your device. Handle the battery and charger carefully.  Use batteries specified by Meitrack and chargers exclusively designed for your device. Incompatible batteries and chargers may cause serious injuries or damages to your device. ...
