Summary of Contents for MeiTrack P88L

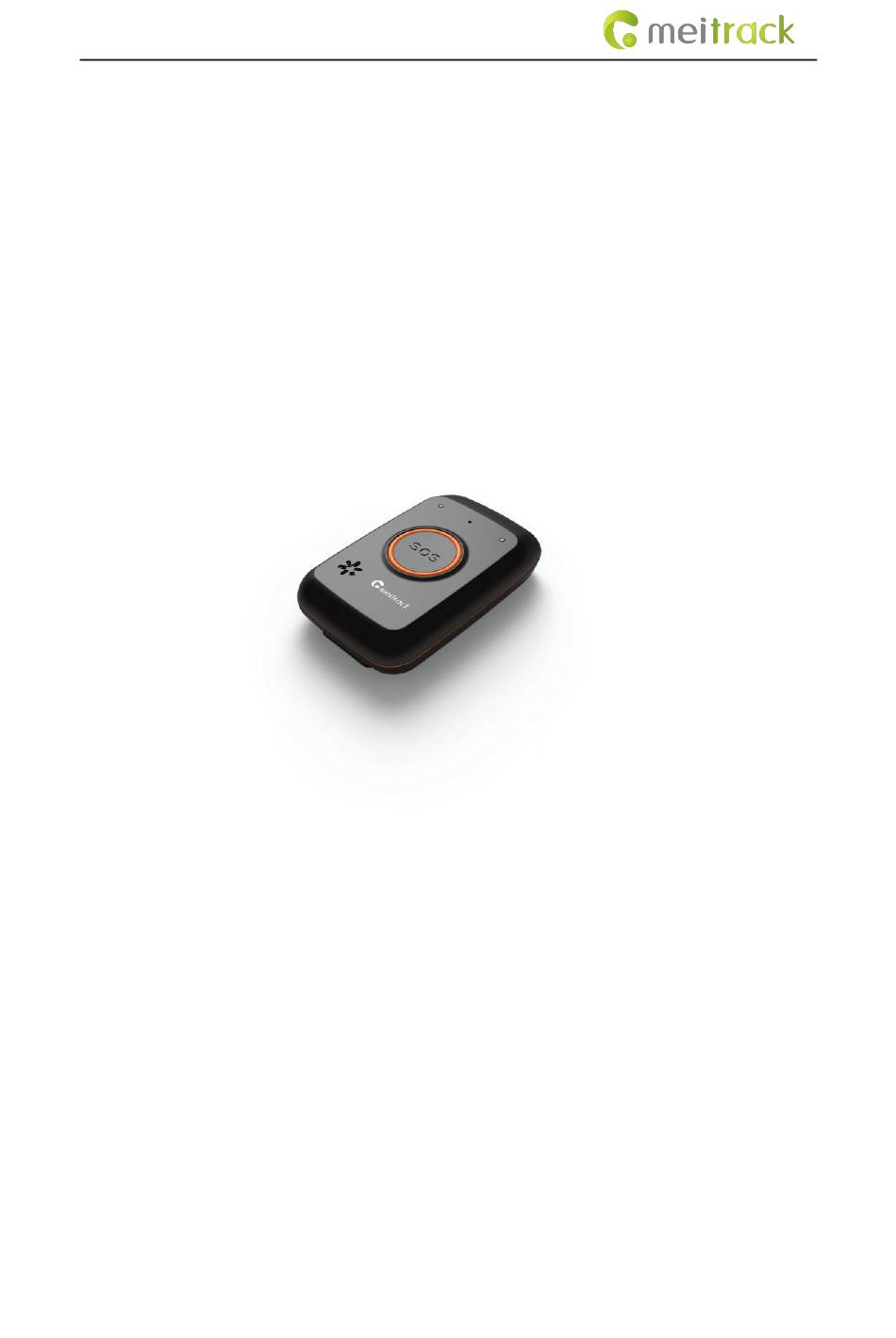

- Page 1 MEITRACK P88L GPS Personal Tracker User Guide MEITRACK P88L GPS Personal Tracker User Guide...
- Page 2 MEITRACK P88L GPS Personal Tracker User Guide Change History File Name MEITRACK P88L GPS Personal Tracker User Guide Project P88L Creation Date 2020-04-05 Subproject User Guide Total Pages Version V1.1 Confidential External Documentation Copyright © 2020 Meitrack Group All rights reserved.
-
Page 3: Table Of Contents
3.3.11 Deep Sleep Mode .................... - 11 - 3.3.12 Smart Working Mode ..................- 12 - 4 Main Device and Accessories ....................- 12 - 5 About the P88L ........................- 13 - 5.1 Appearance ......................... - 13 - 5.2 LED Indicator ....................... - 15 - 6 First Use ........................... -
Page 4: Copyright And Disclaimer
Meitrack Group and its subsidiary. The user manual may be changed without notice. Without prior written consent of Meitrack Group, this user manual, or any part thereof, may not be reproduced for any purpose whatsoever, or transmitted in any form, either electronically or mechanically, including photocopying and recording. -
Page 5: Other Functions
MEITRACK P88L GPS Personal Tracker User Guide Man down alert 3.1.3 Other Functions Configure device parameters by SMS, MS03 platform, Bluetooth or PC Step counting Voice broadcasting Alarm clock Fast magnetic charging Listen-in or two-way calling ... - Page 6 MEITRACK P88L GPS Personal Tracker User Guide Bluetooth (optional) BLE 2.4G. Configure device parameters by Bluetooth. Support the Bluetooth anti-lost function. GPS positioning accuracy 2.5 meters Water-resistance rating IP67 (Withstand being submerged in water for up to 30 minutes in a 1-meter depth) Operating temperature -10°C to 55°C...
- Page 7 SMS Reply 353358017784062,A29,OK On the Meitrack Manager interface, select Fall, set a contact's phone number to receive SMS messages and answer phone calls in case of emergency, enable the alert function, and set the alert buzzing time, alert detection sensitivity and motion judgement time after the alert is generated.
-
Page 8: Data Usage Saving
3.3.3 Alarm Clock Users are allowed to set at most 24 alarm clocks on Meitrack Manager. For example, set an alarm clock for 7:30 am from Monday to Friday. At the preset time point, the device will make sounds and vibrate, and an alarm clock alert will be sent to the server. -
Page 9: Step Counting
MEITRACK P88L GPS Personal Tracker User Guide then enable the vibration and disable the sound. 3.3.5 Step Counting The device records the number of steps a person takes every day and uploads the data to the platform as a reference. At 00:00:00 (SMS time zone), the steps will be cleared automatically. -
Page 10: Wifi Frequent Stop Place (Wifi Version)
Users can use the device to search WiFi hotspots nearby and set frequent stop places on the Meitrack Manager. When the device enters a frequent stop place, it detects where the trip starts and ends and then uploads trip starting and ending events. -
Page 11: Bluetooth Anti-Lost Function (Bluetooth Version)
3.3.10 Bluetooth Anti-lost Function (Bluetooth Version) After the device is bound to a Bluetooth, if the device exits the Bluetooth range, an alert will be sent to the platform. Users can set the Bluetooth anti-lost function on Meitrack Manager. 3.3.11 Deep Sleep Mode The deep sleep mode is applicable for outdoor workers who want to track their location every several hours or one day and have high requirements of long battery life. -
Page 12: Smart Working Mode
MEITRACK P88L GPS Personal Tracker User Guide In this mode, heartbeat packets may be delayed. After the device is woken up, you need to enable the GPS module first, and then a heartbeat packet can be sent. If the GPS positioning time exceeds the preset heartbeat wakeup positioning time and the GPS is still invalid, an invalid heartbeat packet will be sent. -
Page 13: About The P88L
MEITRACK P88L GPS Personal Tracker User Guide 5 About the P88L 5.1 Appearance Item Description GPS LED indicator (blue) Indicates the GPS status. For details, see the section Power LED indicator (red) 5.2"LED Indicator." Copyright © 2020 Meitrack Group All rights reserved. - Page 14 MEITRACK P88L GPS Personal Tracker User Guide WCDMA/GSM LED indicator Indicates the WCDMA/GSM status. For details, see (green) the section 5.2"LED Indicator." SOS button 1. Press and hold down the button for three seconds in case of emergency. Then the device will beep for four times and vibrate to alert users.
-
Page 15: Led Indicator
MEITRACK P88L GPS Personal Tracker User Guide reaches 10% battery power left. 5. In standby mode, press and hold down the button for five seconds. Then the device vibrates once. After the Bluetooth is enabled, the device enters pairing mode. If the Bluetooth fails to be paired... -
Page 16: First Use
ID service. Before using the calling or listen-in function, ensure that this function is supported by the embedded SIM card. If users want to use the calling function of the 4G P88L device, ensure that VoLTE is supported by the embedded SIM card. -
Page 17: Device Configuration
Please read the following instructions to know more about its functions. 7 Device Configuration This chapter describes how to use Meitrack Manager to configure device parameters. For details about Meitrack Manager, see the MEITRACK Manager User Guide. 7.1 Configuring Device Parameters on Your PC Before using Meitrack Manager, install the USB driver and Meitrack Manager. -
Page 18: Configuring Device Parameters On Your Phone
Run Meitrack Manager, then the software will automatically detect the device model, as shown in the following figures. Note: The Meitrack Manager software is included in the CD delivered with the tracker. The software language will be automatically switched according to the language of the operating system. -
Page 19: Logging In To Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Please purchase a login account from your supplier.) For more information about how to add a device, see the MEITRACK MS03 GPS Tracking System User Guide (chapter 4 "Getting Started"). -
Page 20: Battery Disposal
If you have any questions, do not hesitate to email us at info@meitrack.com. Copyright © 2020 Meitrack Group All rights reserved. - 20 -...
