PS Engineering IntelliPAX 11616R Installation And Operation Manual page 12

Appendix C Wiring Information
IntelliPAX Unit has Female Sub-D DB-25
Expansion Power In
Expansion Audio In (R)
Expansion Audio In (L)
Expansion Audio Output
Expansion Ground
Music (L)
Music (R)
Pass 1 & 3 Phones (L) Hi
Pass 1 & 3 Phones (R) Hi
Headphone Lo
Pass 2 & 4 Phones (L) Hi
Pass 2 & 4 Phones (R) Hi
Headphone Lo
Mono Aux input
Pass 1 Mic Audio Hi
Pass 1 Mic Audio Lo
Pass 2 Mic Audio Hi
Pass 2 Mic Audio Lo
Pass 3 Mic Audio Hi
Pass 3 Mic Audio Lo
Pass 4 Mic Audio Hi
Pass 4 Mic Audio Lo
Pass 5 Mic Audio Hi
Pass 5 Mic Audio Lo
Pass 6 Mic Audio Hi
Inhibit Switch 1
Inhibit Switch 2
200-250-0006
1
Expansion Power
2
Audio (R) from Main Unit
15
Audio (L) from Main Unit
3
Audio to Main Unit
14
Expansion Ground
25
13
8
20
9
21
22
16
4
17
5
18
6
19
7
23
11
10
24
12

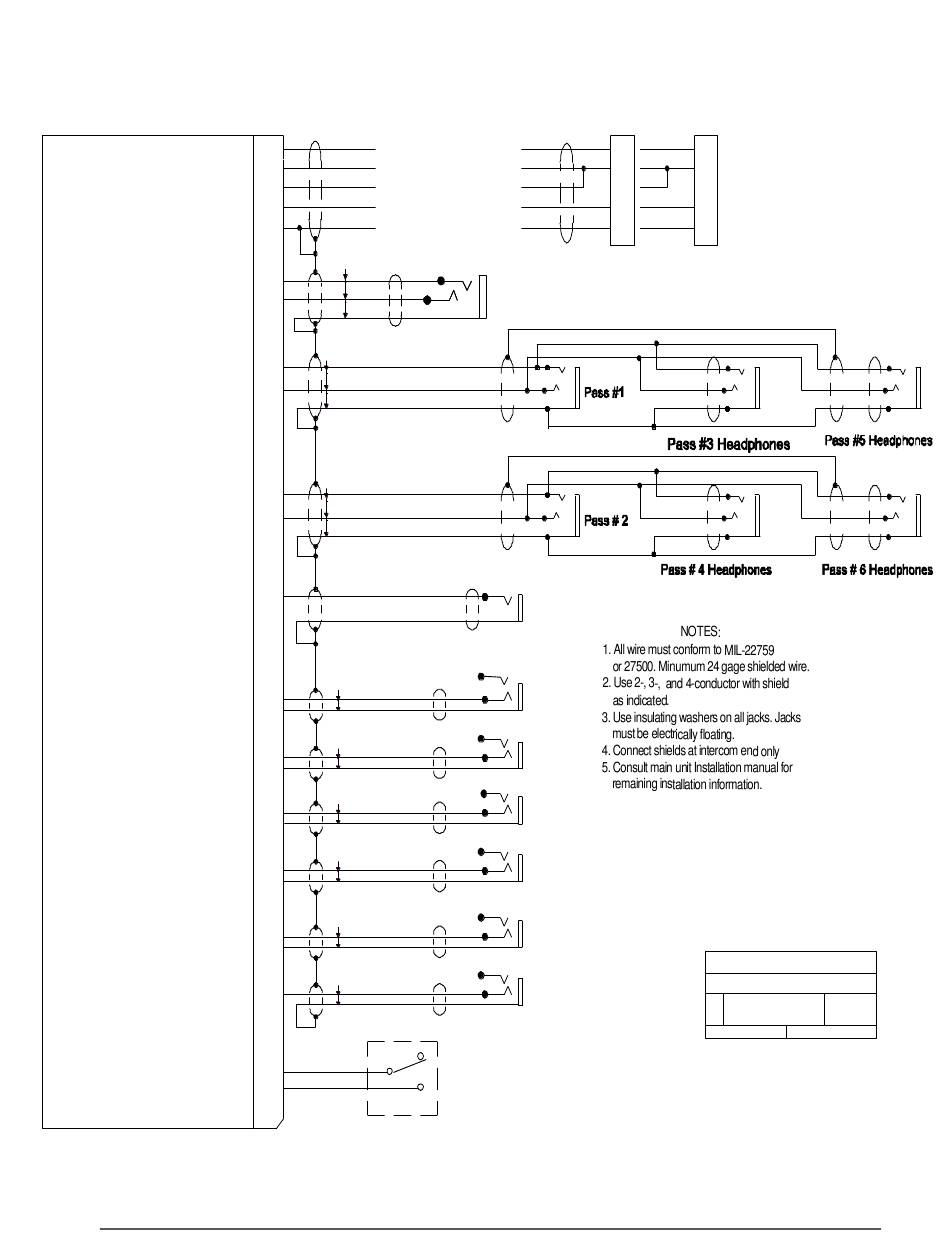

Figure 1 IntelliPAX Wiring (11616, 11616R, 11636R)
PM1200
8
13
3
4
Entertainment Input
Mono Aux Input, See Note 7
(tape recorder, etc)
Pass 1 Mic
Pass 2 Mic
Pass 3 Mic
Pass 4 Mic
Pass 5 Mic
Pass 6 Mic
Soft Mute Control
(Switch not included)
C
Page
PM1000
Series
15
16
3
2
See unit Installation manual
for complete information
9800 MARTEL ROAD, LENOIR CITY TN 37772
TITLE:
IntelliPAX W IRING DIAG RAM
SIZE DOCUMENT NUMBER:
REV
8
12 0-2 50-000 0
DATE: 1
SHEET 1 OF
02/01/22
Rev. 1, Sept. 2022
