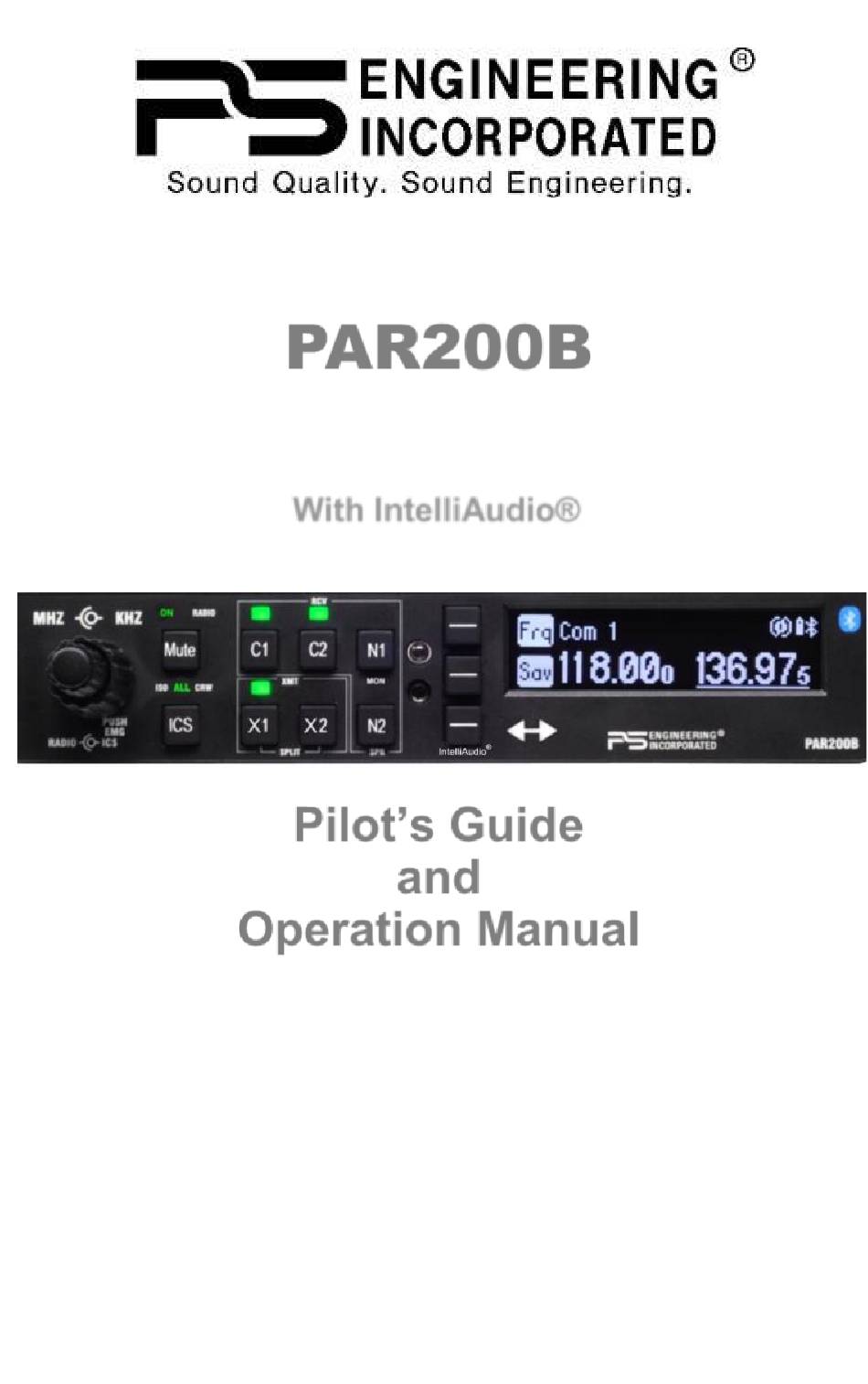

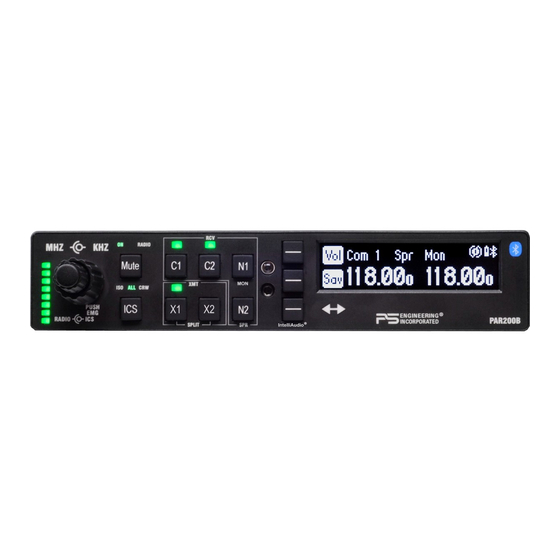

PAR200B
Audio Selector Panel
High-fidelity Stereo Intercom System
VHF Communications Transceiver Controller
With IntelliAudio®
Flying Never Sounded So Good! ®
Pilot's Guide
and
Operation Manual
202-228-0300
October 2019
FAA-TSO Approved
EASA ETSO Approved
Covered under one or more of the following
Patents No. 4,941,187, 5,903,227
6,160,496, 6,493,450
Oct. 2019 PAR200B Pilot Guide
202-228-0300
Page 1
Advertisement
Table of Contents
Related Manuals for PS Engineering PAR200B
Summary of Contents for PS Engineering PAR200B
- Page 1 Flying Never Sounded So Good! ® Pilot’s Guide Operation Manual 202-228-0300 October 2019 FAA-TSO Approved EASA ETSO Approved Covered under one or more of the following Patents No. 4,941,187, 5,903,227 6,160,496, 6,493,450 Oct. 2019 PAR200B Pilot Guide 202-228-0300 Page 1...
-
Page 2: Power And Fail Safe
This section provides detailed operating instructions for the PS Engineering PAR200B, Audio Selector Panel/Intercom/VHF Communication Control Systems. Please read it carefully before using the equipment so that you can take full advantage of its capabilities. This section is divided into sections covering the basic operating areas of the PAR200B systems. -
Page 3: Communications Transmit (Xmt) Selection
COM transmitter. A green LED above the button illuminates to indicate that the audio is selected. The PAR200B has an automatic com receiver selector system. Audio from the selected transceiver is automatically heard in the headsets and speaker (if selected). -
Page 4: Com Audio Selector
(X1 to X2). To cancel "Swap Mode," the pilot may either press the yoke mounted switch again, or select a different Com with the XMT buttons. This does NOT flip-flop the PAR200B Active and Standby frequencies. COM Audio Selector (2) -
Page 5: Frequency Selection
Any additional installed receiver audio (Marker, ADF, etc.) is interfaced through an unswitched input. VHF Transceiver control (6) The PAR200B is a dedicated control of the Trig TY91(L) VHF communica- tions transceiver. Direct frequency selection is always directed to the STANDBY side of the display. - Page 6 OLED screen when the trailing digit on the 0.000 MHz is full size. As in the PAR200A, if the ICS button is held for 1 second, the radio menu will also appear. Page 6 202-228-0300 PAR200B Pilot Guide...
-
Page 7: Monitor Mode
Trig TY91 COM transceiver. Cockpit Speaker (10) When the cockpit speaker is turned on, any receiver audio selected will be heard in the speaker. Any unswitched audio will always be present in the cockpit speaker. Oct. 2019 PAR200B Pilot Guide 202-228-0300 Page 7... -
Page 8: Intercom Operation
This is normal. For optimum microphone performance, PS Engineering recommends instal- lation of a Microphone Muff Kit from Oregon Aero (1-800-888-6910). This will not only optimize VOX performance, but will improve the overall clari- ty of all your communications. -
Page 9: Intercom Modes
The pilot and copilot positions work with stereo or mono headsets. All pas- senger headsets are connected in parallel. Therefore, if a monaural headset is plugged in to a PAR200B Stereo installation, one channel will be shorted. Although no damage to the unit will occur, passengers with stereo headsets will only hear in one ear, unless they switch to the “MONO”... -
Page 10: Bluetooth® Telephone Connection
Bluetooth connection, the unit must be associated with a specific phone. Activate the “seek device” function on the cell phone (if required, enter the access code “0000”) when the phone detects the “PAR200B” on the list of available devices. This process will be necessary for any phone to be used, and only one cell phone can be associated with the audio panel at a time. -
Page 11: Telephone Sidetone
Passengers will not hear the telephone. The pilot and copilot will also have transmit capability on the other selected transceiver. In ISO intercom mode, when the PAR200B is in the TEL mode, the pilot posi- tion is in the "Phone Booth." Only the pilot will hear the telephone, and only he will be heard. -
Page 12: Music Menus
The PAR200B has two independent music inputs at the rear connector, Music #1 & #2. The PAR200B also has the ability to receive streaming music from a Bluetooth-enabled device which is also Music #1. If both inputs (Music #1 &... -
Page 13: Display Brightness
User Setup Function To access the user setup menu: Turn the PAR200B off by pushing the left knob, and allowing the unit to shut down. Turn the PAR200B back on. As soon as the PAR200B screen appears (after a brief logo slash screen), push the bottom line-select button to switch into setup mode. - Page 14 This can happen when many devices have been paired over time. After Unpair All is pressed and the Bluetooth module resets, you will need to “Forget” the PAR200B from any devices, and re-pair from the device afresh. Pressing the center line select button allows you to set a PIN code if your device requires it.
- Page 15 Trig TY91L transceiver connected to the PAR200B. Regardless of the power on default function, the knob func- tion selection will be controlled by the top line-select button and remain selected until changed during operation. Oct. 2019 PAR200B Pilot Guide 202-228-0300 Page 15...
- Page 16 Installation date:_____________________________ PS Engineering, Inc. 2019 © Copyright Notice Copyrighted information in this manual is subject to change without notice. PS Engineering reserves the right to improve or change the products or contents of this manual, without notification of any person or agency.
