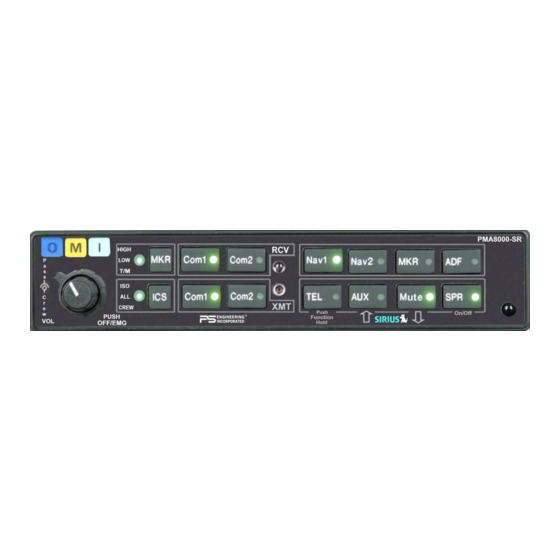

PS Engineering PMA8000-SR Owner's Manual

Audio selector panel with marker beacon receiver high-fidelity stereo intercom with integrated sirius satellite radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P
M
P
M
Audio Selector Panel with Marker Beacon Receiver
High-fidelity Stereo Intercom with integrated SIRIUS Satellite Radio
Patented under one or more of the following;
In certified aircraft, warranty is not valid unless this product is installed by an
Any reproduction or retransmittal of this publication, or any portion thereof, without the expressed written permission of PS
Engineering, Inc. is strictly prohibited. For further information contact the Publications Manager at PS Engineering, Inc., 9800
Martel Road, Lenoir City, TN 37772. Phone (865) 988-9800, email contact@ps-engineering.com.
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com
A
8
A
8
System Installation and Operation Manual
FAA-Approved TSO C50c, C35d
No. 5,903,227; 6,160,496 and 6,493,450
Document P/N 200-880-0000
Revision 15, June 2009
Authorized PS Engineering dealer.
PS Engineering, Inc. 2009 ©
Copyright Notice
0
0
0
-
0
0
0
-
S
R
S
R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMA8000-SR and is the answer not in the manual?

Questions and answers

Related Manuals for PS Engineering PMA8000-SR

Summary of Contents for PS Engineering PMA8000-SR

  • Page 1 Audio Selector Panel with Marker Beacon Receiver High-fidelity Stereo Intercom with integrated SIRIUS Satellite Radio System Installation and Operation Manual FAA-Approved TSO C50c, C35d Patented under one or more of the following; No. 5,903,227; 6,160,496 and 6,493,450 In certified aircraft, warranty is not valid unless this product is installed by an Authorized PS Engineering dealer.

  • Page 2: Table Of Contents

    ARKER IGHTS 2.5.3 IDDLE ARKER ENSE ... 2-10 DJUSTMENTS OMMUNICATIONS NTENNA 2.7.1 ... 2-11 UDIO CTIVE UTPUT PMA8000-SR P IN ASSIGNMENTS NSTALLATION HECKOUT 2.9.1 EQUIRED QUIPMENT 2.10 ... 2-13 NSTALLATION 2.10.1 PERATIONAL HECKOUT Table of Contents ... 1-4 ... 2-1 ...
  • Page 3 APPENDIX F RTCA DO160D ENVIRONMENTAL QUALIFICATION FORM ... F Date Change 3/9/05 RF connector detail added/TSO Approved 3/18/05 Added PA Mute Enable description and alt music, clarified SIRIUS Satellite Radio warranty 3/24/05 Combined installation parts kits and updated kit numbers 5/18/05 Corrected antenna connector reference 5/24/05 Corrected text for Unswitched Audio distribution 2.4.10...

  • Page 4: Section I General Information

    Stereo Audio Selector Panel with Marker Beacon Option 1 Same as above with Digital Recorder added Where the functions are identical to all units, it will be referred to herein as a PMA8000-SR. Otherwise, the applicable units will be specified. EQUIPMENT DESCRIPTION The PMA8000-SR-series is a state of the art audio isolation amplifier and audio selector that contains an automatic voice activated (VOX) intercom system.

  • Page 5: Approval Basis

    The PMA8000-SR incorporates an integrated SIRIUS Satellite Radio receiver, which allows the aircraft occupants to enjoy their music A 3-light Marker Beacon receiver is integrated in the PMA8000-SR. This provides the necessary Marker Beacon lights and audio indications necessary for an Instrument Landing System (ILS) approach. A pushbutton labeled MKR allows the pilot select high or low sensitivity as well as test and mute modes.
  • Page 6 PMA8000-SR Series Audio Selector Panel and Intercom System Audio selector panel input impedance: Input Isolation: Speaker Muting: Speaker Output (into 4 Ω) with no clipping 14 VDC: 28 VDC: Receiver Inputs: Unswitched Inputs: Transmitter Selections: Speaker Impedance: Headphone Impedance: Headphone Output:...

  • Page 7: Equipment Supplied

    To activate the module, you will need to do the following: • Locate the SID/ESN number from your SIRIUS receiver in the PMA8000-SR (found on the unit or played back, by pressing 4-1-1 with Sirius system turned on). •...
  • Page 8 NOTE: Prices subject to change without notice Record your Radio ID here for future reference. _________________________________ Press 4-1-1 on remote with SIRIUS Satellite Radio turned on to read back the SID. 200-880-0000 PS Engineering Installation and Operator’s Manual Page 1-5 Rev.

  • Page 9: Section Ii - Installation

    Equipment Installation Procedures 2.3.1 Cooling Requirements Forced air-cooling of the PMA8000-SR is not required. However, the units should be kept away from heat producing sources (i.e. defrost or heater ducts, dropping resistors, heat producing avionics) without ade- quate cooling air provided.

  • Page 10: Audio Panel Mounting Rack Installation

    There must be at least 13.8 VDC present at the connector, J2 pins 8 & 9, of the PMA8000-SR for the power supply to work in its designed regulation. Otherwise, it cannot adequately attenuate power line noise. Shielding can reduce or prevent radiated noise (i.e., beacon, electric gyros, switching power supplies, etc.) However, installation combinations can occur...

  • Page 11: Existing Gma340 Installation

    If the pilot and copilot both use the PTT, the only pilot position has access to the radio. The pilot posi- tion will have PTT control regardless of the mic selector switch or copilot PTT when the PMA8000-SR is in the mode.

  • Page 12: Tel (Duplex) Function For Cell Phones

    PMA8000-SR Series Audio Selector Panel and Intercom System Connect the speaker output from the unit to the COM 2 Speaker load input on the PMA8000-SR (J1 27 WRT 28). The speaker load is 16 Ω, 3W. 2.4.6 TEL (Duplex) Function for Cell Phones This mode is designed to operate with telecommunications systems, such as the AirCell Guardian 1000.

  • Page 13: Unswitched Inputs

    3 0 0 on the remote. You will hear a beep with each key press, followed by the three-beep acknowl- edgement. By pressing the Mute and SPR pushbuttons at the same time, the PMA8000-SR will be placed into public address (PA) mode. In this mode, both Mute and SPR indicators will blink, alerting the pilot that when he presses his PTT switch he will be talking over the cockpit speaker.

  • Page 14: Intercom Wiring

    2.4.16.2 SIRIUS Satellite Radio Antenna connection The Satellite Radio antenna input of the PMA8000-SR must be connected to the Satellite Radio Antenna at the pigtail connected to back plate (P/N 430-890-1481). 2.4.16.3 SIRIUS Satellite Radio Output (J2, Pins 29 &...

  • Page 15: Entertainment Distribution

    2.4.16.5 Entertainment distribution The PMA8000-SR has two INDEPENDENT music inputs. Entertainment input number 1 is J2 pins 23 (left channel) and 24 (right channel), with respect to pin 25, and is provided to the pilot and copilot. Entertain- ment number 2 is provided to the passengers at all times, and is connected to 26 (left channel), 27 (right channel), with respect to 28.

  • Page 16: Use Of Pxe7300 And Pav 80 Aux Inputs For Sirius Satellite Radio Distribution

    IFE Audio Out (L) Audio Lo Shield Ground Figure 2-3 PMA8000-SR using PXE7300 as control The PAV80 also has an auxiliary audio input, and could be used to switch the PMA8000-SR Sirius radio. 200-880-0000 PS Engineering Installation and Operator’s Manual...

  • Page 17: Entertainment Muting

    Figure 2-4 PMA8000-SR using PAV80 as control 2.4.18 Entertainment muting The PMA8000-SR-system incorporates a "Soft Mute" system. This will mute the entertainment devices during ICS or radio conversation. Any signal appearing in the unswitched audio inputs will always mute the entertainment sources, even though the passengers may not hear the audio tone itself.

  • Page 18: Playback Button Installation (J2, Pin 22- Option 1, Only)

    Marker signal is received. This output is J1, pin 39. Adjustments The PMA8000-SR is factory adjusted to accommodate the typical requirements for most aircraft configura- tions. There is an adjustment in the bottom cover that allow the installer to tailor speaker volume.

  • Page 19: Communications Antenna Installation Notes

    It is probable that radio interference will occur in the split mode when the frequencies of the two air- craft radios are adjacent, and/or the antennas are physically close together. PS Engineering makes no expressed or implied warranties regarding the suitability of the PMA8000-SR in Split Mode. 2.7.1...

  • Page 20: Pma8000-Sr Pin Assignments

    PMA8000-SR Series Audio Selector Panel and Intercom System PMA8000-SR Pin assignments Mkr Ant Mkr Ant Lo Telephone Audio in Telephone Lo Telephone Mic Audio Telephone Mic Key ADF Audio In ADF Audio Lo Com 1 Audio Com 1 Audio Lo...

  • Page 21: Post Installation Checkout

    10 and 11. Failure to do so will cause serious internal damage and void PS Engineering's war- ranty. 2.9.1 Required Test Equipment In order to return an aircraft to service after installation of the PMA8000-SR, the installer must have access to a Marker Beacon signal generator: IFR NAV401L, NAV402AP, IFR4000 TIC T-30D, T-36C Equivalent test equipment is acceptable as long as the testing requirements can be met.

  • Page 22: Tel Checkout

    Using the remote control, Press "3-4-5-enter" on the keypad to gen- erate a 1kHz tone. This will be provided to any station connected to the internal SIRIUS Satellite Radio module. Enter the same code to turn it off again.

  • Page 23: Sirius Satellite Radio Id Number

    PMA8000-SR Series Audio Selector Panel and Intercom System 2.12.2 SIRIUS Satellite Radio ID number The SIRIUS Satellite Radio identification number can be played back through the annunciation. Have a pencil handy, and press “4-1-1” on the remote control. 2.13 Internal Recorder Checkout (Optional) With headset plugged into pilot’s side jacks, tune COM 1 to local frequency, such as FSS or ATC ground.

  • Page 24: Section Iii Operation

    COM 1 and COM 2 allows selection of the receive audio. The PMA8000-SR gives priority to the pilot’s PTT. If the copilot is transmitting, and the pilot presses his PTT, the pilot’s microphone will be transferred to the selected com transmitter.

  • Page 25: Swap Mode (Switch From Com 1 To Com 2 Remotely)

    PMA8000-SR Audio Selector Panel and Intercom System Figure 3-2 PMA8000-SR Operating controls NOTE: Placing the PMA8000-SR in–TEL– The intercom mode pushbutton determines who is on the phone, and who is still on the intercom. In ISO, only the pilot is on the phone, while the copilot and passengers remain on intercom. The pilot will continue to hear all selected aircraft radios.

  • Page 26: Split Mode

    PMA8000-SR Audio Selector Panel and Intercom System hear a beep with each key press, followed by three acknowledgement beeps. This must be accomplished only once and the PMA8000-SR will “remember” that PA is activated. See section 3.4.1.2 to use the PA mode.

  • Page 27: Intercom Volume Control (7)

    All passenger headsets are connected in parallel. Therefore, if a monaural headset is plugged in to a PMA8000-SR Stereo installation, one channel will be shorted. Although no damage to the unit will occur, all passengers will lose one channel, unless they switch to the “MONO” mode on the headset. PS Engi- neering modifies headsets to add stereo capability, using high-fidelity speakers.

  • Page 28: Entertainment Input

    Crew and may listen to Entertainment 2. 3.6.3.1 Entertainment Input As shipped from PS Engineering, the PMA8000-SR is configured to provide Sirius Satellite Radio to the Entertainment #1 circuit, for Pilot and Copilot. Since the audio selector panel has provisions for two sepa- rate entertainment inputs, which operate independently the Sirius Radio audio can be directed to the pas- sengers.

  • Page 29: Telephone Mode (9)

    In ISO intercom mode, when the PMA8000-SR is in the TEL mode, the pilot position is in the "Phone Booth." Only the pilot will hear the telephone, and only he will be heard. He will also have access to Com 1 or 2, and will transmit on that radio using the PTT.

  • Page 30: Sirius Signal Dropout

    NOTE: The SIRIUS Radio Module will be turned OFF when power is initially applied to the audio panel. If you believe that there is a malfunction in the SIRIUS Satellite Radio, turn power off, and back on. Hold the function button (TEL), press and hold the Mute button to decrease the SIRUIS radio volume.

  • Page 31: Marker Beacon Operation (10)

    NOTE: To turn OFF the satellite radio from the PMA8000 panel without us- ing the remote, push the “TEL” and “SPR” buttons at the same time. If you believe that there is a malfunction in the SIRIUS Satellite Radio, turn power off, and back on to restore audio panel functions.

  • Page 32: Section Iv- Warranty And Service

    PMA8000-SR Audio Selector Panel and Intercom System Section IV- Warranty and Service Warranty In order for the factory warranty to be valid, the installations in a certified aircraft must be accomplished by an FAA-(or other ICAO agency) certified avionics shop and authorized PS Engineering dealer. If the unit is being installed by a non-certified individual in an experimental aircraft, a factory-made intercom harness must be used for the warranty to be valid.

  • Page 33: Appendix A External Ptt Hook Up

    PS Engineering PMA8000-SR Audio Selector Panel and Intercom System Installation and Operator’s Manual Appendix A External PTT Hook Up Part of the installation includes the installation of PTT (Push To Talk) switches that allow the use of your aircraft radio for communications transmissions.

  • Page 34: Appendix B - Pma 8000 Installation Drawings

    PMA8000-SR Audio Selector Panel and Intercom System Appendix B – PMA 8000 Installation Drawings 475-440-0004 (4 ea) 475-440-0007 (4 ea) Viewed from Back Solder Lug (mount as convenient) Rear plate detail (not to scale) 5.49 in 3.83 in 0.33 in...
  • Page 35 PS Engineering PMA8000-SR Audio Selector Panel and Intercom System Installation and Operator’s Manual Figure 6-1 PMA8000-SR Installation Drawing C a u t i o n : A p p l y s t e a d y p r e s s u r e t o t h e b e z e l w h i l e s c r e w i n g t h e u n i t i n t o t h e t r a y t o e n s u r e e v e n s e a t i n g o f t h e u n i t a n d c o n n e c t o r s .

  • Page 36: Appendix C, J1 Interconnect

    PMA8000-SR Audio Selector Panel and Intercom System Appendix C, J1 Interconnect Com 1 Audio Hi Communications Com 1 Lo Transceiver #1 Com 1 Mic Audio Hi Com 1 Mic Key Com 2 Audio Hi Communications Com 2 Lo Transceiver #2...

  • Page 37: Appendix D, J2 Connector Interconnect

    PMA8000-SR Audio Selector Panel and Intercom System Appendix D, J2 Connector Interconnect PMA8000 J2 CONNECTOR (Sub-D 44-pin male on tray) Unswitched Input #4 Hi Unswitched Audio #4 Unswitched Audio Lo Pass. 1 Mic Jack Pass. 2 Mic Jack Pass. 3 Mic Jack Pass.

  • Page 38: R Equired

    One method of airworthiness approval is through an FAA Form 337, Major Repair and Alteration (Airframe, Power- plant, Propeller, or Appliance) In the case of the PMA8000-SR, you may use the following text as a guide. Installed audio selector and 6-place intercom, PS Engineering PMA8000-SR, part number 050-880-(XXX) in ( location ) at station .

  • Page 39: O Perational

    PMA8000-SR Audio Selector Panel and Intercom System Appendix F RTCA DO160D Environmental Qualification Form Audio Selector Panel/Intercom/Marker Beacon Receiver Part Number: 050-880-( ) FAA TSO Number: C50c, C35d Manufacturer: PS Engineering Incorporated 9800 Martel Road Conditions Temperature and Altitude Low Temperature...
