PS Engineering PM3000 Pilot's Manual

High-fidelity, stereo intercom system
Hide thumbs Also See for PM3000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operation & Installation Manual
Enlarged version
9800 Martel Road
Lenoir City, TN 37772
www.ps-engineering.com

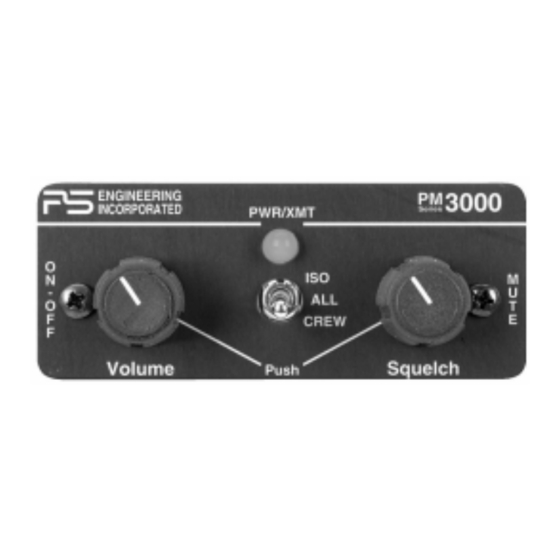

PM3000
High-fidelity, Stereo Intercom System
Pilot's Guide
Part Number 11931(A), 11932
FAA-TSO
C50c
Also includes 11933A, 11934, non-FAA TSO units
202-193-0001
Revision 3
October 2006
Flying never sounded so good
®
PM3000 Pilot Guide & User Manual
1
202-193-0001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PS Engineering PM3000

Summary of Contents for PS Engineering PM3000

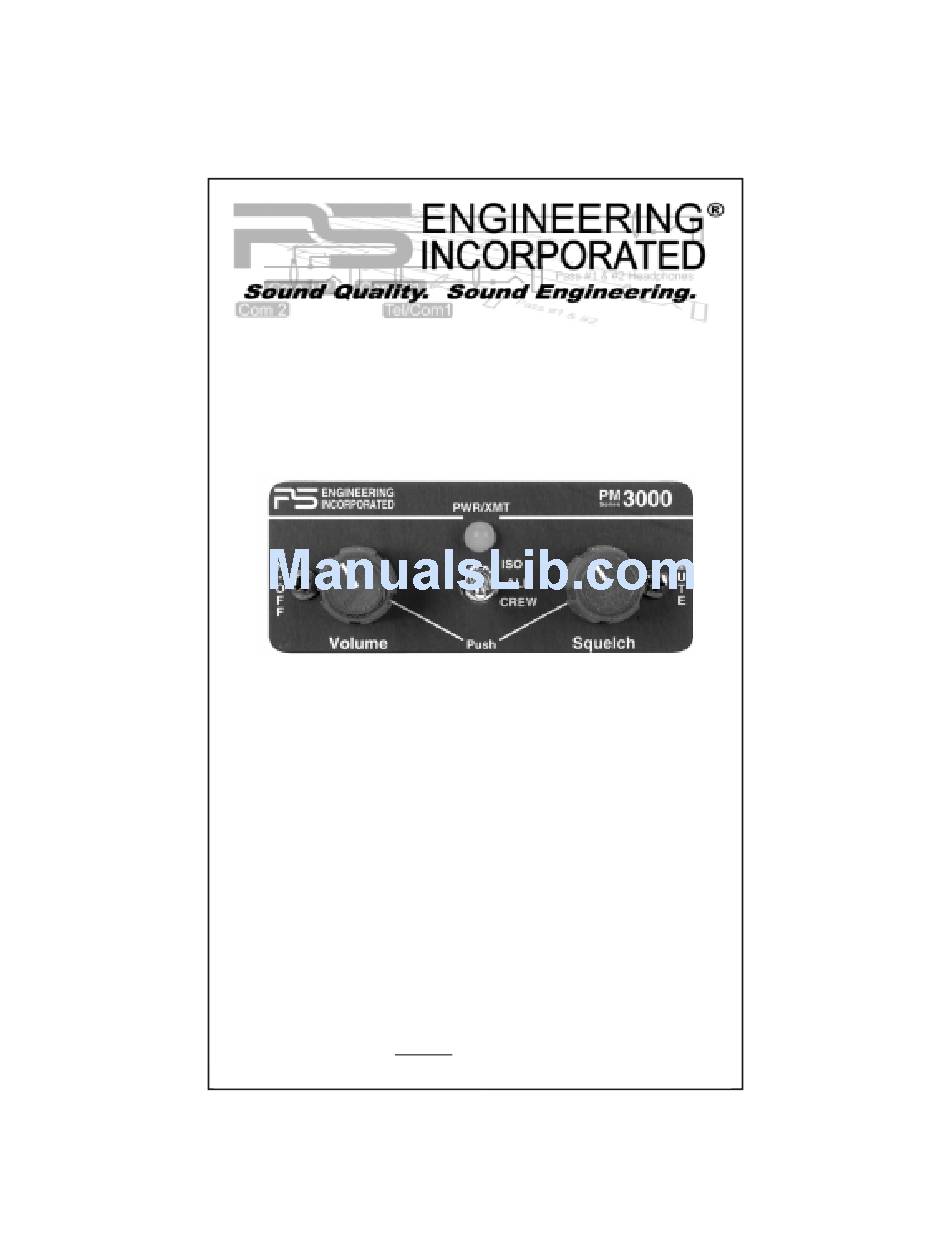

  • Page 1 Lenoir City, TN 37772 www.ps-engineering.com PM3000 High-fidelity, Stereo Intercom System Pilot’s Guide Part Number 11931(A), 11932 FAA-TSO C50c Also includes 11933A, 11934, non-FAA TSO units 202-193-0001 Revision 3 October 2006 Flying never sounded so good ® PM3000 Pilot Guide & User Manual 202-193-0001...

  • Page 2: Section I General Information

    With few controls for the pilot to use, the operation of the PM3000 is very straightforward. Yet the unit outperforms its much more complicated com- petition. Although there is only one volume control knob, when an adjust- ment is made to the volume control, all output amplifiers are being changed simultaneously.

  • Page 3: Approval Basis

    Both pilot and copilot have transmit capabilities over the radio. The PM3000 only allows the voice of the person who presses their PTT to be transmitted over the aircraft radio. If both pilot and copilot press the PTT at the same time, the copilot will override.
  • Page 4 Adjusting the Volume (1) The PM3000 volume control knob adjusts the loudness of the inter- com and music only. The volume control on the PM3000 does not affect the volume level of the aircraft radio. This allows the aircraft radio and intercom volume to be balanced independently. The vol- ume control affects the music level for the pilot and copilot posi- tions.
  • Page 5 NOTE: If there is a power failure to the PM3000, or if the power switch is turned off, the copilot will not hear the aircraft radio. Only the pilot is connected directly to the aircraft radio.
  • Page 6 Normally, any radio traffic or intercom conversation will mute the music heard in ALL mode, or for the front in CREW. However, when the crew desires uninterrupted music, the PM3000 can be placed in the Karaoke Mode, for singing along. Press the right knob (squelch) once to activate Karaoke mode, so the music will not be muted.
  • Page 7 In order for the factory warranty to be valid, the installations in a certified aircraft must be accomplished by an FAA-certified avionics shop and author- ized PS Engineering dealer. If the unit is being installed by a non-certified indi- vidual in an experimental aircraft, a factory-made harness must be used for the war- ranty to be valid.
  • Page 8 Commercial use is strictly prohibited. For further information contact the Publications Man- ager at PS Engineering, Inc., 9800 Martel Road, Lenoir City, TN 37772. Phone (865) 988- 9800 202-193-0001 PM3000-Pilot Guide &...
