INSTALLATION MANUAL

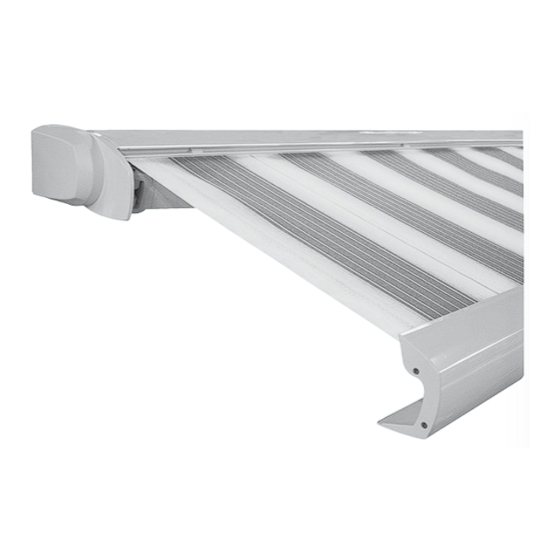

AWNING V285 - RECIFE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V285-RECIFE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verano V285-RECIFE

Summary of Contents for Verano V285-RECIFE

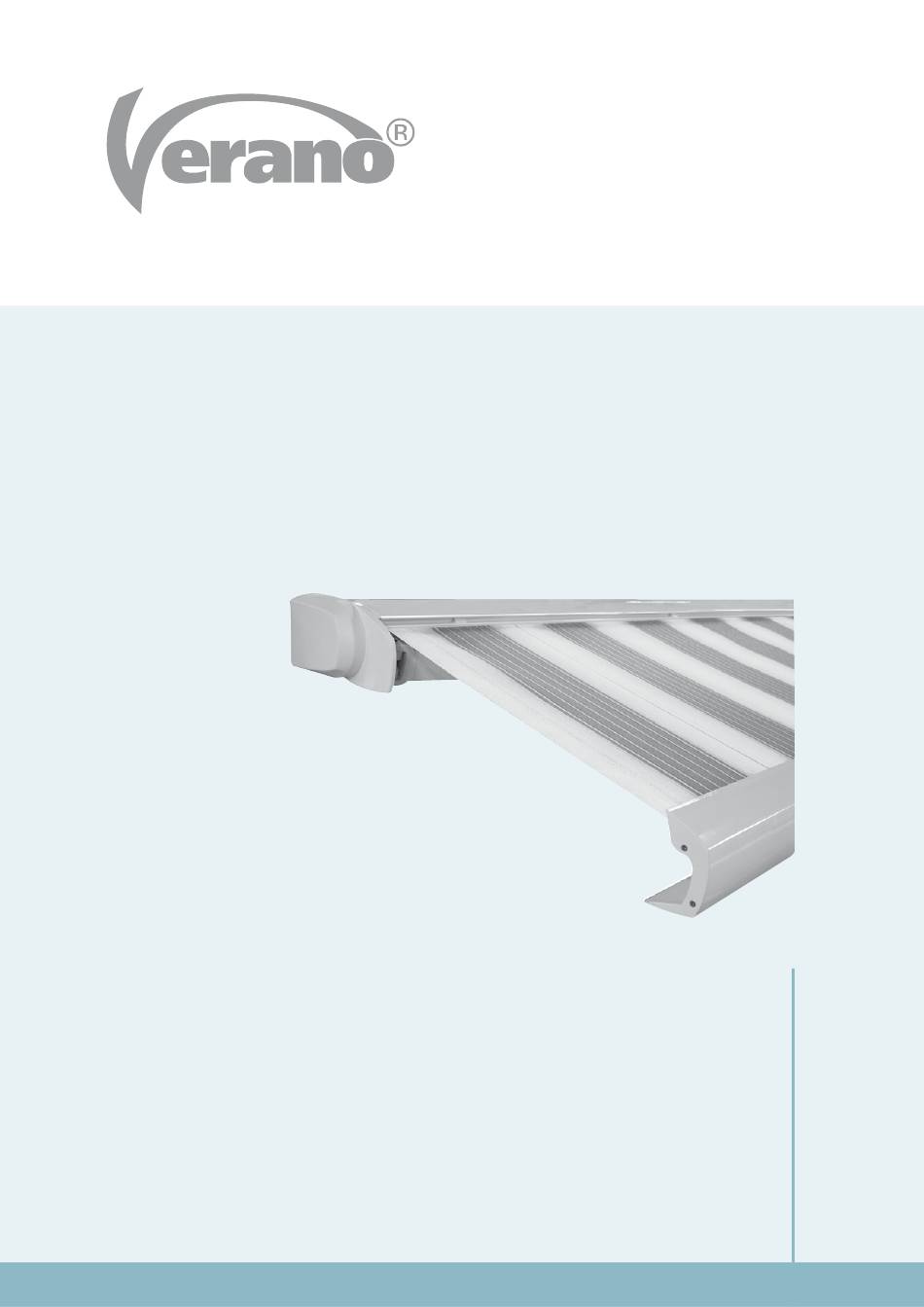

  • Page 1 INSTALLATION MANUAL AWNING V285 - RECIFE...

  • Page 2: Necessary Tools

    INSTALLATION MANUAL AWNING V285 - RECIFE Content 1. Awning 2. Side caps 2x 3. Wall supports 2x 4. Center support(s) (with an awning bigger than 550 cm) 5. Locking bolts 2x, provided with nuts 6. Control a. Electrical: Switch and plug b.

  • Page 3: Specifications

    INSTALLATION MANUAL AWNING V285 - RECIFE Specifications Wall mounting Sizes in mm Front view wall support Awning section Ceiling mounting 12,25 108,50 Front view ceiling support Awning section Top view ceiling support Projection Minimum width per fabric projection Projection [mm] Minimum awning width [mm] Ceiling installation Projection...
  • Page 4 General warning Mounting the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the mounting of this specific Verano® product. If you cannot mount the product yourself, you can always opt for professional mounting. The mounting team of Verano®...
  • Page 5 INSTALLATION MANUAL AWNING V285 - RECIFE Mounting wall supports 1.1 Marking the holes Mark the holes for the wall supports (A) and potential for the intermediate support (B) on the wall. These holes need to be aligned level, horizontal and vertical, according to the sizes X and Y in figure 1.1.

  • Page 6: Mounting The Awning

    INSTALLATION MANUAL AWNING V285 - RECIFE Mounting the awning 2.1 Placing the awning 1. Hang the awning in the wall supports (A). View figure 2.1 and 2.2. 2. Make sure that the awnings is mounted level. If not, correct this. 3.
  • Page 7 INSTALLATION MANUAL AWNING V285 - RECIFE 2.2 Securing the awning 1. Slide the locking block over the wall support (A). View figure 2.4. 2. Secure the awning by screwing the locking block with the included screw. 3. Repeat this on the other side of the awning. Attention! The awning may never be opened before the locking blocks are applied.
  • Page 8 INSTALLATION MANUAL AWNING V285 - RECIFE Electrical wall control 3.1 Connecting the wall control Follow the steps below: 1. Check the position of the motor (left or right) seen from the outside. 2. When you have the control inside, first feed a cable through the hole in the wall that you drilled earlier. 3.

  • Page 9: Remote Control

    INSTALLATION MANUAL AWNING V285 - RECIFE Remote control 4.1 Connecting the remote control Follow the steps below: 1. If you have the power inside, please first enter the cable through the hole you drilled earlier. 2. Mount the plug regarding to the following color scheme: •...
  • Page 10 INSTALLATION MANUAL AWNING V285 - RECIFE Incline angle 5.1 Standard factory adjustment The height of the front bar is standard set between 1,80 meter and 1,90 meter at a mounting height of 2,70 meter. 5.2 Adjusting the incline angle When you want to adjust the awning other than the factory adjustment, follow the steps below: 1.
  • Page 11 INSTALLATION MANUAL AWNING V285 - RECIFE Valance 6.1 Placing the valance Follow the steps below to place the valance. View figure 6.1. 1. Remove on one side the cover of the front bar. The fabric tendon is stored in the front bar. 2.
  • Page 12 INSTALLATION MANUAL AWNING V285 - RECIFE Wall strips Wall strips must be used at a situation with less than five rows of stones above the mounting place. The strips divide the power over a bigger wall surface, so that the wall can carry more weight. View figure 8.1 LEFT RIGHT LINKS...
  • Page 13 INSTALLATION MANUAL AWNING V285 - RECIFE 2. Measure the strips carefully on the wall. Keep the placing of the wall brackets on the strips and width size X in figure 1.1 in mind. The wall strips need to be levelled horizontal and vertical. The mounting holes need to be in the middle of the stone.

  • Page 14: Ceiling Mounting

    INSTALLATION MANUAL AWNING V285 - RECIFE Ceiling mounting 9.1 Mounting the ceiling brackets The awning can also be mounted to the ceiling using ceiling brackets (view figure 9.1). 1. Mount the mounting brackets to the ceiling brackets. 2. Measure the ceiling brackets on the ceiling. Please mind the placing of the wall brackets to the ceiling brackets and width size X in figure 1.1.

  • Page 15: User Information

    INSTALLATION MANUAL AWNING V285 - RECIFE User information A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology production process in which every step of the production is strictly selected. By way of automation, permanent checks, laboratory tests and finely detailed after-care, nothing is left to chance.
