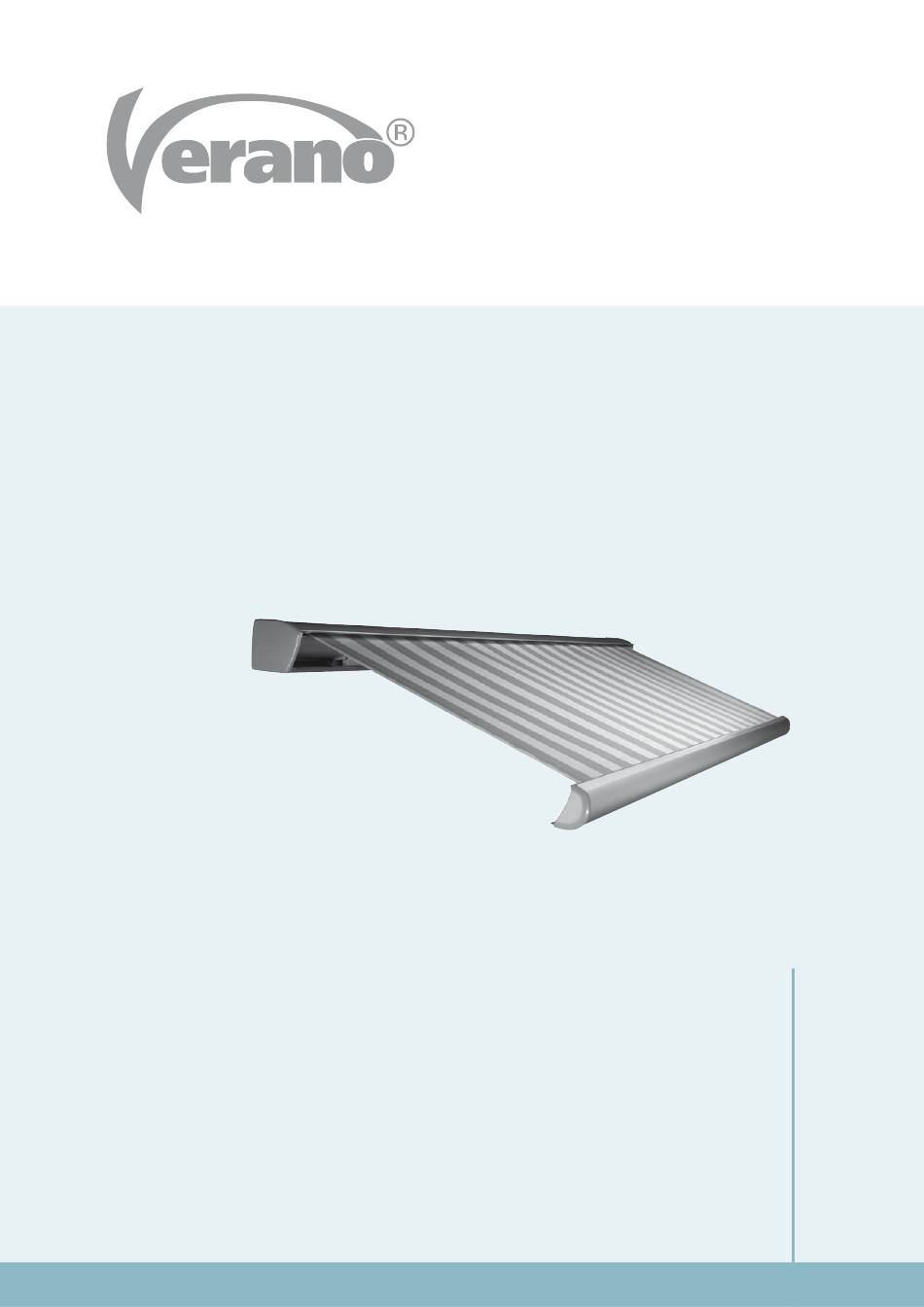

- Page 1 INSTALLATION MANUAL AWNING V80 - CANNES...
-
Page 2: Necessary Tools
INSTALLATION MANUAL AWNING V480 - CANNES Content 1. Awning * 2. Wall supports 3. Extra support(s) (with an awning bigger than 350 cm) 4. Mounting plates (optional) 5. Control a. Manual operation: Crank handle b. Electrical: Switch and plug c. Remote controlled: Remote control and plug * The pictured awning is motorized. - Page 3 INSTALLATION MANUAL AWNING V480 - CANNES Specifications V480 Cannes Sizes in mm Wall mounting Front view wall support Awning section Ceiling installation Integrated lighting included Awning section Awning section Overview wall supports Fabric Fabric Pro- Required number of wall supports...
- Page 4 General warning Installation of the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation of this specific Verano® product. If you cannot install the product yourself, you can always opt for professional installation.
- Page 5 INSTALLATION MANUAL AWNING V480 - CANNES Installation of the wall supports 1.1 Marking the holes View the stickers on the back side of the awning. See figure 1.1. The heart of the wall supports needs to be placed where the stickers are located. sticker center sticker...
- Page 6 INSTALLATION MANUAL AWNING V480 - CANNES 1.2 Drilling the holes Drill the installation holes. Our advise is to drill with a 14 millimeter masonry drill in case of a wall made of concrete or stone. Use matching plugs and bolts of high quality.
- Page 7 INSTALLATION MANUAL AWNING V480 - CANNES Installation of the awning 2.1 Placing the awning 1. Hang the awning in the wall supports. See figure 2.1. Attention! Only loosen the long allen bolts (a) in the lower part of the wall support, don’t fully unscrew! 2.
- Page 8 INSTALLATION MANUAL AWNING V480 - CANNES Electrical wall control 3.1 Connecting the wall control 1. Check the position of the motor (left or right), seen from the outside! 2. If you have inside control, first guide the cable through the hole in the wall you drilled before. 3.
-
Page 9: Remote Control
INSTALLATION MANUAL AWNING V480 - CANNES Remote control 4.1 Connecting the remote control 1. If the power point is located on the inside, first guide the wire through the hole in the wall you drilled before. 2. Install the plug according to the color scheme below: Brown 220V power supply Blue... - Page 10 INSTALLATION MANUAL AWNING V480 - CANNES Pitch 5.1 Standard factory setting The passage height for the front bar is standard set between 1,80 and 1,90 meter at an installation height of 2,70 meter. 5.2 Setting the pitch If you want to set the awning different from the standard factory setting, please follow the steps below: 1.
-
Page 11: Front Bar
INSTALLATION MANUAL AWNING V480 - CANNES Front bar 6.1 Setting the front bar The right position is reached if the front bar connects perfectly to the top- and bottom cover when the awning is closed. See figure 6.1. Situation closed Situation open Situation A Situation B... - Page 12 INSTALLATION MANUAL AWNING V480 - CANNES Valance 7.1 Installation of the valance Follow the steps below for the installation of the valance. See figure 7.1. 1. Unscrew the cover of the front bar on one side. The fabric tendon is locked in the front bar. 2.
-
Page 13: Attention Points
INSTALLATION MANUAL AWNING V480 - CANNES Attention points Warning! The fabric always needs to move on top. Warning! Always check if the plastic protection strips (b) are located exactly beneath the seams in the fabric gutter (a). See figure 8.1. fig. -
Page 14: User Information
INSTALLATION MANUAL AWNING V480 - CANNES User information A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology production process in which every step of the production is strictly selected. By way of automation, permanent checks, laboratory tests and finely detailed after-care, nothing is left to chance.
