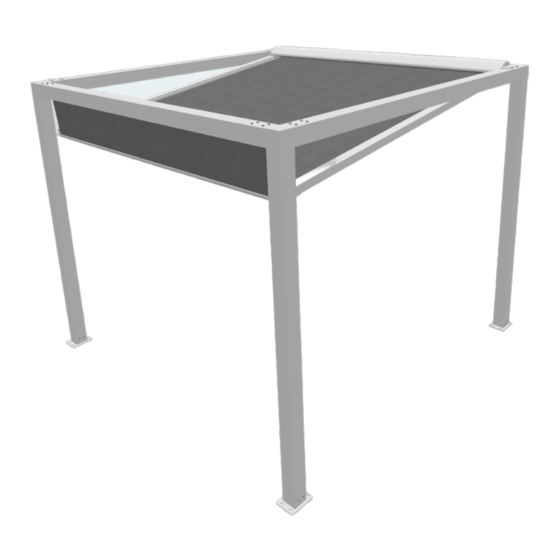

Freestanding - patio awning
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION MANUAL
FREESTANDING - PATIO AWNING
V805 - CORTONA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V805 CORTONA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verano V805 CORTONA

Summary of Contents for Verano V805 CORTONA

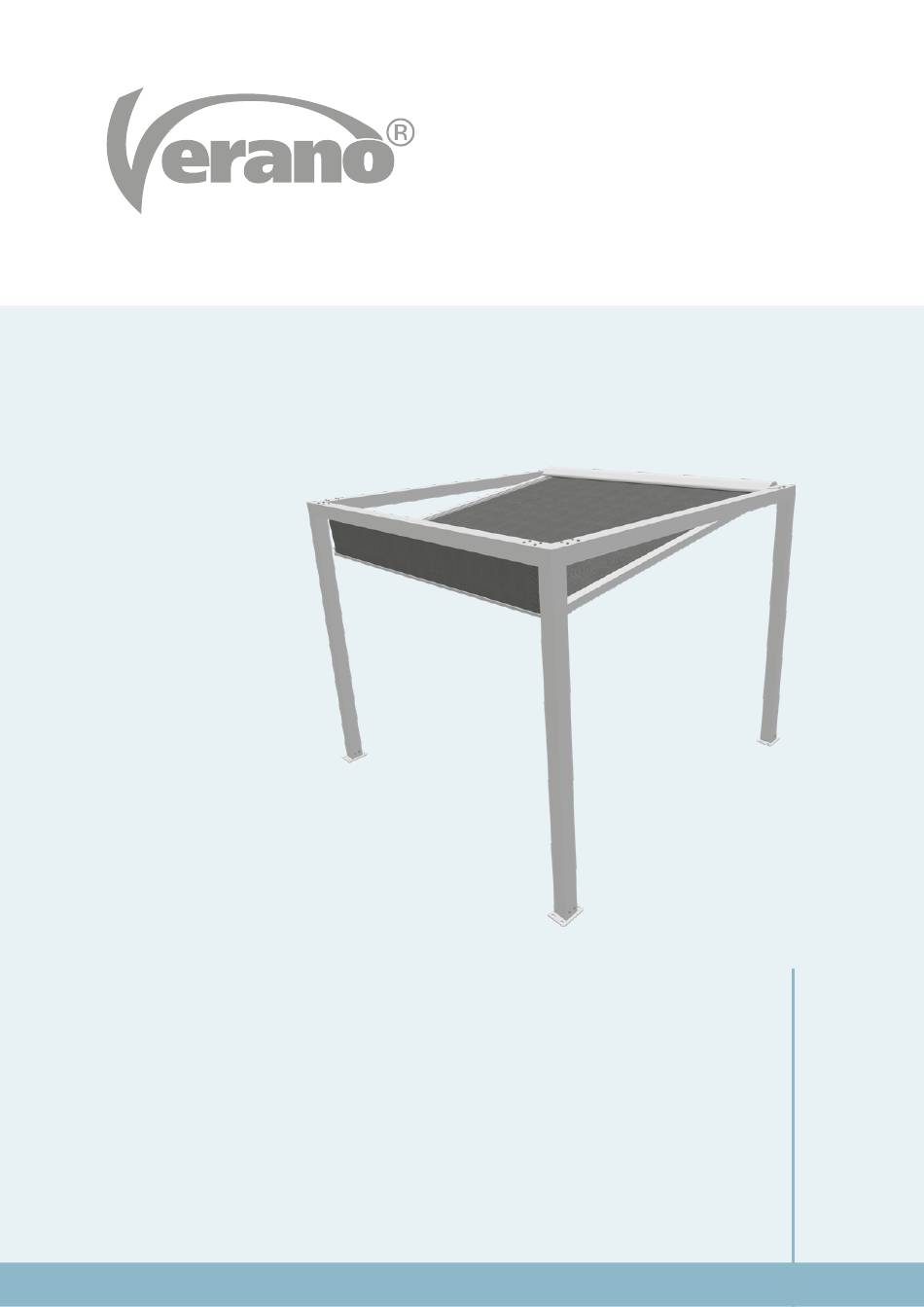

  • Page 1 INSTALLATION MANUAL FREESTANDING - PATIO AWNING V805 - CORTONA...

  • Page 2: Table Of Contents

    Gerenal warning Installing the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation of this specific Verano® product. If you cannot install the product yourself, you can always opt for professional installation.

  • Page 3: Wall Installation

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA Wall installation Installation of the frame Determine, before installation of the V805-Cortona, if the existing building is suitable for the installation of the Cortona system (if necessary, ask a building expert to judge the situation). Make sure that there are enough fixing tools for the combination of the wall and the V805-Cortona.
  • Page 4 INSTALLATION MANUAL PATIO AWNING V805 - CORTONA 1. Slide the installed angle construction on the wall support. Make sure that the operation cable in the wall support is guided to the outside through the recess. 2. Fixate the beam profile on top with the two outer bolts. The other two bolts are placed after the cassette is laid on the system.

  • Page 5: Installation Of The Patio Awning

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA 1. Fasten the set-foot to the concrete base. 2. Install the cover caps on the uprights. Installation of the patio awning 1. Place the cassette on the beams and fixate them with two bolts per side. Subject to misprints, errors and technical modifications Drukfouten, fouten en technische wijzigingen voorbehouden.
  • Page 6 INSTALLATION MANUAL PATIO AWNING V805 - CORTONA 1. Slide the guides to the cassette and let them rest on the floor. 2. Fixate the guide on the outside to the cassette. 3. Guide the motor cable together with the motor cable of the bag system through the wall inside and connect. You can use a weld box on the outside.

  • Page 7: Setting The Patio Awning

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA ® Assemblage instructie Cubola Setting the patio awning Sub-samenstelling Cassette (vervolg) Schuif de treklijst aan de voorzijde van het doek (let op: bovenste doeksleuf gebruiken). Schuif de middenkatrol in het profiel Monteer de geleiderblokken links en rechts aan de treklijst.

  • Page 8: Installation Of The Water Cap (Optional)

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA Installation of the water cap (optional) 1. Optional: place the water cap with brush. Fixate the water cap on the guides with self drilling screws. Attention! Screw max. 10 mm from the outside of the cap so that the pierced screw can not conflict with the cord. 2.

  • Page 9: Freestanding Installation

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA Freestanding installation Installation of the frame 1. Measure the positions of the uprights on the floor. Depending on the situation, the floor installation can be carried out in different ways. For example: with concrete bases, foundation or an existing floor. In the instruction, we explain the installation with concrete bases.
  • Page 10 INSTALLATION MANUAL PATIO AWNING V805 - CORTONA 1. Install the composite arch on the two concrete bases. Make sure that the cable on has enough space on the underside (set the set foot on small height above the base). Fixate the arch, level, on the concrete bases. 2.

  • Page 11: Installation Of The Patio Awning

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA 1. Fixate the set foot on the concrete base. 2. Place the covers on the uprights, leaving the upright with the junction box and the (ground)cable open, so that the cassette can be connected there. Installation of the patio awning 1.
  • Page 12 INSTALLATION MANUAL PATIO AWNING V805 - CORTONA 1. Slide the guides to the cassette and let it rest on the floor. 2. Fixate the guide on the outside to the cassette. 3. Guide the cable of the motor through a drilled hole (and tulle) in the cover of the upright. 4.

  • Page 13: Setting The Patio Awning

    aan de treklijst. Plaats schroefoog, veren kartollen en koordspanners in de treklijst Plaats vervolgens de afdekkap of monteer eerst het koord (tijdelijk). INSTALLATION MANUAL PATIO AWNING V805 - CORTONA Koord plaatsen: Voer het koord door het geleiderblok, vervolgens door het middenkatrol, en het katrolletje aan de veer.

  • Page 14: Installation Of The Water Cap (Optional)

    INSTALLATION MANUAL PATIO AWNING V805 - CORTONA Installation of the water cap (optional) 1. Optional: place the water cap with brush. Fixate the water cap on the guides with self drilling screws. Attention! Screw max. 10 mm from the outside of the cap so that the pierced screw can not conflict with the cord 2.
