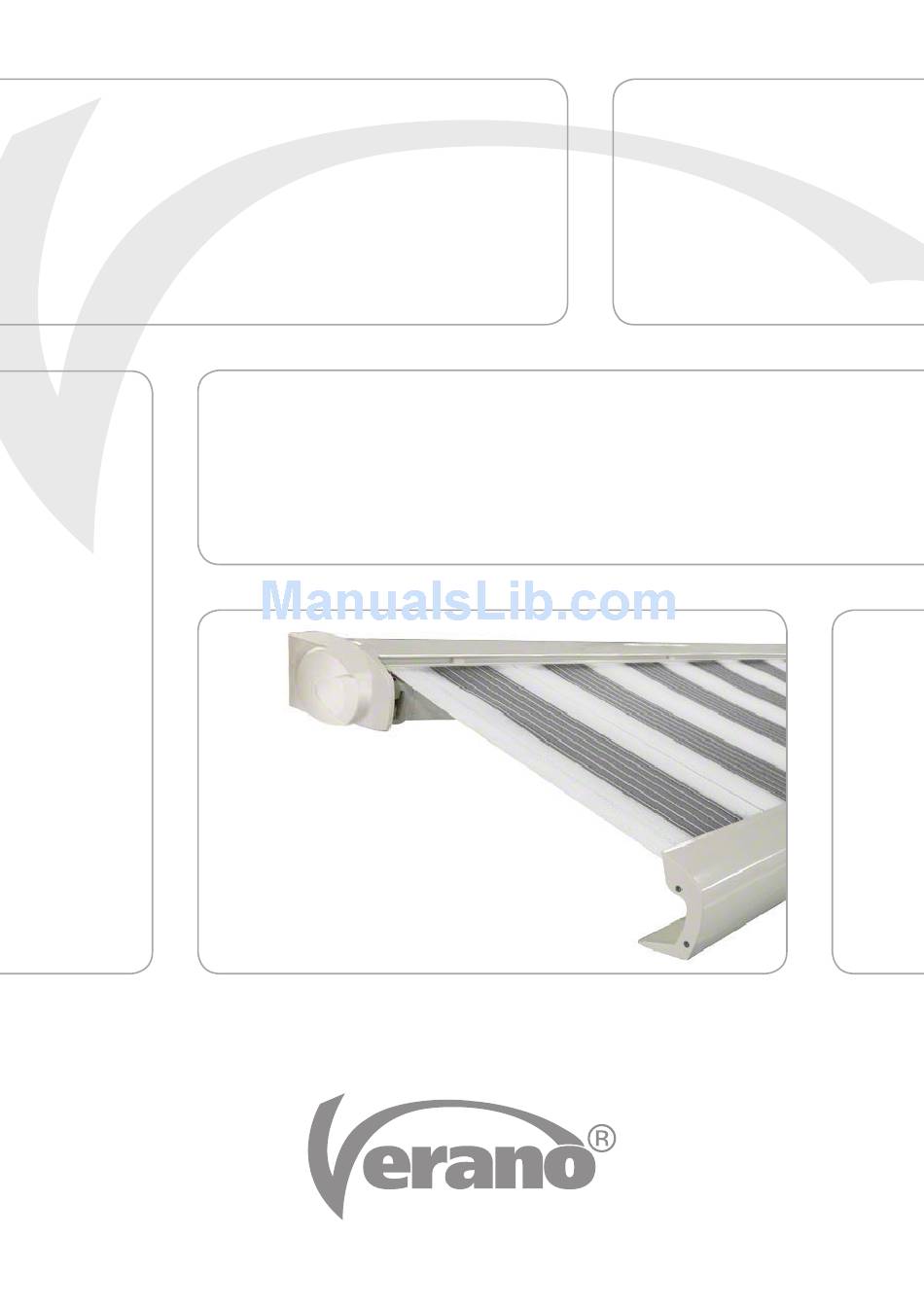

- Page 1 0800 328 6250 www.samsondoors.co.uk Installation manual Awning cassette V296 Santos www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk...
- Page 2 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Content 1. Awning 2. Side caps 2x 3. Wall supports 2x 4. Center support(s) (with an awning bigger than 400 cm) 5. Locking bolts 2x, provided with nuts 6. Control a.
- Page 3 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Specifications V296 Santos Sizes in mm Wall mounting Front view wall support Awning section Ceiling mounting 12,25 108,50 Front view ceiling support Awning section Top view ceiling support Minimum width per fabric projection...
- Page 4 General warning Mounting the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the mounting of this specific Verano® product. If you cannot mount the product yourself, you can always opt for professional mounting. The mounting team of Verano®...
- Page 5 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Mounting wall supports 1.1 Marking the holes Mark the holes for the wall supports (A) and potential for the intermediate support (B) on the wall. These holes need to be aligned level, horizontal and vertical, according to the sizes X and Y in figure 1.1.
- Page 6 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Mounting the awning Placing the awning 1. Hang the awning in the wall supports (A). View figure 2.1 and 2.2. 2. Make sure that the awnings is mounted level. If not, correct this.
- Page 7 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos 2.2 Securing the awning 1. Slide the locking block over the wall support (A). View figure 2.4. 2. Secure the awning by screwing the locking block with the included screw.
- Page 8 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Electrical wall control 3.1 Connecting the wall control Follow the steps below: 1. Check the position of the motor (left or right) seen from the outside. 2. When you have the control inside, first feed a cable through the hole in the wall that you drilled earlier.
- Page 9 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Remote control 4.1 Connecting the remote control Follow the steps below: 1. If you have the power inside, please first enter the cable through the hole you drilled earlier. 2. Mount the plug regarding to the following color scheme: •...
- Page 10 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Incline angle 5.1 Standard factory adjustment The height of the front bar is standard set between 1,80 meter and 1,90 meter at a mounting height of 2,70 meter. 5.2 Adjusting the incline angle When you want to adjust the awning other than the factory adjustment, follow the steps below: 1.
- Page 11 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Valance 6.1 Placing the valance Follow the steps below to place the valance. View figure 6.1. 1. Remove on one side the cover of the front bar. The fabric tendon is stored in the front bar.
- Page 12 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Wall strips Wall strips must be used at a situation with less than five rows of stones above the mounting place. The strips divide the power over a bigger wall surface, so that the wall can carry more weight. View figure 8.1...
- Page 13 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos 2. Measure the strips carefully on the wall. Keep the placing of the wall brackets on the strips and width size X in figure 1.1 in mind. The wall strips need to be levelled horizontal and vertical. The mounting holes need to be in the middle of the stone.
- Page 14 0800 328 6250 www.samsondoors.co.uk Installation manual awning V296 Santos Ceiling mounting 9.1 Mounting the ceiling brackets The awning can also be mounted to the ceiling using ceiling brackets (view figure 9.1). 1. Mount the mounting brackets to the ceiling brackets.
- Page 15 www.samsondoors.co.uk 0800 328 6250 www.samsondoors.co.uk User information A high quality cloth is integrated into your chosen in your screen that are difficult to detect and impossible screen. In view of optimal quality we have chosen a high to avoid. They are inherent in all technical materials but technology production process in which every step of do not reduce the technical presentation and durability the production is strictly selected.
