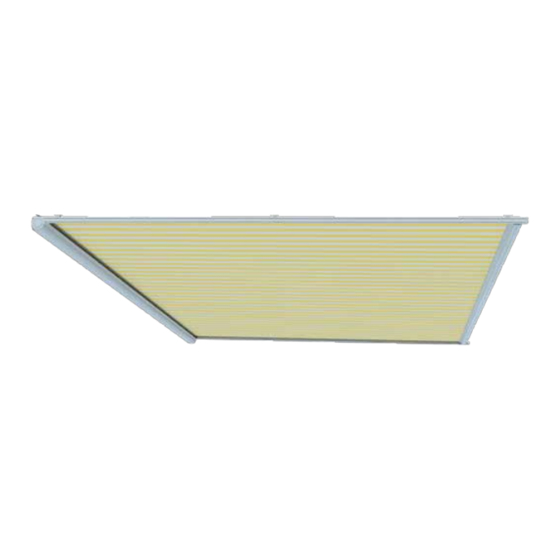

- Page 1 INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR...
-
Page 2: Package Content
INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR Package content Standard version including: 1. Veranda sun protection V612 Hamar 2. Cover profile 3. Guide rail left 4. Guide rail right 5. Covers (2x) 6. Rail holders (standard installation)* 7. Installation brackets for the boxing (2x) 8. - Page 3 General warning Mounting the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the mounting of this specific Verano® product. If you cannot mount the product yourself, you can always opt for professional mounting.
-
Page 4: Specifications
INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR Specifications Sizes in mm (= distance up to the wall) Fig. 2 Side view veranda sun protection (axis size railholder) order size Fig. 1 Upper side view veranda sun protection Fig. 3 Sectional view veranda sun protection montage- montage- montage-... - Page 5 INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR Installation options guide rail Rail holder (standard installation) Wall installation bracket (side fixation) Extended installation bracket, size 8 Extended installation bracket, size 10 Installation foot size 8/13/18 12,8 17,8 13,2 18,2 23,2 Subject to misprints, errors and technical modifications.
- Page 6 INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR Installation below the roof • Install the installation brackets for the boxing on the • Install the rail holders/installation feet to the beam. beams of the veranda. See figure 1 on page 3 for the See figure 1 on page 3 for the dimensions.
- Page 7 INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR • Fasten all rail holders evenly with an allen key (#5). • Roll out the sun protection fabric for about 40 cm and install the included allen screws (#5) to the inside of both guides (on the side of the boxing).
- Page 8 INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR Fig. A Fig. B Hanging the pull Trekkoord-lus Trekkoord-lus ophangen ophangen cord loop Hanging the pull Trekkoord-lus Trekkoord-lus ophangen cord loop ophangen Process of the cord in the projection profile on the left Process of the cord in the projection profile on the right 2 13 •...
- Page 9 INSTALLATION MANUAL VERANDA SUN PROTECTION V612 - HAMAR Turn direction cord layer Turn direction cord layer • Unscrew the safety screw. • Roll out the veranda sun protection and check the process of the cord during the rolling. The first cord layer Attention! wraps around the dial from right to left.
