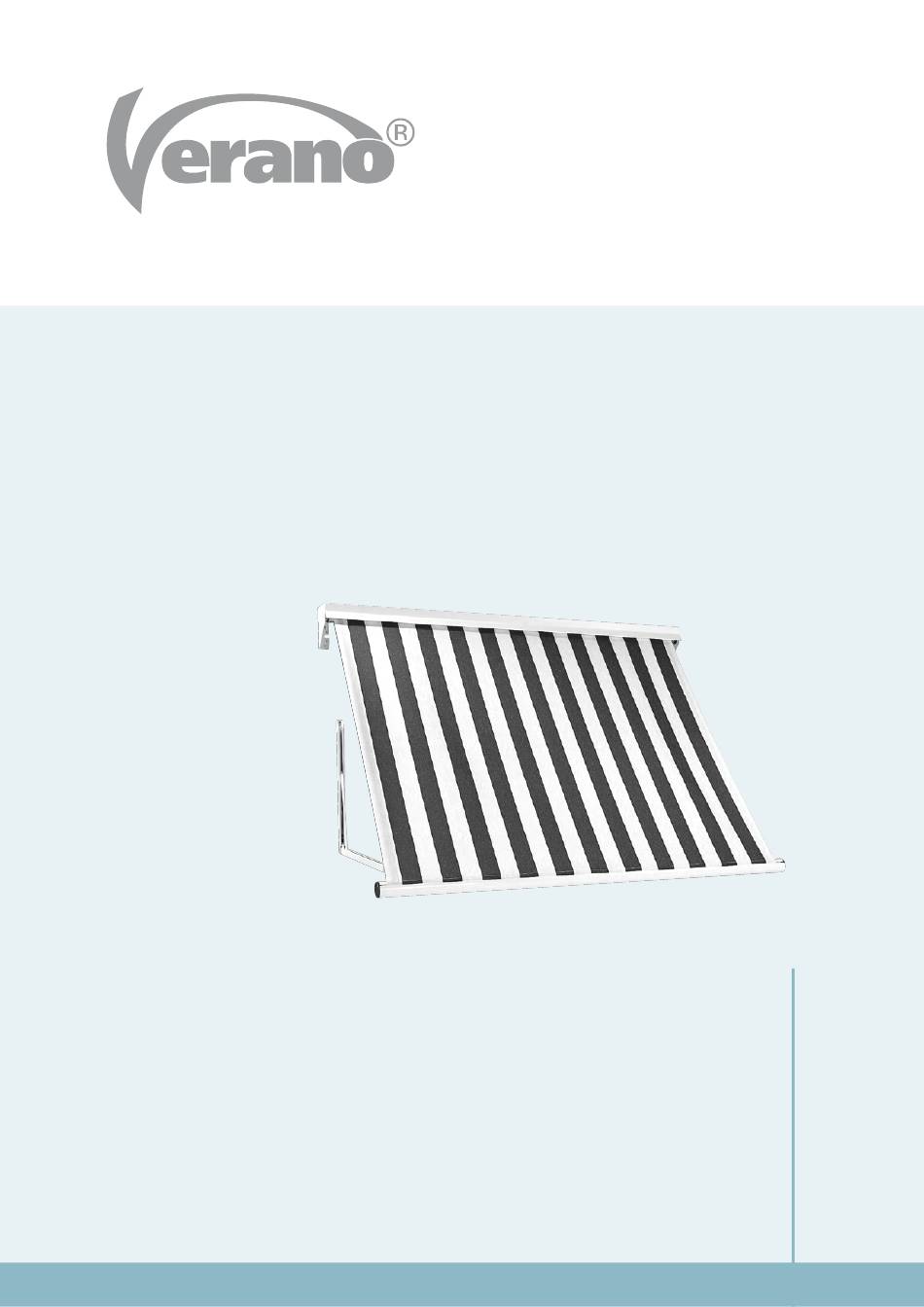

INSTALLATION MANUAL
DROP-ARM AWNING V120 - NAPOLI

Advertisement

loading
Need help?

Need help?

Do you have a question about the DROP-ARM AWNING V120 NAPOLI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Verano DROP-ARM AWNING V120 NAPOLI

Summary of Contents for Verano DROP-ARM AWNING V120 NAPOLI

  • Page 1 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI...

  • Page 2: Necessary Tools

    INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Content 1. Drop-arm awning * 2. Control a. Manual control: crank handle b. Manual control: strap coiler c. Electrical control: switch + plug d. Remote control: remote control + plug * Depicted awning has manual control Necessary tools In case of electrical control: •...
  • Page 3 Important before installation General warning Installing the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation of this specific Verano® product. If you cannot install the product yourself, you can always opt for professional installation. The installation team of Verano®...

  • Page 4: Wall Installation

    INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Wall installation 1.1 Marking the holes for the wall supports The two wall supports (A) need to be levelled, both horizontal and vertical. See figure 1.1 and 1.2. They need to be installed to the wall in one line. If the wall supports are not levelled (unequal position of the arms as a result), the awning will not function well.
  • Page 5 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI 1.3 Drilling the hole for control 1. Carefully mark the extension hole where the cable or strap needs to go inside for the control. - Cable: the hole needs to be exactly at the same height as where the cable comes out of the box. - Strap: use the cleft in the wall support (fig.
  • Page 6 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Installation of the drop-arms 2.1 Marking the holes for the drop-arms Mark the drop-arms following the drawing below. The drop-arms need to be placed in one line. If the positions of the drop-arms are not levelled, the awning will not function well. The pictured sizes are the minimal sizes that the drop-arm needs to fall inside the drop-arm awning.
  • Page 7 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI 2.3 Setting the sheets to the arms Slide the sheets in the ends of the arms. Make sure that the sheets are faced downwards (fig. 2.5). Fixate the sheets with the included screws (fig. 2.6) fig.
  • Page 8 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Installation of the strap coiler (outside) 1. Install the strap guide to the wall support using two recessed screws. 2. Lead the pull-up strap through the strap guide. Make sure that the pull-up strap is not twisted. 3.
  • Page 9 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI 7. Lead the end of the pull-up strap through the strap coiler and place the holes over the flap. Attention! Never shorten the strap before installation! You need the strap length when the drop-arm awning opens. 8.
  • Page 10 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Installation of the strap coiler (inside) 1. Put the pull-up strap through the guide pulley. Make sure that the pull-up strap is not twisted. 2. Place the guide pulley in the control hole. 3.
  • Page 11 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI 7. Lead the end of the pull-up strap through the strap coiler and place the holes over the flap. Attention! Never shorten the strap before installation! You need the strap length when the drop-arm awning opens. 8.
  • Page 12 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Installation of electrical control (inside) 1. Determine the position of the switch and mark two holes on the inside of the wall. 2. Drill the holes with a 6 mm drill. Ø6 230 V 3.
  • Page 13 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI 5. Connect the 4-wired cable of the motor and the 3-wired cable and plug following the scheme below. If necessary, ask an installer for advise. Motor left (seen from the outside) Motor right (seen from the outside) 6.
  • Page 14 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Setting of the front bar Make sure that the front bar is located at an equal distance from the cap over the whole width (fig. 6.1). Set the front bar by loosening the bolts of the drop-arm in one turn (fig 6.2). After that, the drop-arm can slide up and down (fig. 6.3). If the front bar is set well, you can fix the bolts of the drop-arm (fig 6.4).
  • Page 15 INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI Valance 7.1 Installation of the valance Follow the steps below to install the valance. See figure 7.1. 1. Remove the cap of the front bar at one side. The fabric tendon is hidden in the front bar. 2.

  • Page 16: User Information

    INSTALLATION MANUAL DROP-ARM AWNING V120 - NAPOLI User information A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology production process in which every step of the production is strictly selected. By way of automation, permanent checks, laboratory tests and finely detailed after-care, nothing is left to chance.
