Summary of Contents for Verano V360

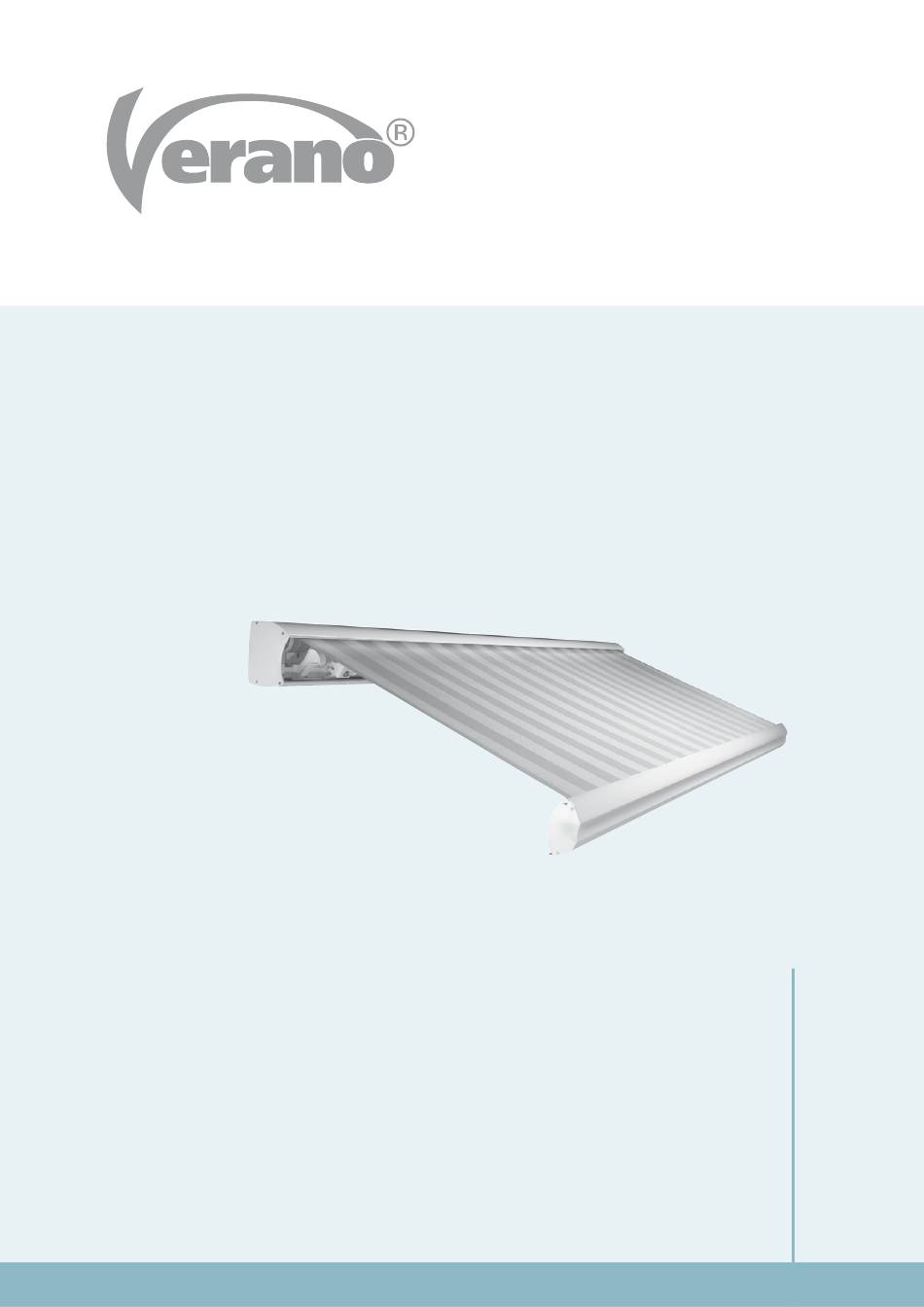

- Page 1 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ...
-
Page 2: Necessary Tools
INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Content 1. Awning 2. Wall supports 3. Control a) Manual controle: Crank handle b) Electrical: Switch and plug c) Remote controlled: Remote control and plug * The displayed awning is the electrical version. - Page 3 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Specifications V360 St. Tropez Wall mounting Sizes in mm Back cover is optional Front view wall support Awning section Ceiling mounting Projection Projection 5º 57,7 20º 127,5 35º Top view ceiling support Awning section...
- Page 4 General warning Installation of the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation of this specific Verano® product. If you cannot install the product yourself, you can always opt for professional installation.
- Page 5 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Installation of the wall supports 1.1 Marking the holes View the stickers on the back side of the awning. See figure 1.1. The wall supports need to be placed where the stickers are located.
- Page 6 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ 1.2 Drilling the holes Drill the installation holes. Our advise is to drill with a 14 millimeter masonry drill in case of a wall made of concrete or stone. Use matching plugs and bolts of high quality.
- Page 7 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Installation of the awning 2.1 Placing the awning Hang the awning in the wall supports. See figure 2.1 and 2.2. fig. 2.1 Placing the awning fig. 2.2 Detail wall support 2.2 Securing the awning Lock the wall supports by using the included locking bolts.
- Page 8 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Electrical wall control 3.1 Connecting the wall control 1. Check the position of the motor (left or right), seen from the outside! 2. If you have inside control, first guide the cable through the hole in the wall you drilled before.
-
Page 9: Remote Control
INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Remote control 4.1 Connecting the remote control 1. If the power point is located on the inside, first guide the wire through the hole in the wall you drilled before. 2. Install the plug according to the color scheme below:... - Page 10 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Pitch 5.1 Standard factory setting The passage height for the front bar is standard set between 1,80 and 1,90 meter at an installation height of 2,70 meter. 5.2 Setting the pitch If you want to set the awning different from the standard factory setting, please follow the steps below: 1.
-
Page 11: Front Bar
INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Front bar 6.1 Setting the front bar The right position is reached if the front bar connects perfectly to the top- and bottom cover when the awning is closed. See figure 6.1. Situation closed... - Page 12 INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Valance 7.1 Installation of the valance Follow the steps below for the installation of the valance. See figure 6.1. 1. Unscrew the cover of the front bar on one side. The fabric tendon is locked in the front bar.
-
Page 13: Ceiling Mounting
INSTALLATION MANUAL AWNING V360 - ST. TROPEZ Ceiling mounting 8.1 Mounting the ceiling brackets The awning can also be mounted to the ceiling using ceiling supports (view figure 9.1). 1. Mount the wall supports to the ceiling supports. 2. Measure the ceiling supports on the ceiling. Please mind the placing of the wall supports to the ceiling supports and width size X in figure 1.1. -
Page 14: User Information
INSTALLATION MANUAL AWNING V360 - ST. TROPEZ User information A high quality cloth is integrated into your chosen screen. In view of optimal quality we have chosen a high technology production process in which every step of the production is strictly selected. By way of automation, permanent checks, laboratory tests and finely detailed after-care, nothing is left to chance.
