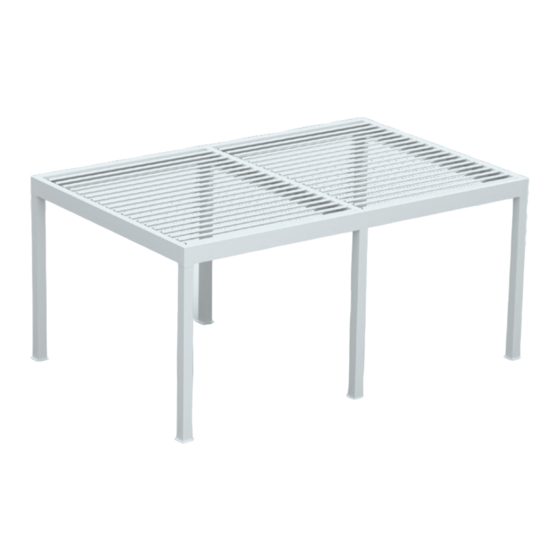

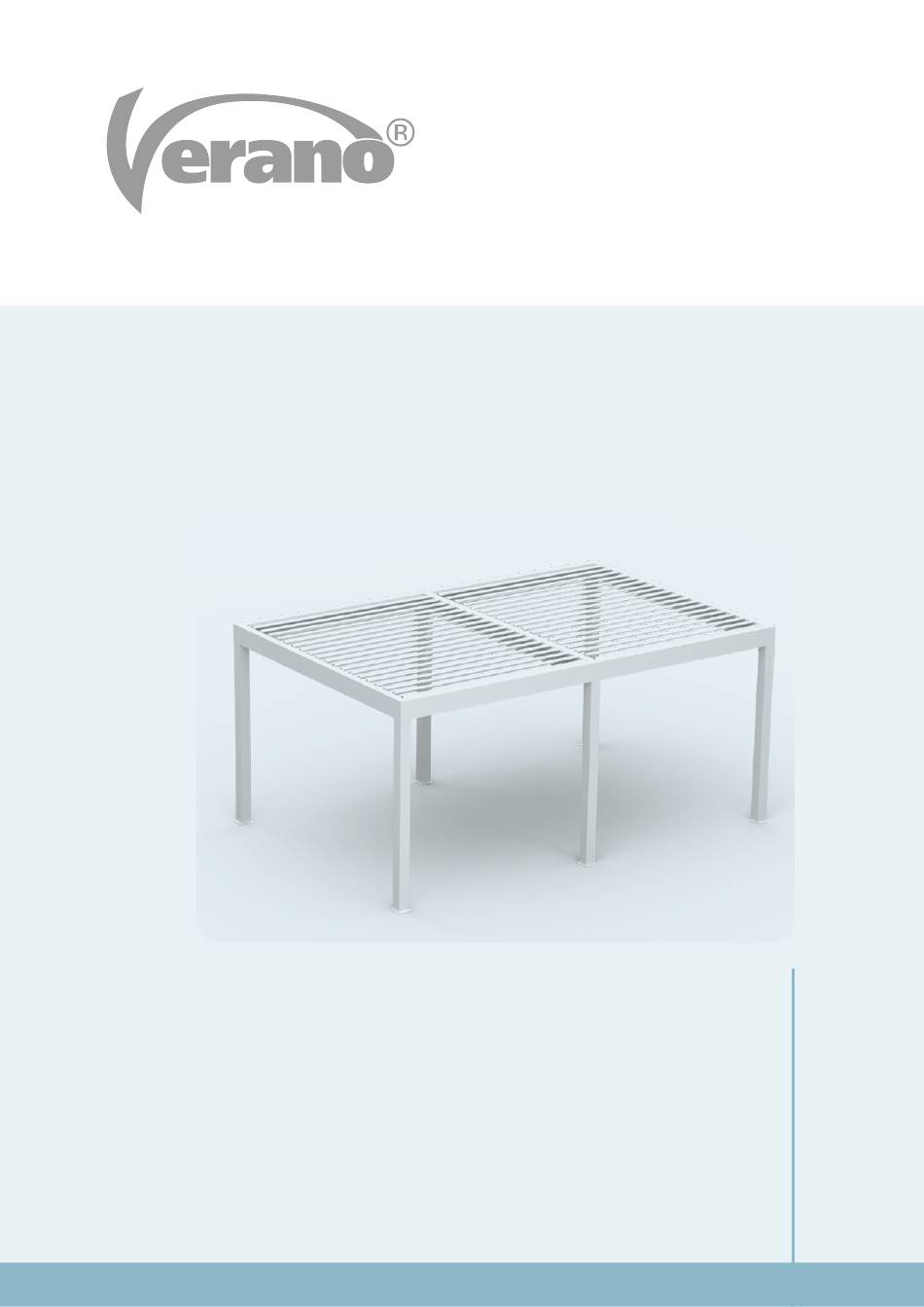

- Page 1 INSTALLATION MANUAL LOUVERED ROOF V880 - RAPOLLO...
-
Page 2: Table Of Contents
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Index page Important before installation Exploded view Partslist Single louvered roof Installation of the posts Installation of the top frame Installation of the casing profile Installation of the gutter profile Placing the drainage Installation of the louvered roof 4. Finish Connected louvered roof Installation of the intermediate posts Installation of the top frame Installation of the intermediate vessel-profile... -
Page 3: Important Before Installation
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Important before installation Gerenal warning Installing the Verano® product yourself is at your own risk. Only use this instruction as a tool and for the installation of this specific Verano® product. If you cannot install the product yourself, you can always opt for professional installation. The installation team of Verano® is pleased to help you. -
Page 4: Exploded View
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Exploded view Single louvered roof Connected louvered roof Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. 128220 86-191127EN 17 79- 160404(2) -
Page 5: Partslist
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Partslist Single louvered roof Connected louvered roof 1. Gutter profile 20. Intermediate vessel-profile 2. Gutter click profile 21. Intermediate post 3. Click-frame gutter profile 22. Cap intermediate post 4. Gutter connection 23. Filling profile intermediate post 5. Corner plate 24. Footplate intermediate post 6. -
Page 6: Single Louvered Roof
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Single louvered roof Installation of the posts app. 300 mm With concrete foundation blocks Without concrete foundation blocks Foundation For stability we recommend using concrete foundation blocks. If the V880-Rapallo is installed onto heavy patio tiles, this will serve as a foundation. 90° Installation of the posts (14) • Place the concrete foundation blocks. •... -
Page 7: Installation Of The Top Frame
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Installation of the casing profile Installing the casing profile (6) with the corner reinforcement (7) • Seal the complete edge of the casing profile before installation. • Slide the corner reinforcement into the casing profile. Make sure that you slide the correct profile-length on the correct side of the corner reinforcement. • The corner reinforcement has two nuts on it. Tighten the casing profile from below onto the corner reinforcement with included bolts. • Mount the casing profiles onto the posts (16). Install with included sheet metal screws. • Mount the corner reinforcement on the inside of the post by tightening the two nuts. The base of the V880-Rapallo is ready after the installation of the casing profile. You can now adjust the V880-Rapallo using the screws in the base plate. Subject to misprints, errors and technical modifications. -
Page 8: Installation Of The Gutter Profile
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO ± 600 mm SILICON SILICON Installation of the gutter profile (1) • Seal the edges of the gutter profile before the installation. Apply this on every corner. • Slide three gutter connections (4) on every corner in the gutter profile and tighten them with grub screws. • Place a corner plate (5) on the corners with drainage. First seal the complete bottom and sides of the corner plate! • Place the gutter on the casing profile (6). open closed ± 600 mm 250 mm hole drainage (bij W x P = 4 x 4 meter : 2 pieces) hole drainage drill line ± 600 mm closed Top view 4 x 4 m roof open... -
Page 9: Placing The Drainage
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Placing the drainage • Place the gutter outlet (13) in the corners with drainage. • Seal the corner plate and gutter outlet well with sealant to make sure all of the rainwater will be discharged through the drain grates. • Also seal the corners without water drainage at all seams! Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. -
Page 10: Installation Of The Louvered Roof
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Installation of the louvered roof Motor M6x10 M6x10 Installation of the lateral guides (detail A) • Slide the lateral guides (9) in the guides that are connected to the motorbox (8). If necessary, first de-install the cover. • Fixate with the stainless steel screws M6 x 10. Installation of the rear profile (detail B) • Slide the rear profile (10) in the lateral guides. • Fixate with the stainless steel screws M6 x 10. Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. - Page 11 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Slat assembly 1 Installation of of the louvered roof • Lower the louvered roof into the gutter. Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. 128220 86-191127EN 17 79- 160404(2)
- Page 12 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Optional Installation of the motor belt • Slide the motor belt over the idler pulley in the lateral guide. • Optional: loosen the idler pulley from the axle, place the motor belt around, install the idler pulley again and secure with a ring. M6x20 M6x25 Tensioning the motor belt • Loosen screw M6 x 25 anticlockwise. Tension the motor belt by sliding the idler pulley. • After the motor belt has been tensioned, the pulley support block needs to be fixated to the lateral guide by tightening the stainless steel screws M6 x 20.
- Page 13 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Slat assembly 2 Inserting slat assembly 2 • Insert slat assembly 2 into the pocket in the lateral guides. • Take care to hook the slat pivots into the slat levers. • When they are all hooked together, tighten with the M5 grubscrews. Repeat the same operation for all subsequent slat assemblies. Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. 128220 86-191127EN 17 79- 160404(2)
- Page 14 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Last slat assembly Attention! No pivot Inserting the last slat assembly • After inserting all the central slat assemblies, the last slat assembly must be inserted. • Move the slide on the motor belt to the pocket in the lateral guide using the remote control. • Hook the second to last pivot of the assembly into the slide. • Take care to hook the slat pivots into the slat levers. When they are all hooked together, tighten with the M5 grubscrews. (see step 11). Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden.
- Page 15 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO 4.8x45 Checking the securing of the upper slat • Move all the slats to the motorbox using the remote control. • De-install the screw covers. • Check, on both sides, if the first slat is fixated firmly to the upper slat fixing slide with two 4.8 x 45 mm screws. • Close the holes in the lateral guides using the screw covers. 4.2x12 • Close the insertion pocket in the lateral guides with the cover. •...
- Page 16 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Check the seal between the slat assembly and the motor box. • Close the louvered roof using the remote control and check if all the bearings run correctly inside the guides. Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden.
- Page 17 MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO • Push the rubber (12) in the cover profiles (11). • Click the cover profile to the left- and right guide profile. Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. 128220 86-191127EN 17 79- 160404(2)
-
Page 18: Finish
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Finish 3.8x45 Motor cable hole • Open the hatch of the box to gain access to the motor cable. • Determine the location of the cable output and drill a hole. • Fixate the cable to prevent disruption of the motor belt and the pulley mechanism. •... -
Page 19: Installation Of The Intermediate Posts
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Installation linked louvered roof Before you install a linked louvered roof, please follow the same procedures as for a single roof. Only the installation of optional intermediate posts and intermediate vessel-profiles differs. Installation of the intermediate posts • Install the foundation blocks. • T emporary fixate the two footplates (24) for the interme- diate posts. • Install the intermediate posts (21). Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. 128220 86-191127EN 17 79- 160404(2) -
Page 20: Installation Of The Top Frame
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO Installation of the top frame Installation of the intermediate vessel-profiles (20) • Seal the edges of the intermediate vessel-profiles before installation. Freestanding, 6 posts • Slide the two intermediate vessel-profiles (20) to the corner brackets which are already pre-installed to the vessel-profile (6). • Install the included screws. Façade installation with wall support, 2 or 3 posts • Slide the intermediate vessel-profiles (20) to the corner brackets which are already pre-installed to the vessel-profile (6). •... -
Page 21: Installation Of The Gutter Profile
MONTAGE-INSTRUCTIE LOUVERED ROOF V880 - RAPALLO SILICON SILICON Installation of the gutter (A + B) • Slide three corner connections (4) on every corner to the gutter profile and fixate with the allen screw. • Place the corner plate (5) to the corners with water drainage. First seal around the corner plate and bottom! • Install both gutters to the vessel-profile (6). Finish Install the cap (22) and the filling profiles (23) to the intermediate post (21). These have the same length as the intermediate post (21) and these may need to be shortened. Subject to misprints, errors and technical modifications. Drukfouten, fouten en technische wijzigingen voorbehouden. 128220 86-191127EN 17 79- 160404(2)
