- Page 1 Operating Manual for Universal Table Top Centrifuge Z 366 © Hermle Labortechnik GmbH Z366_V1.18_eng...
-
Page 3: Table Of Contents
Pre-Selection of Speed / RCF-Value ......................17 2.3.2 Pre-Selection of Running Time ........................17 2.3.3 Pre-Selection of Brake Intensity and Acceleration..................18 Radius Correction ............................19 Program ................................19 2.5.1 Storage of Programs ............................. 19 © Hermle Labortechnik GmbH Z366_V1.18_eng... - Page 4 Table 6 (Part 1): Radius Correction......................... IX Table 6 (Part 2): Radius Correction.......................... X Table 6( Part 3): Radius Correction......................... XI Table 7: Abbreviations ............................XI Redemption Form / Decontamination Certificate ....................XII 8. NOTES ..........................XIV Z366_V1.18_eng © Hermle Labortechnik GmbH...
-
Page 5: Product Description

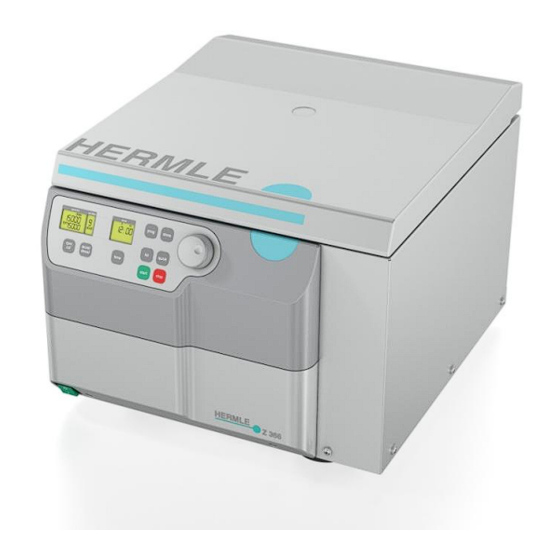

For any resulting damage, the company, Hermle Labortechnik, is not liable. 1.3 Brief Description The unit type Z 366, is a non refrigerated universal centrifuge, which we offer in two voltage variations 230V or 120V. The centrifuge can be used with swing-out rotors and angle rotors. -
Page 6: Operating And Display Elements
Run Parameters Power Switch Control Panel Display rpm/rcf Speed/ g-Force accel/decel Acceleration / Deceleration Intensity time Centrifugation Time Lid Release quick Short Running start Start Centrifugation stop Stop Centrifugation prog Retrieving Stored Programs store Program Store Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 7: Lcd-Display
Rotor-No. "error" "rpm" "service" "rcf" h m s "accel" Indication: After switching on the centrifuge, the display, "rpm/rcf"(A-1) shows the loading status, the current software version and finally the model type (e.g. Z 36 HK). © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 8: Signs And Indications Of The Centrifuge
Instructions for Disposal (see P. 28) Direction of Rotation – clockwise rotation for the rotor drive Reference for Loading Rotors 1.6.2 Product Nameplate (Example) Company Address: Hermle Labortechnik GmbH, Siemensstr. 25, D-78564 Wehingen TYPE: Type Designation of the Product REF: Order No. of the Product... -
Page 9: Warning And Information Signs
EN 61010-2-020. • The HERMLE Z 366 is "non explosion-proof" and must not be operated in explosion- endangered areas or locations. Centrifugation of flammable, explosive, radioactive, or such substances, which chemically react with high energy, is strictly prohibited. If used in such environment, this is at the users own expense. -
Page 10: Warranty
Do not run the centrifuge, if mechanical or electrical assembly groups have been tampered with, by unauthorized personnel. • Do not use accessories such as rotors and buckets, that are not approved by HERMLE Labortechnik GmbH, except commercially available centrifuge tubes, made of glass or plastic. -
Page 11: Installation Of The Centrifuge
1.7 Installation of the Centrifuge 1.7.1 Unpacking the Centrifuge Model Z 366 is supplied in a carton. Remove the strap retainer, open the carton, and remove the padding. Lift the centrifuge on both sides (see Figure 1) with an appropriate number of helpers and place it on the laboratory table. -
Page 12: Attention Before First Use
If the motor shaft is conical remove the collet from the rotor by turning it The collet is no longer counter clockwise needed If the motor shaft is cylindrical Let the collet inside the rotor Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 13: Basic Adjustments
All changed settings must be confirmed by the key, "start" (9). A confirmation screen will appear with the word; "store" in the display box, "rpm/rcf"(A-1) - Only then, the pre-selections are valid, (see Figure 3)! © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 14: Sound Signal Turn On / Off
9 (loud), with the adjustable knob (1), (see Figure 5). After the settings have been stored by user (see 1.8.1), the normal program mode can be changed back again by switching off the centrifuge, for a short period. Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 15: Song Selection - End Of Run
"rpm/rcf" (4), the keyboard sound (On) or (Off) can be turned on, with the adjustable knob (1), (see Figure 7). After the settings have been stored by user (see 1.8.1), the normal program mode can be changed back again, by switching off the centrifuge, for a short period. © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 16: Retrieving Operating Data (Operated By Skilled Or Service Engineer Only!)
(1). The respective error codes appear in the display, "rpm/rcf" (A- 1). Please refer to Table 6: "Error Messages“, (see APPENDIX P.VIII). Switch off the centrifuge, to return to the normal program mode. Figure 8 Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 17: Operation
Each rotor indicates what the maximum capacity is per hole. (It is allowed to operate e.g. a 12-place- rotor with 2 or 4 loaded tubes only, but the loaded borings must be opposite of each other). © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 18: Loading Swing Out Rotors
The bolts of the rotor must be greased with the HERMLE Rotorgrease (Order No. 38-5656). The sample tubes have to be filled evenly, by eye, and set into the drillings or tube racks. The weight difference of the loaded buckets should not exceed 1.0 g. -
Page 19: Loading And Overloading Of Rotors
In case of any questions, please contact the manufacturer! 2.1.5 Removing the Rotor Completely, untighten the rotor fixing nut (2. screw over the stiff point) and lift the rotor vertically out of the centrifuge, (see Figures 9 and 10). © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 20: Lid
For all number marked text, please refer to Figure 16. ATTENTION: Don't grip your fingers between the lid and the device or the locking mechanism, when closing the lid! Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 21: Pre-Selection
3. Range: Continuous Run "cont", can be interrupted by the key, "stop" (10). -The running time can be pre-selected, with the lid opened or closed. -To activate the setting of the running time, press the key "time" (6). © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 22: Pre-Selection Of Brake Intensity And Acceleration
For all number marked text, please refer to Figure 20. See Table 4: "Acceleration and Deceleration Times", (APPENDIX P. VII). This table shows the acceleration and deceleration times, for the acceleration and deceleration stages 0 to 9, for permissible rotors. Figure 19 Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 23: Radius Correction
"program", (see Figure 21). With the adjustable knob (1), choose the desired program number. If a program number is already occupied, in the display "rpm/rcf" (A-1), the words "rotor" (M3) and "22x.xx" (M4) will appear, (see Figure 21). Free program numbers will appear as 0. © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 24: Recall Of Stored Programs
"rpm/rcf" (A-1) flashes the word "rotor" (M3). At the same time, the word "FALSE" and the stored rotor number "22x. xx“"(M4) flash in sequence of one another. For all number marked text, please refer to Figure 24. Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 25: Leaving Program Mode
In the display "time" (A-3), the passed running time is indicated from the moment the "quick" key (8) is pressed. By releasing the "quick" key (8), the centrifuge stops and the running time is indicated, until the lid is opened. For all number marked text, please refer to Figure 25. Figure 25 © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 26: The "Stop" Key
With the "stop" key (10), the run time can be interrupted, at any time, (see Figure 26). After pressing the key, the centrifuge decelerates with the respective pre-selected intensity, down to a standstill. Figure 26 Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 27: Imbalance Detection
Load the rotor as described in Chapters: 2.1.2 and 2.1.3. When inside the display "time" (A-3), the word "error" along with the number "02" appear, (see Figure Potential Reason for the Error Screen: The imbalance switch is defective. Figure 27 © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 28: Maintenance
Following, lubricate the bolts or sealing, with the recommended HERMLE Rotorgrease - Order No.: 38-5656. Please pay special attention to anodized aluminum parts. Breakage of rotors can be caused by the slightest damages. -
Page 29: Cleaning And Disinfecting Of The Unit
At high temperatures, autoclaving residue may corrode and destroy the plastic. The objects must be thoroughly washed with distilled water, after the cleaning, but before the autoclaving. Residues of any cleaning liquids, may cause fissures, whitening and stains. © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 30: Glass Breakage
"TÜV Nord CERT GmbH, Certification Body Consumer Products, Essen (Germany)", in accordance with Annex AA of IEC 61010-2-020. The certificates can be downloaded on our webpage, www.hermle-labortechnik.de. Aerosol-tight rotors and buckets are marked with the label, "aerosol- tight". ATTENTION: Autoclaving, mechanical stresses and contamination, by chemicals or other aggressive solvents, can impair the aerosol-tightness of the rotors and buckets. -
Page 31: Trouble Shooting
• Turn the box spanner to the right (clockwise), up to the limit. ATTENTION: Only turn to the limit, don´t tighten the nut. • Open the lid of the centrifuge. • Switch the centrifuge on again, to proceed with regular function. Figure 28 © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 32: Description Of The Error Message System
4.2.1, p 26. After opening the centrifuge lid, switch on the device again. Error 14 and the lettering "USEr GuidE" should be eliminated. If this error occurs again, please contact the service. Z366_V1.18_eng © Hermle Labortechnik GmbH... -
Page 33: Receipt Of Centrifuges For Repair
In case of a return of a centrifuge, we also ask you to send its power cord. This eliminates the risk of a faulty power cord. If no power cord is attached to the centrifuge, a new one will be delivered and charged. We ask for your understanding. © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 34: Transport, Storage And Disposal
RoHS II Compliance HERMLE Labortechnik GmbH, Siemensstraße 25, 78564 Wehingen, hereby declares and certifies that all components manufactured are RoHS II compliant, according to the definition and restrictions given by the European Parliament Directive 2011/65/EC. This restricts the use of certain hazardous substances in electrical and electronic equipment. -
Page 35: Appendix
Table 6 (Part 1): Radius Correction ................... IX Table 6 (Part 2): Radius Correction ..................X Table 6( Part 3): Radius Correction ................... XI Table 7: Abbreviations ....................... XI Redemption Form / Decontamination Certificate ............XII © Hermle Labortechnik GmbH Z366_V1.18_eng... -
Page 36: Eg - Conformity Declaration
Typ Designation Z 206 A; Z 207 A; Z 207 H; Z 207 M; Z 216 M; Z 306; Z 326; Z 366; Z 446; Z 216 MK; Z 32 HK; Z 326 K; Z 366 K; Z 36 HK; Z 446 K Einschlägige EG-Richtlinien / Normen... - Page 37 APPENDIX Table 1: Technical Data Manufacturer HERMLE Labortechnik GmbH, 78564 Wehingen Z 366 Type Dimensions Width 43 cm Depth 51 cm Height 38 cm Weight without rotor 52 kg Max. Speed 15000 min Max. Volume 6 x 250 ml Max. RCF...
- Page 38 221.52 V02 9000 rpm 11771 xg 221.68 V02 15000 rpm 21379 xg 220.87 V16 15000 rpm 21379 xg 220.87 V15 15000 rpm 21379 xg 221.61 V01 4500 rpm 3724 xg 220.88 V09 15000 rpm 21128 xg Z366_V1.18_eng © Hermle Labortechnik GmbH...
- Page 39 1323 221.22 V02 1439 221.28 V02 2395 221.52 V02 221.68 V02 220.87 V16 220.87 V15 221.61 V01 220.88 V09 in seconds Acceleration Time Deceleration Time from 0 rpm -> U from U -> 0 rpm © Hermle Labortechnik GmbH Z366_V1.18_eng...
- Page 40 Other error frequency converter Over Speed Timeout between controller and RS232 interface Rotor is not allowed in this centrifuge FALSE Inserted rotor does not exist in the program rotor no Rotor is not detected VIII Z366_V1.18_eng © Hermle Labortechnik GmbH...
- Page 41 Angle Rotor 221.19 10.9 701.011 12.2 -0.3 10.6 701.012 10.5 -2.0 14.0 Angle Rotor 221.21 713.015 -4.3 13.2 -0.8 713.020 -4.0 13.3 -0.7 713.025 -4.0 -1.0 713.028 -4.1 12.5 -1.5 713.030 -2.0 713.042 11.7 -2.3 © Hermle Labortechnik GmbH Z366_V1.18_eng...
- Page 42 Angle Rotor 221.22 708.003 -0.5 708.004 -0.4 708.017 -0.7 708.019 -0.2 Angle Rotor 221.28 Angle Rotor 220.87 704.004 -0.3 704.005 -1.0 Angle Rotor 221.52 708.050 12.7 -0.3 708.051 12.8 -0.2 701.011 11.4 -1.6 701.012 701.015 Z366_V1.18_eng © Hermle Labortechnik GmbH...
- Page 43 8,4/8,5 221.68 704.004 -0.2 704.005 -0.7 Table 7: Abbreviations Symbol / Abbreviation Unit Description U (=rpm) ] Revolutions per Minute [min RZB(=rcf) [x g] Relative Centrifugal Force Polypropylene Polycarbonate accel Acceleration decel Deceleration prog Program © Hermle Labortechnik GmbH Z366_V1.18_eng...
-
Page 44: Redemption Form / Decontamination Certificate
Have these substances reached the equipment/assembly? ………………………….. Yes No If so, which ones: ________________________________________________________________ Description of the measures for the decontamination of the listed parts: I confirm the proper decontamination: Company/Dept ._____________ Place and Date: ____________________________________ Signature authorized person: ________________________________________ Z366_V1.18_eng © Hermle Labortechnik GmbH... - Page 45 APPENDIX © Hermle Labortechnik GmbH Z366_V1.18_eng XIII...
-
Page 46: Notes
APPENDIX 8. NOTES Z366_V1.18_eng © Hermle Labortechnik GmbH... - Page 47 APPENDIX © Hermle Labortechnik GmbH Z366_V1.18_eng...
- Page 48 APPENDIX HERMLE Labortechnik GmbH Siemensstraße 25 78564 Wehingen Tel: 0 74 26-96 22-17 Fax: 0 74 26-96 22-49 Email: vertrieb@hermleLT.de Internet: http://www.hermle-labortechnik.de Technical rights reserved ©HERMLE Labortechnik GmbH 2018 Z366_V1.18_eng © Hermle Labortechnik GmbH...
