REVO C
3PH from 60A to 800A - 690V
4

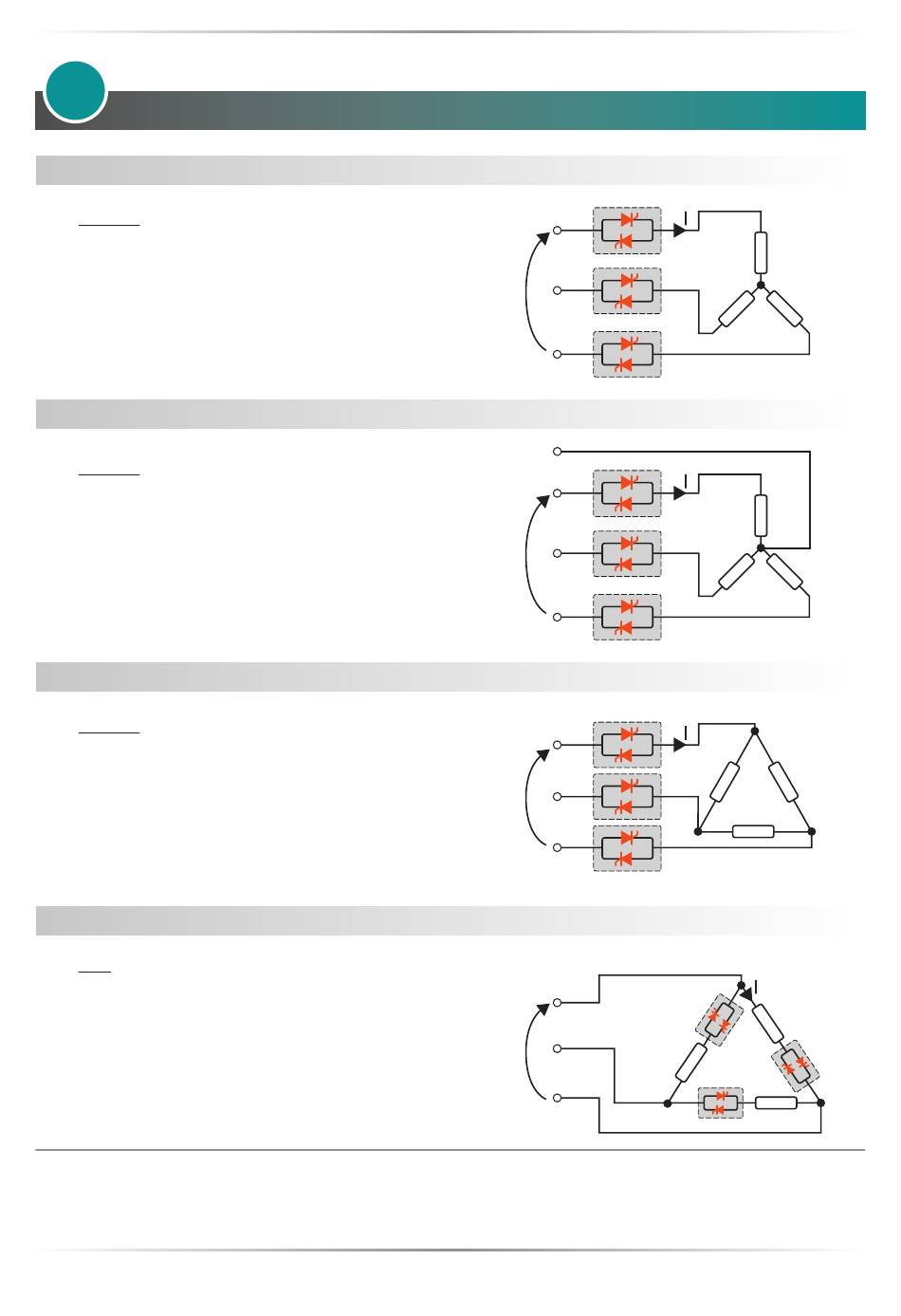

Basic Connections and sizing
Star wiring with resistive load (control on three phases with REVO C-3PH)
P
I=
1,73V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Star wiring with resistive load + Neutral (control on three phases with REVO C-3PH)
P
I=
1,73V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Delta wiring with resistive load (control on three phases with REVO C-3PH)
P
I=
1,73V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Open Delta wiring with resistive load (control on three phases with REVO C-3PH)
I= P
3V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
V
V
V
V
