REVEX
1PH from 60A to 90A
4

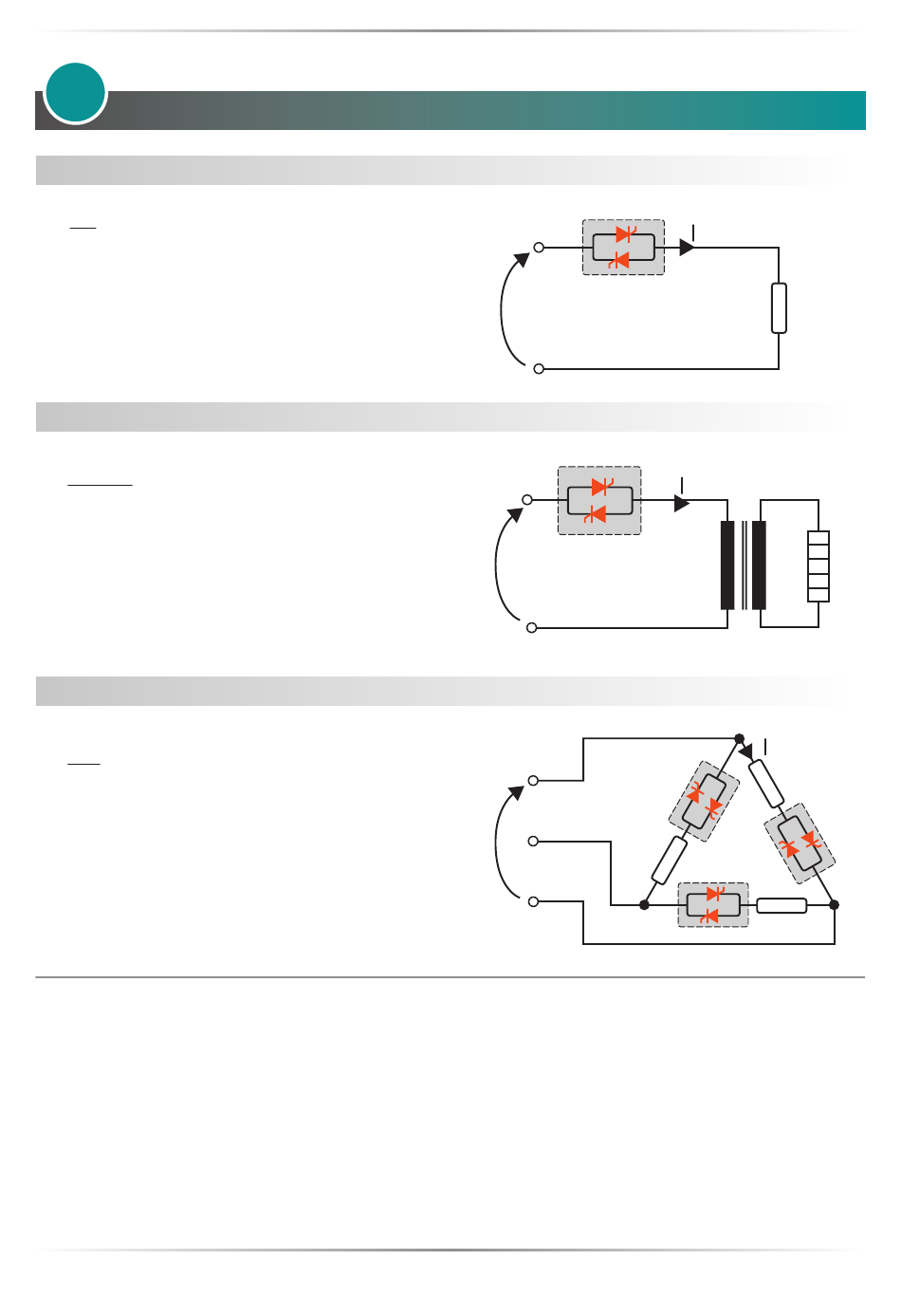

Basic Connections and sizing
Single phase wiring with resistive load
I= P V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
Single phase wiring with inductive load
I= P
Vcosφ
V = Nominal voltage phase to phase
I = Nominal current to the load
P = Nominal power to the load
Open Delta wiring with resistive load
I= P
3V
V = Nominal voltage of the load
I = Nominal current of the load
P = Nominal power of the load
V
V
V
