Danfoss iC7 Series Installation Manual page 6

In-back/Out-top Cooling Kit for FA09-FA10
Installation Guide
16 (0.6)
6x Ø 6 (0.2)

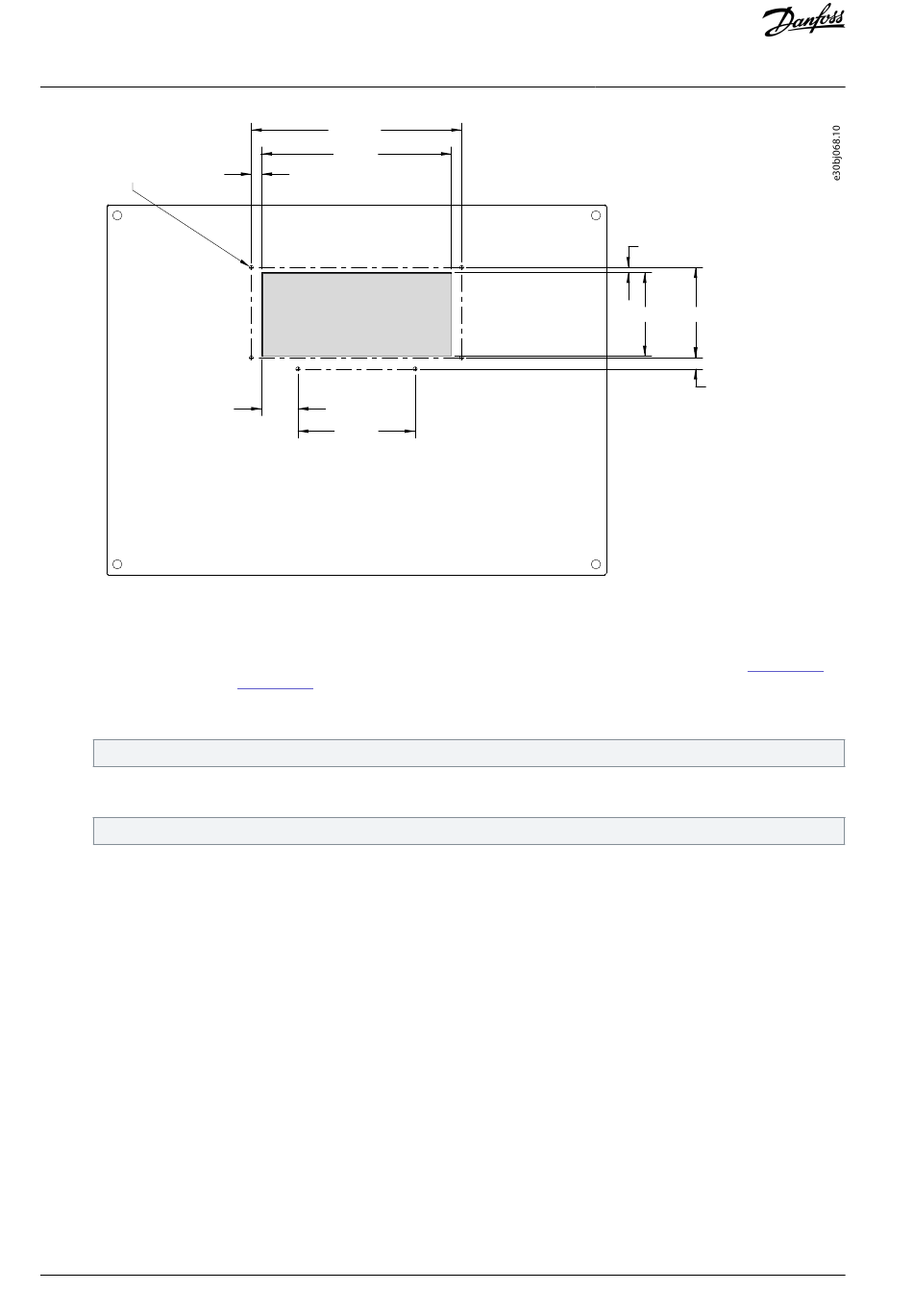

Illustration 4: FA10 Rittal Cabinet Top Plate Template
2.4 Preparing the Mounting Plate
To create mounting holes and a vent opening in the mounting plate, use the following steps. Use the dimensions in
FA09 frequency converters, and
Procedure
1.
Drill 4 mounting holes in the mounting plate using the dimensions in the template.
The holes must match the holes in the frequency converter.
2.
Insert 4 M10 pem nuts (not supplied) in the mounting holes.
3. Cut out the vent opening in the mounting plate using the dimensions in the template.
The opening must match the opening in the lower duct.
6 | Danfoss A/S © 2022.03
323 (12.7)
291 (8.6)
56 (2.2)
180 (7.1)
Illustration 6 for FA10 frequency converters.
Installation
8 (0.3)
128 (5.0) 138 (5.5)
17 (0.7)
Illustration 5
AN371942666355en-000101 / 136R0250
for
