Danfoss iC7 Series Installation Manual page 16

In-back/Out-top Cooling Kit for FA09-FA10
Installation Guide
1. Slide 6 clip-on nuts over the edge of the vent opening in the back plate of the cabinet.
2. Seat the clip-on nuts into the 6 holes around the opening.
3. Affix 2 back vent gaskets to the flange of the back vent, placing 1 gasket on the inner side and 1 gasket on the outer side of
the flange.
4.
Slide the back vent into the opening in the back plate.
5. Fasten 4 M6x12 screws around the inner edge of the back vent.
6.
Secure 6 M5x18 screws in the outer flange of the back vent, attaching the vent to the back plate.
1
2
3
4
5
6

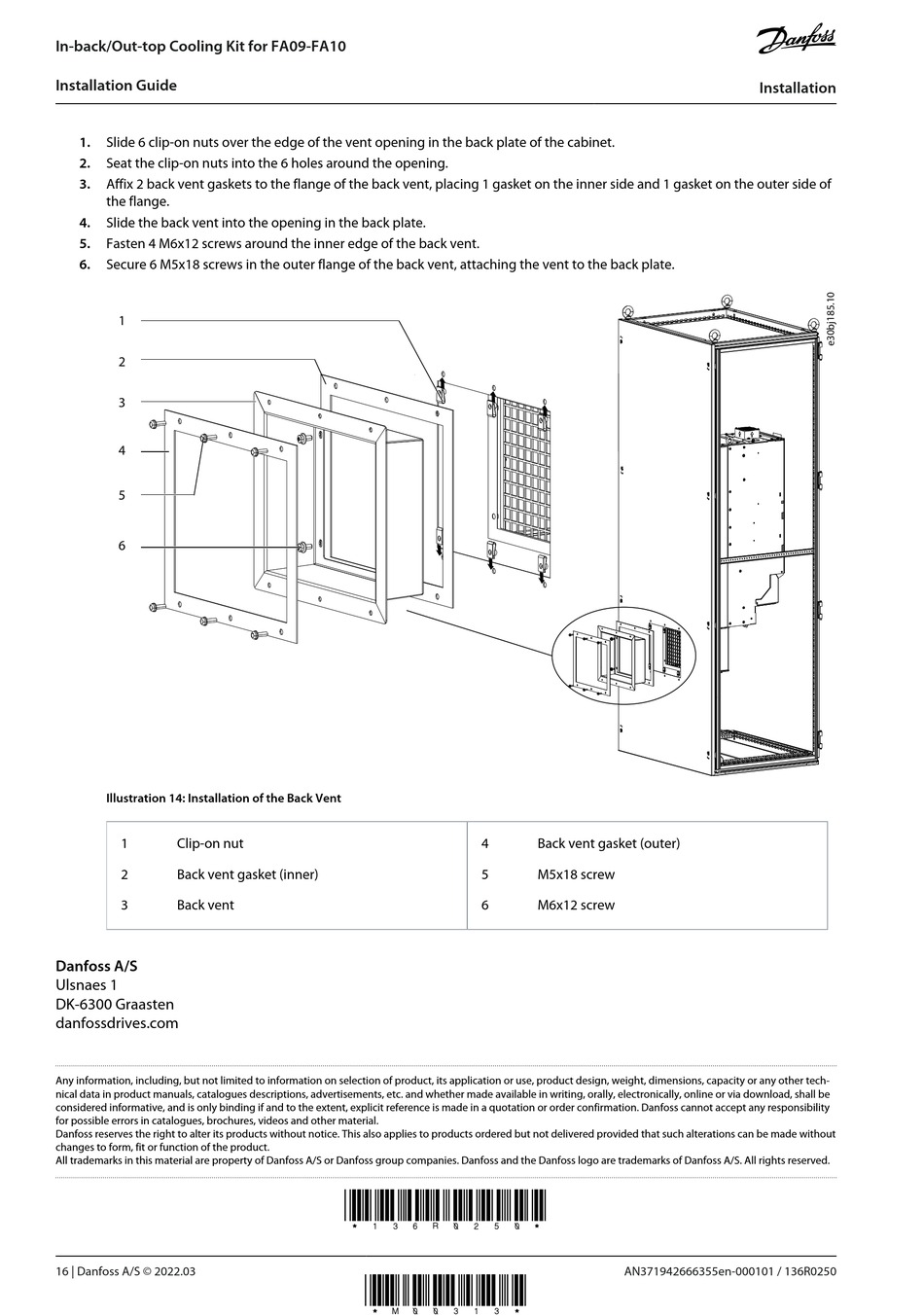

Illustration 14: Installation of the Back Vent
1 Clip-on nut
2 Back vent gasket (inner)
3 Back vent
Danfoss A/S
Ulsnaes 1
DK-6300 Graasten
danfossdrives.com
Any information, including, but not limited to information on selection of product, its application or use, product design, weight, dimensions, capacity or any other tech-
nical data in product manuals, catalogues descriptions, advertisements, etc. and whether made available in writing, orally, electronically, online or via download, shall be
considered informative, and is only binding if and to the extent, explicit reference is made in a quotation or order confirmation. Danfoss cannot accept any responsibility
for possible errors in catalogues, brochures, videos and other material.
Danfoss reserves the right to alter its products without notice. This also applies to products ordered but not delivered provided that such alterations can be made without
changes to form, fit or function of the product.
All trademarks in this material are property of Danfoss A/S or Danfoss group companies. Danfoss and the Danfoss logo are trademarks of Danfoss A/S. All rights reserved.
16 | Danfoss A/S © 2022.03
4
5
6
*136R0250*
*M00313*
Back vent gasket (outer)
M5x18 screw
M6x12 screw
AN371942666355en-000101 / 136R0250
Installation
