In-back/Out-top Cooling Kit for FA09-FA10
Installation Guide
8x Ø 7 (0.3)
15 (0.6)

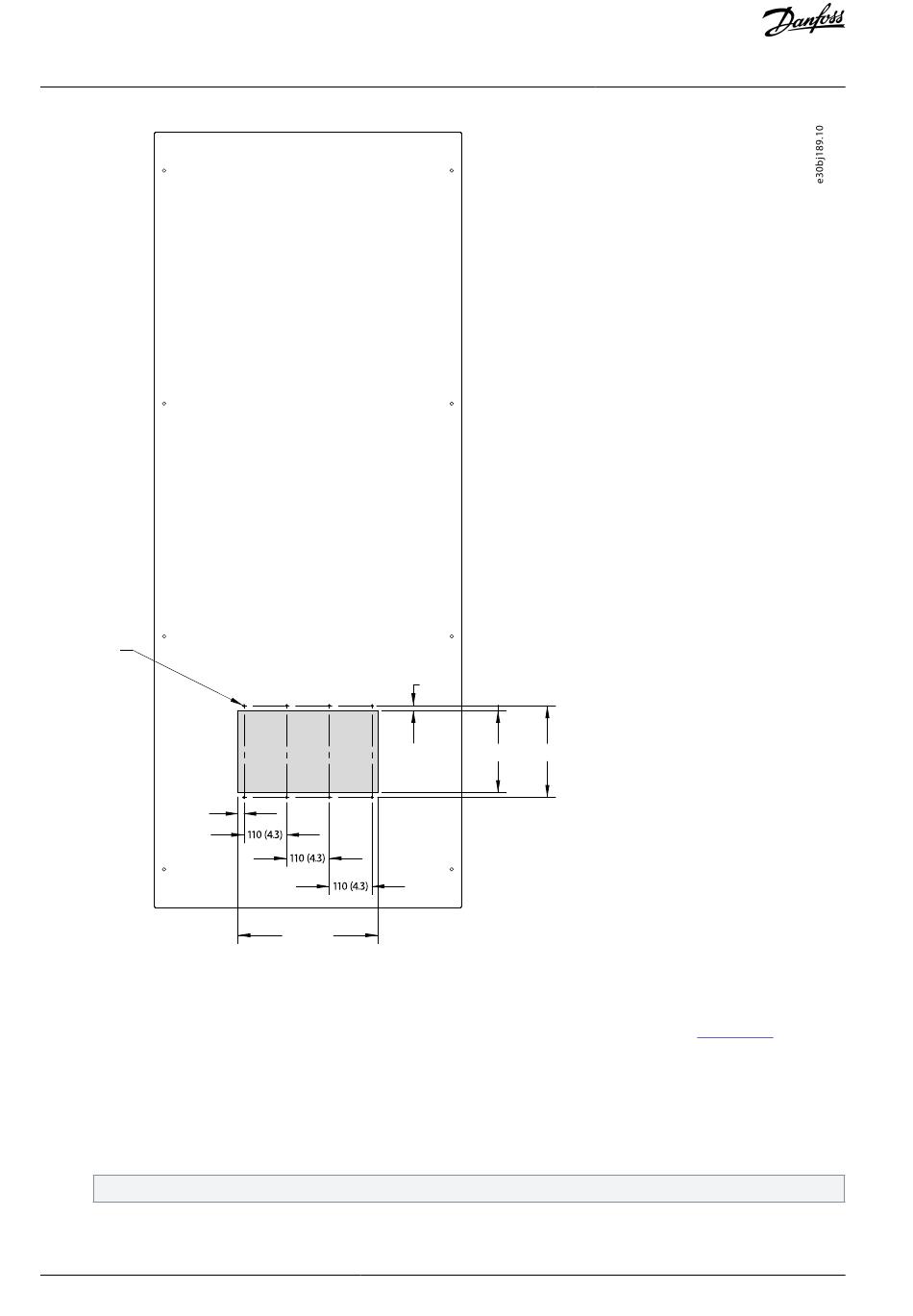

Illustration 8: FA10 Cabinet Back Plate Template for In-back/Out-top Cooling

2.6 Mounting the Frequency Converter

To install the mounting plate and frequency converter in the Rittal cabinet, use the following steps. Refer to
Procedure
1. Remove the backing paper from the 2 self-adhesive mounting plate gaskets.
2. Affix the gaskets around the lower vent opening, 1 on each side of the mounting plate.
3. Attach the mounting plate to the cabinet rails, making sure that the pem nuts face the front of the cabinet.
4. Remove the backing paper from the 2 seal plate gaskets, and affix the gaskets to the seal plates, 1 per plate.
5. Fasten 2 M10x30 screws through the seal plates, 1 per plate, and into the M10 nuts at the lower end of the mounting plate.
Make sure that the screws are secure. The base of the frequency converter rests on the screws.
6. Slightly lean the top of the frequency converter forward and set the notches in the base onto the 2 screws.
10 | Danfoss A/S © 2022.03
12 (0.5)
360 (14.2)
212 (8.3) 236 (9.3)
AN371942666355en-000101 / 136R0250
Installation
Illustration 9.
