In-back/Out-top Cooling Kit for FA09-FA10
Installation Guide
2. Remove the cover and gasket from the bottom of the frequency converter by removing 7 screws.
Retain the screws, but discard the cover and gasket.
3. Secure the top flange of the duct to the bottom of the frequency converter using the screws removed in step 2.
Refer to Illustration
4. Attach the front duct cover.
1
2
3

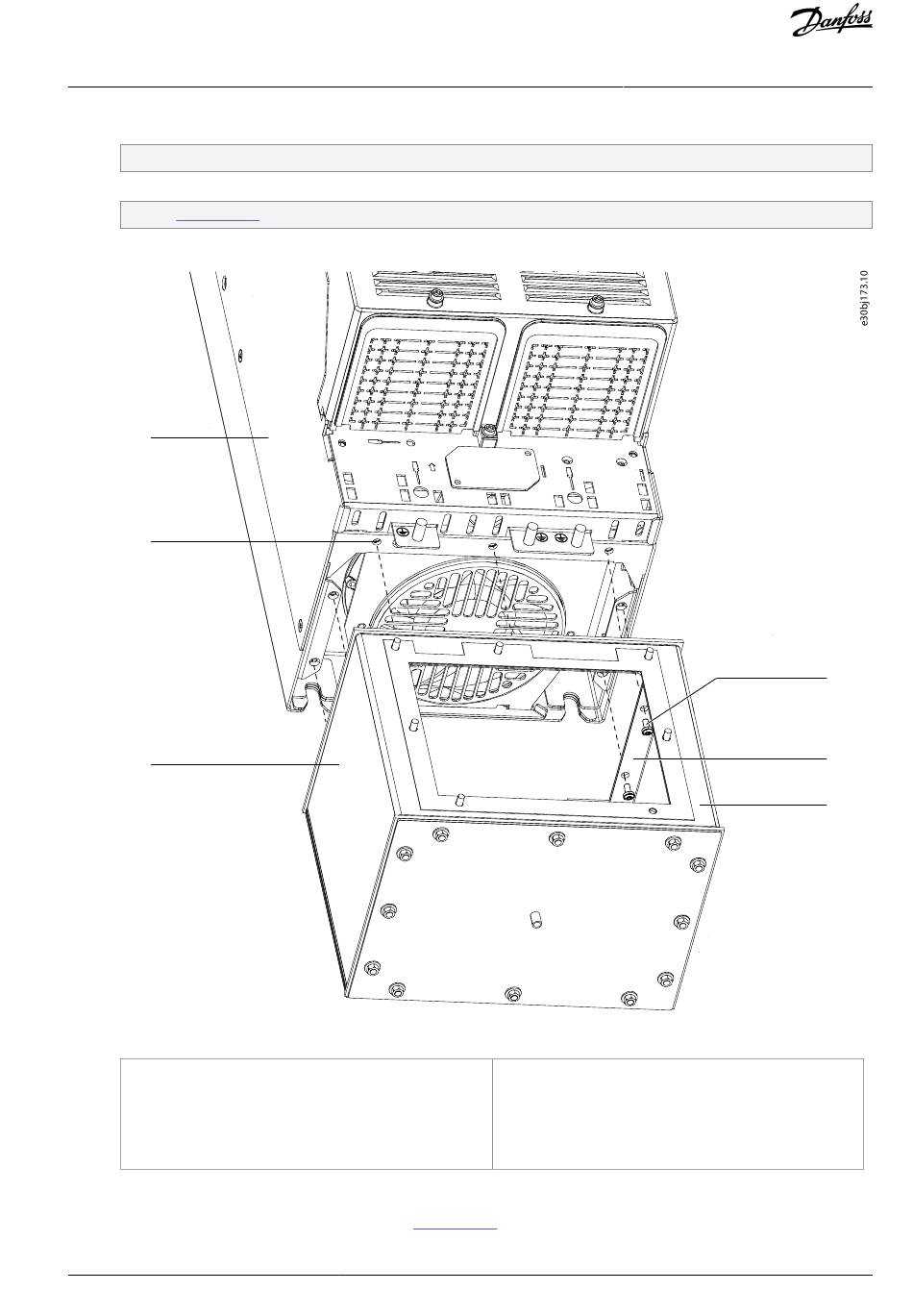

Illustration 13: Installation of Lower Duct
1 Frequency converter
2 Holes for attaching duct
3 Lower duct
2.11 Installing the Back Vent
To install the back vent, use the following steps. Refer to
Procedure
Danfoss A/S © 2022.03
13. Torque screws to 2.3 Nm (20 in-lb).
Illustration
4 Screw
5 Top flange of duct
6 Front of duct
14.
AN371942666355en-000101 / 136R0250 | 15
Installation
4
5
6
