Evaluation Board User Guide

EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

The EVAL-AD5110SDZ evaluation kit includes evaluation
board software provided on a CD. The software is compatible
with Windows® XP, Windows Vista, and Windows 7 (both 32
and 64 bits).
Install the software before connecting the
port of the PC to ensure that the
it is connected to the PC.
1. Start the Windows operating system and insert the CD.
2. The installation software opens automatically. If it does
not, run the setup.exe file from the CD.
3. After the installation is completed, power up the evaluation
board as described in the Power Supplies section.
4. Plug the EVAL-AD511xSDZ into the
board into the PC using the USB cable included in the box.
5. When the software detects the evaluation board, follow the
instructions that appear to finalize the installation.
To uninstall the program, click Start > Control Panel > Add or
Remove Programs > AD5110 Eval Board.
SDP board to the USB
SDP board is recognized when
SDP board and the SDP

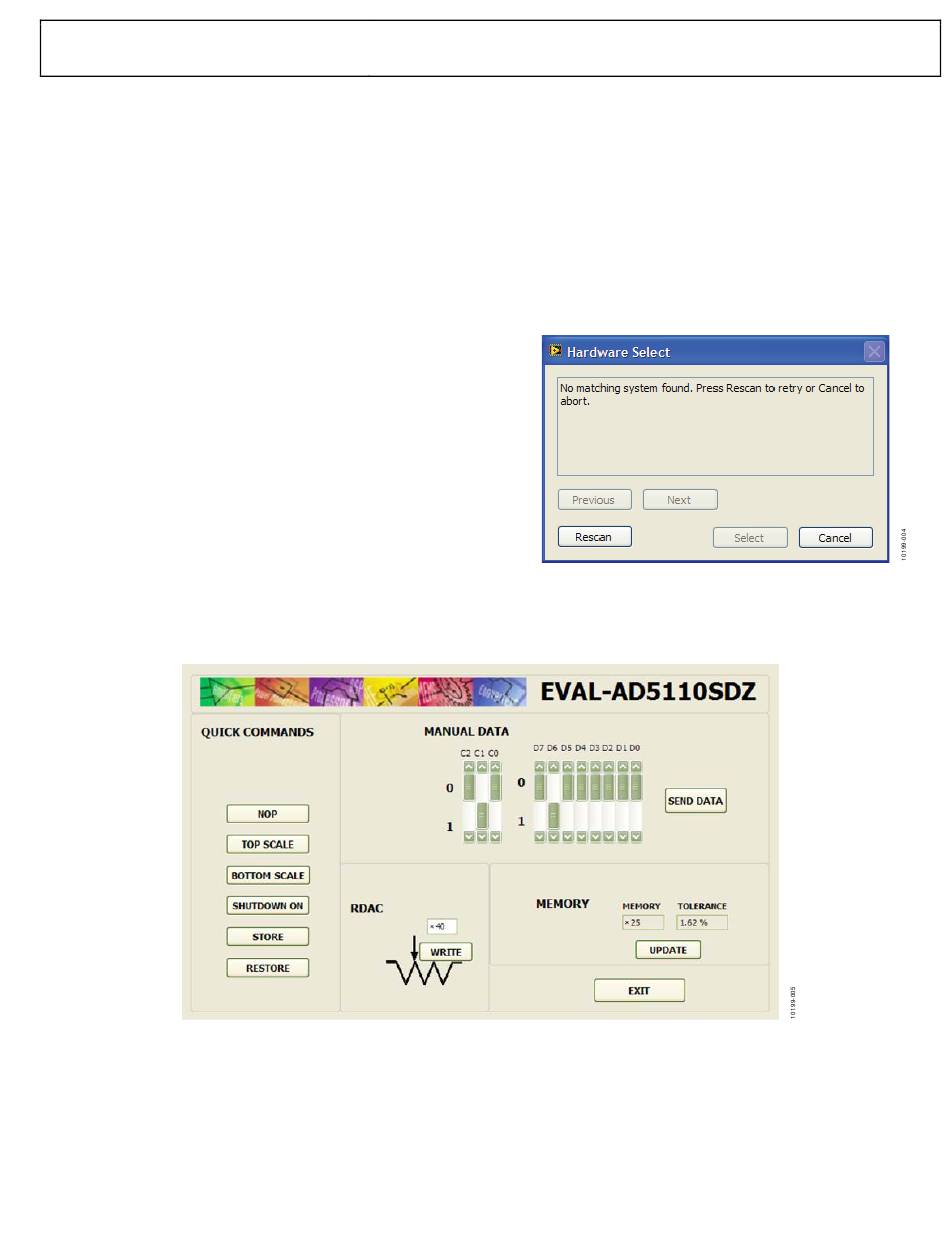

Figure 5. EVAL-AD5110SDZ
Rev. 0 | Page 5 of 12

RUNNING THE SOFTWARE

To run the evaluation board software, use the following steps:
1. Click Start > All Programs > Analog Devices > AD5110
> AD5110 Eval Board.
2. If the SDP board is not connected to the USB port when
the software is launched, a connectivity error is displayed
(see Figure 4). Connect the evaluation board to the USB
port of the PC, wait a few seconds, click Rescan, and follow
the instructions.
The main window of the
software then opens, as shown in Figure 5.
Evaluation Board Software Main Window
Figure 4. Pop-Up Window Error
EVAL-AD5110SDZ evaluation
UG-322
