NOTES:
The copper pipe used in the refrigeration lines are very soft, high pressure copper and
prone to get damaged if not handled correctly. Try to avoid bending or stretching the
pipework. Always ensure the pipes are protected when running through the wall to help
prevent damage to the pipes.

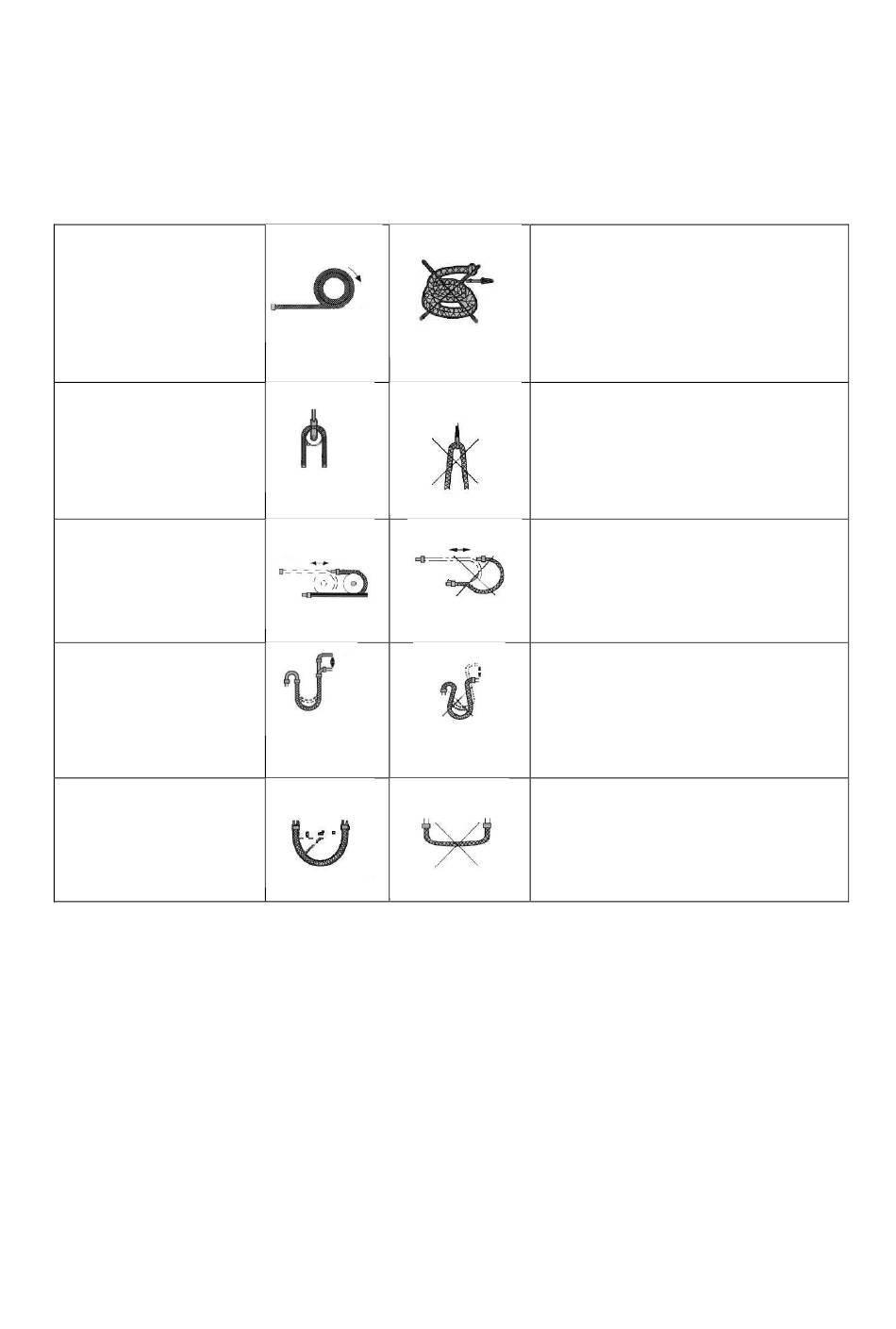

To keep the allowed
bending radius please
make the packed soft
pipes vertical
before extending
Please make use of
semicircle pulley to
keep the allowed
bending angle
Please use a twisting
wheel to avoid
improper bending.
Please use rigid
elbow to keep the
bending angle while
soft pipes operating.
Please keep the
minimum bending
angle while installing
INSTALLATION GUIDE
35
Please do not extend only one
side of the packed soft pipes.
Extreme bending could damage
the pipes
Over bent soft pipes will lead to
irregular bending
Undersize bending will damage
the soft pipe.
Do not use short sharp angle
bends.
