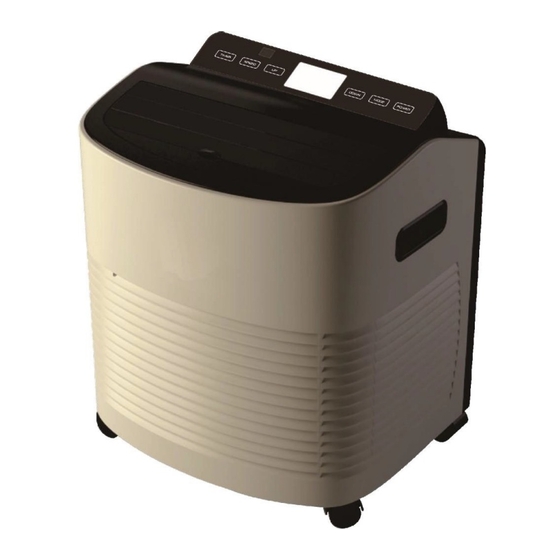

- Page 1 Compact-V2 9,000 BTU PORTABLE AIR CONDITIONER Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS FEATURES PARTS LIST INSTALLATION OPERATION AND SETTINGS REMOTE CONTROL WATER-DRAINAGE MAINTENANCE TROUBLESHOOTING TECHNICAL DATA ELECTRIQ UK SUPPORT Page 2 of 16... -
Page 5: Features
FEATURES ⚫ Self-evaporative system - no external water tank needed ⚫ Compact design – half the size of a normal unit ⚫ Louvres outlet closes automatically when shutting down the unit, this prevents dust and dirt entering the machine. ⚫ Bright LCD screen, indicates temperature and operation mode ⚫... -
Page 6: Parts List
PARTS LIST 1. Castors 7. Remote control 2. Handle 8. Air outlet hose connector 3. Control panel 9. Handle 4. Air outlet Louver 10. Exhaust pipe assembly 5. Air inlet grill 11. Window sealing plate assembly 6. Air inlet Page 6 of 16... -
Page 7: Installation
INSTALLATION Warning：Before using this unit, please keep it upright for at least 3-4 hours. This unit can easily be moved from one room to another. While moving the unit please note that it must always be kept upright and then placed on an even surface. - Page 8 4. Make sure the unit is upright and there are no obstructions to the air inlets and outlet grill. The unit should be positioned at least 50cm away from walls or other objects within the room. 5. Fix the other end of the hose to the air-outlet window kit Note: The window kit is only designed to be installed with sliding or sash windows or doors.
-
Page 9: Operation And Settings
OPERATION AND SETTINGS POWER BUTTON Press to turn unit “ON” or “OFF” MODE BUTTON Press this button to select between the Cooling, Fan and Dehumidify(Dry) modes COOLING MODE: Cold air will be expelled through the front of the unit and hot air will be expelled through the vent hose. - Page 10 TIMER BUTTON The in-built timer will allow you to set the unit to turn on or turn off after a set period of time, Please note only one timer can be used at any time. ON TIMER – The timer will turn on the unit automatically after the time set has elapsed. 1.
-
Page 11: Remote Control
REMOTE CONTROL The majority of functions on the remote are the same as those on the main control panel AUTO-SWING BUTTON After machine is on and mode selected, press this button and the louver will swing continuously up and down; by pressing this button again the movement will stop and the louver remain fixed in position. -
Page 12: Water-Drainage
WATER-DRAINAGE MANUAL DRAINAGE: 1. When the internal water tank is full the unit will stop working and display the message “FL” on the display. 2. Shut off the unit and unplug. Try not to move the model abruptly as this may cause water to spill out from internal water tank. -
Page 13: Maintenance
MAINTENANCE CLEANING Please shut off the unit and unplug from the mains before cleaning or performing any maintenance CLEAN THE SURFACE Clean the plastic housing with a duster or a soft wet cloth. Do not use chemical solvents (such as benzene, alcohol or gasoline) as they may cause irreversible damage. -
Page 14: Troubleshooting
TROUBLESHOOTING Do not repair or disassemble the unit by yourself, unauthorized repair attempts will invalidate the warranty and may cause bodily harm. Problem Reason Solution Power-on and turn on the unit. No power supply Water-full indicator illuminated Drain the internal water tank The unit does Timer function is active Cancel Timer function... -
Page 15: Technical Data
Cooling Power 0.96 53-57... -
Page 16: Electriq Uk Support
UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, make these simple checks before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form 1. Has the unit been standing upright for at least 2 hours? 2.
