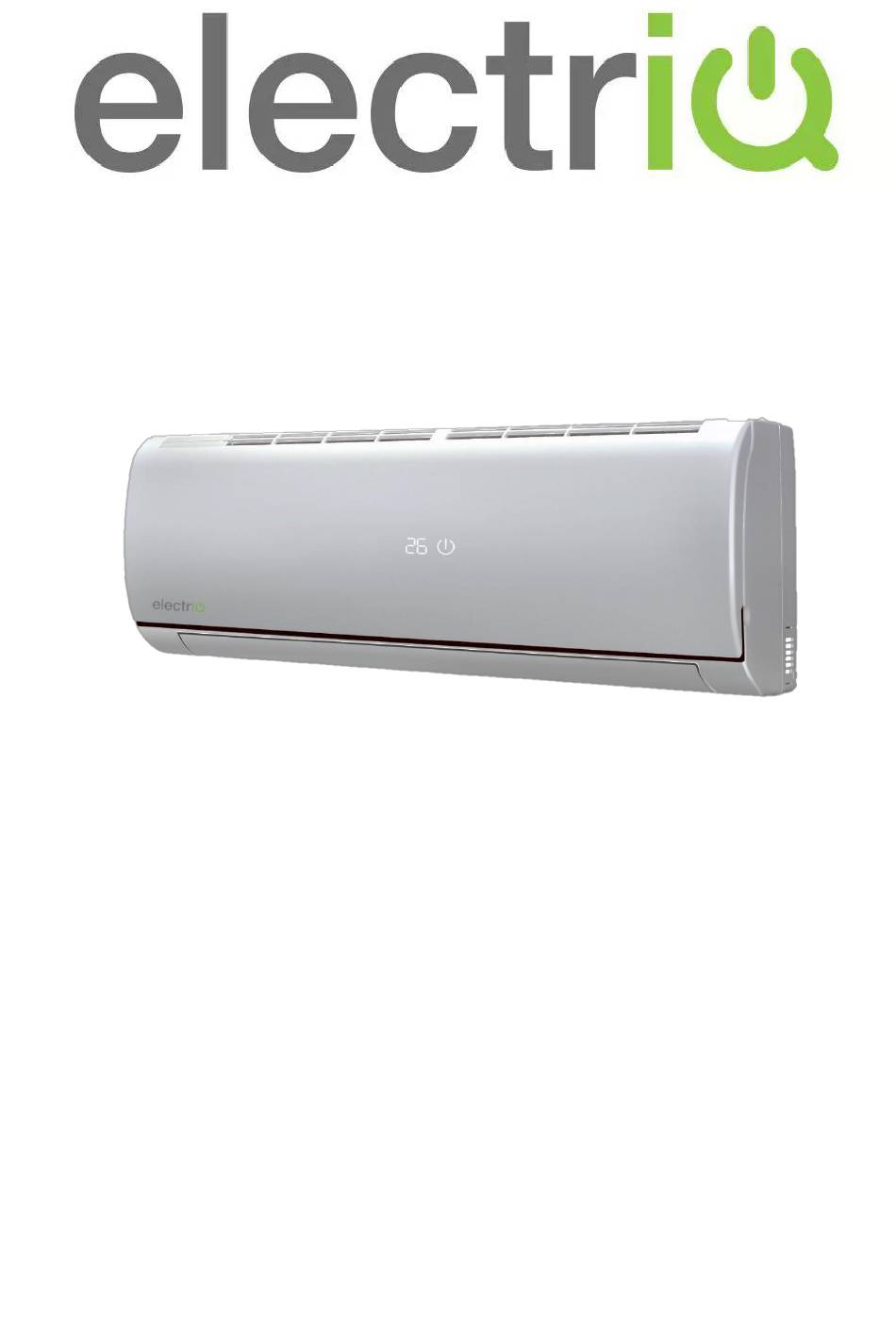

USER AND INSTALLATION MANUAL

EASY FIT WALL MOUNTED INVERTER SPLIT

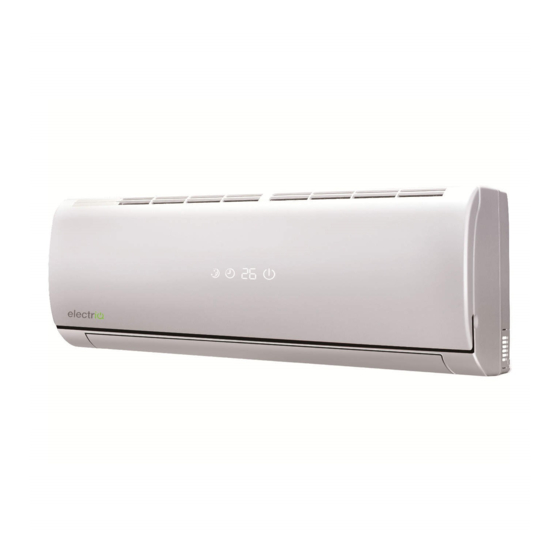

AIR CONDITIONER WITH HEAT PUMP

eiQ-9WMINV-V2

9,000 BTU

eiQ-12WMINV-V2 12,000 BTU

eiQ-18WMINV-V2 18,000 BTU

eiQ-24WMINV-V2 24,000 BTU

Thank you for choosing electriQ

Please read this user manual before using this innovative

Air Conditioner and keep it safe for future reference.

Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals

Need help?

Do you have a question about the eiQ-9WMINV-V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for ElectrIQ eiQ-9WMINV-V2

Page 1 18,000 BTU eiQ-24WMINV-V2 24,000 BTU Thank you for choosing electriQ Please read this user manual before using this innovative Air Conditioner and keep it safe for future reference. Visit our page www.electriQ.co.uk for our entire range of Intelligent Electricals...
Page 2 This air conditioner is supplied in multiple boxes. Before an engineer visit is confirmed, ensure that all the boxes required have been received in good condition and the codes on each box matches your model on the table below: Model Outdoor Indoor eiQ-9WMINV-V2 eiQ-9WMINV EX-V2 eiQ-9WMINV IN-V2 eiQ-12WMINV-V2 eiQ-12WMINV EX-V2 eiQ-12WMINV IN-V2...
Page 3 SAFETY INSTRUCTIONS Important! • Carefully read the instructions before operating the unit • This appliance comprises of an indoor unit and an outdoor unit. The slim wall mounted evaporator is designed exclusively for indoor installations while the external condenser should be installed outside, ensuring it is kept away from flood water or snow lines. •...
Page 4 Energy Saving and Unit Safety Protection Tips  Do not cover or restrict the airflow from the outlet or inlet grills.  For maximum performance the minimum distance from a wall or other objects should be 50cm.  Keep the filters clean. Under normal conditions, filters should only need cleaning once every four weeks (approximately).
Page 5 OPERATION Cooling Mode The compressor (6) in the exterior unit compresses the refrigerant into a high- temperature, high-pressure gas. When this gas flows along the cooling fins of the condenser (7), heat is exuded and the gas condenses into a liquid, which is led to the evaporator (1) within the indoor unit.
Page 6 REMOTE CONTROL Indicates the fan speed selected Press to turn On / Off the air conditioner To change between Low, Medium, high and AUTO fan speeds. This button turns on and off the vertical swing function This button turns on and off the horizontal swing function This button is used to turn on and off the timer...
Page 7 TEMPERATURE The desired temperature is set using the up and down buttons, within the range of 16°C – 32°C. FAN SPEED Use this button to set the fan speed between low, medium, high and automatic (the corresponding symbol on the display will flash). The fan speed in the automatic setting is determined by the difference between the desired temperature set and the room temperature.
Page 8 TURBO (Not available on all models) When pressed the unit will operate at maximum fan speed and maximum cooling for 15 minutes. Set the air conditioner to run with the settings required after Turbo has completed. Press the TURBO button. TIMER OFF FUNCTION (While the air conditioner is on) Ensure the air conditioner is turned on and running with your desired settings...
Page 9 FILTERS Turn off the appliance from the consumer unit before attempting to service the filters. Opening the front panel: at the A recesses, pull the front part up with both hands. The front panel will stay horizontal (at around 90°). Closing the front panel: press the front part down at the sides at B and in the middle at.
Page 10  For your convenience you can download the latest version of the user / installation manual from www.electriQ.co.uk INDOOR UNIT POSITION  The air inlet and outlet vents should be away from any obstruction, ensuring that there is a good airflow through the whole air-conditioned space.
Page 11 OUTDOOR UNIT POSITION  A convenient position, dry and well ventilated, outside of direct sunlight or strong winds, which is not on flood line and where noise and airflow does not cause interference or inconvenience.  Select a location where there should be no obstructions to the inlet and outlet vents. ...
Page 12 TOOLS RECOMMENDED FOR INSTALLATION Electric drill Hammer Screwdrivers Tape measure Spirit level Core hole cutter Number 14 (7mm) Pencil and chalk Masonry drill bit 1.5 inch number Small stepladder 10 screws (Roundhead slotted) Protective glasses and mask 7 mm Wall plugs Pipe &...
Page 13 Also the following 2 inch Pipe clips Circuit breaker when drilling inside and out Garden gloves when lifting the outdoor unit Dustsheets Foam Filler Silicone sealant and gun...
Page 15 1. Always install the rear bracket horizontally. The pipes in the unit can be installed to the left (default) or can be changed to exit on the right side. The outlet of the water tray needs adjusting so the water follows the gravity fall.
Page 16 The pipework can be fed out of either the right or the left of the indoor unit as seen in fig. 1. Please cut off the pipe hole guards if you are changing the pipe position. The unit also features alternative guards for more pipe positioning.
Page 17 Please do not extend only one To avoid damaging the pipework during side of the unrolling. Ensure the packed soft pipes pipework, as this are vertical before extending could kink or damage the pipework Ensure the bends are not too severe, as this could restrict refrigerant Please make use of a semicircle pulley...
Page 18 PIPELINES CONNECTION & AIR PURGING No dust or any other particles, air or moisture should be allowed to enter the air conditioning system. Careful attention should be paid when the pipeline connection of the units are made. Try to avoid repeated curves as much as possible;...
Page 19 ADDING REFRIGERANT ADDITIONAL REFRIGERANT AMOUNT Liquid pipe diameter Liquid pipe diameter Refrigerant must be added if the pipework 6.35 (1/4") 9.52 (3/8") measures more than 5 metres (16'5") in length. This operation can only be performed by a (pipework length - 5) m (pipework length - 5) m x 30g x 65g...
Page 20 ELECTRICAL CONNECTION OF THE AIR CONDITIONER  The electrical connections can be found under the protective plastic cover. Remove this from the side of the outdoor unit to gain access to the electrical connections.  Connect the indoor power and control wires with the matching outdoor wire as per the electrical diagram.
Page 21 CIRCUIT DIAGRAMS eiQ-9WMINV-V2 / eiQ-12WMINV-V2 INDOOR UNIT OUTDOOR UNIT...
Page 22 eiQ-18WMINV-V2 / eiQ-24WMINV-V2 INDOOR UNIT OUTDOOR UNIT...
Page 23 TROUBLESHOOTING AND SELF DIAGNOSIS electriQ air conditioners have an advanced self-diagnosis system allowing them to display the service information INDOOR UNIT ERROR CODE LIST. Check Unit Display Status Display Code Power on LED Description Display LED (light) (light flashing) The communication faults in...
Page 24 INDOOR UNIT PROTECTION CODE LIST. Display Power on Check Description Display LED Code (light flashing) (light) Indoor Evaporator temp protection parts Overheat, over current protection of inverter module Over current protection Compressor discharging temp. protection Overheat of compressor top protection Compressor suction temp.
Page 25 TECHNICAL SPECIFICATIONS Model eiQ-9WMINV-V2 eiQ-12WMINV-V2 eiQ-18WMINV-V2 eiQ-24WMINV-V2 Rated voltage and 1-220-240/50 1-220-240/50 1-220-240/50 1-220-240/50 frequency (Ph-V-Hz) Cooling Heating Mode Cooling Heating Cooling Heating Cooling Heating 2500 2500 3500 3600 5100 5200 6100 6100 Rated capacity (W) (1500~3200) (1480~3350) (1600~3950) (1550~4250)
Page 26 WARRANTY INFORMATION The electriQ guarantee provides cover against material or manufacturing faults. This means that if your air conditioner develops a fault during the guarantee period, we will arrange for it to be repaired or replaced.
Page 27 UK SUPPORT www.electriQ.co.uk/support Please, for your own convenience, check the troubleshooting guide before calling the service line. If the unit still fails to operate call: 0871 620 1057 or complete the online form Office hours: 9AM - 5PM Monday to Friday www.electriQ.co.uk...
