Rear View - GeoVision GV-Control Center System V2 User Manual

Overview
2

2.2 Rear View

3
2
1
No.
Name
1 Power Connector
2 Power Switch
3 ECO Switch
4 PS/2 keyboard / mouse port
5 USB 2.0 (Type-A) x 4
6 VGA
Note: When the ECO Switch is ON, the redundant power supply fan will be powered on
based on the temperature the system detects; when the ECO switch is OFF, the redundant
power supply fan will always be powered on no matter the circumstances.
4
12
9 5
7
6
5
8 10
11

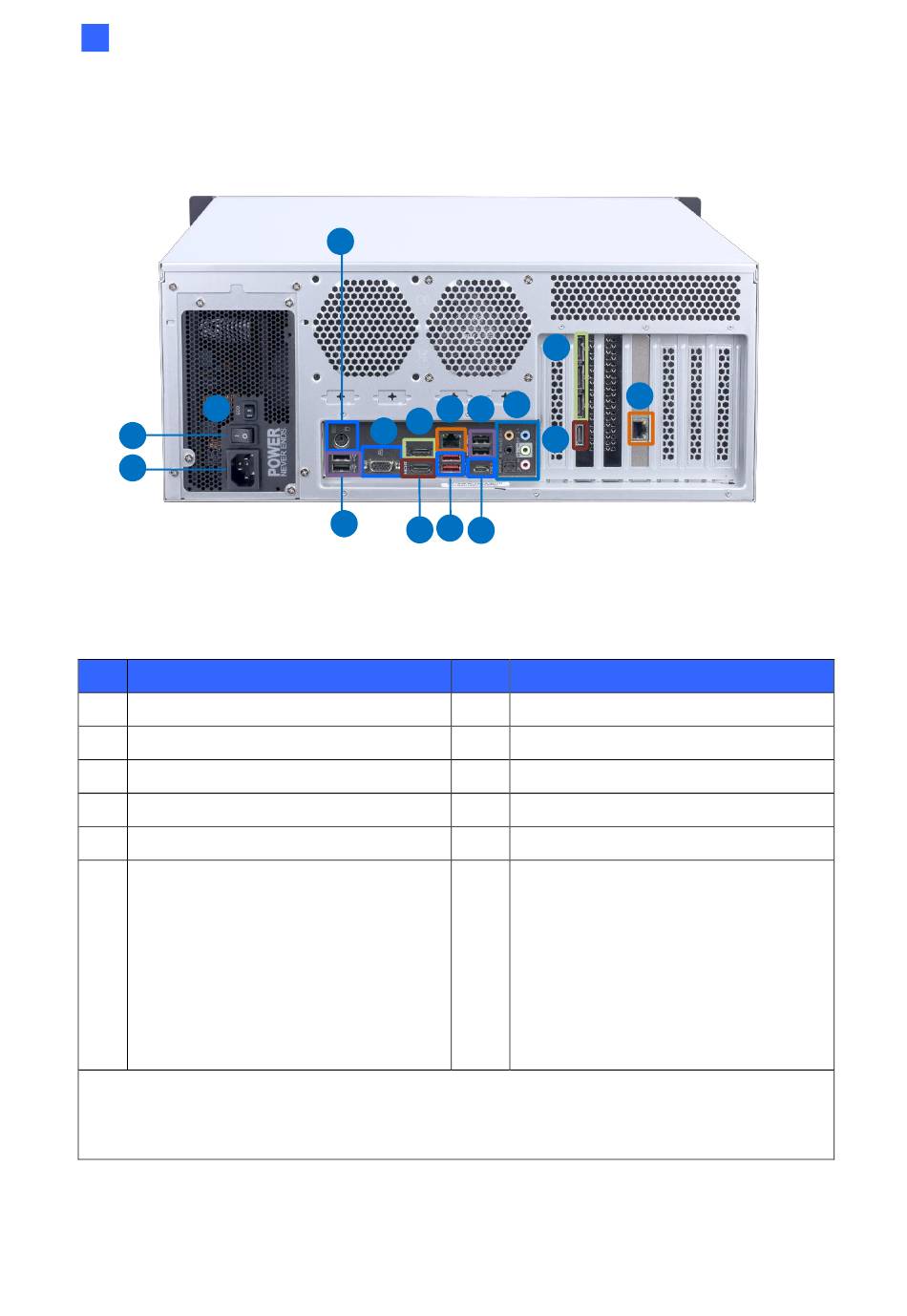

Figure 2-2
No.
7
8
9
10
11
12
3
7
9
8
Name
DisplayPort 1.4 x 4 (up to 4K / 60Hz)
HDMI 2.0 x 2 (up to 4K / 60Hz)
2.5 GbE LAN x 2
USB 3.2 (Type-A) x 2
USB 3.2 (Type-C)
➢
Audio Jack x 6
➢
Center Speaker Out (Orange)
➢
Rear Speaker Out (Black)
➢
Optical S/PDIF Out
➢
Line In (Blue)
➢
Line Out (Green)
➢
Mic In (Pink)
