Getting Started
3

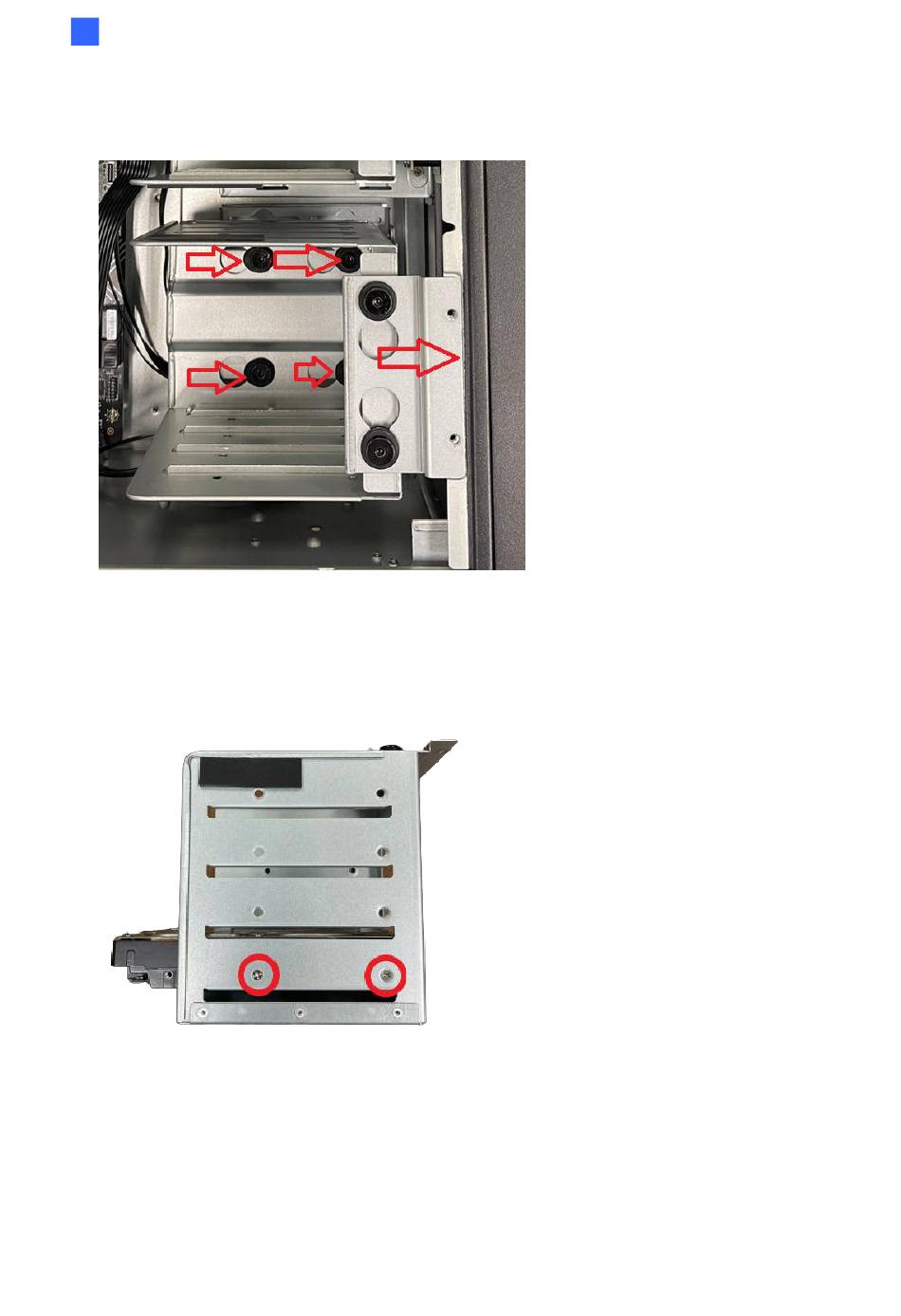

6. Push the hard drive bracket to the right to loosen the bracket from the pads, and lift up the
bracket.
Figure 3-7
7. Place the hard drive onto the hard drive bracket. Align and tighten the two screws on each
side to secure the hard drive (a total of four screws).
Figure 3-8
8. Repeat step 7 to install another hard drive onto the hard drive bracket.
9. Connect the hard drives to the motherboard using the SATA and power cables.
7
