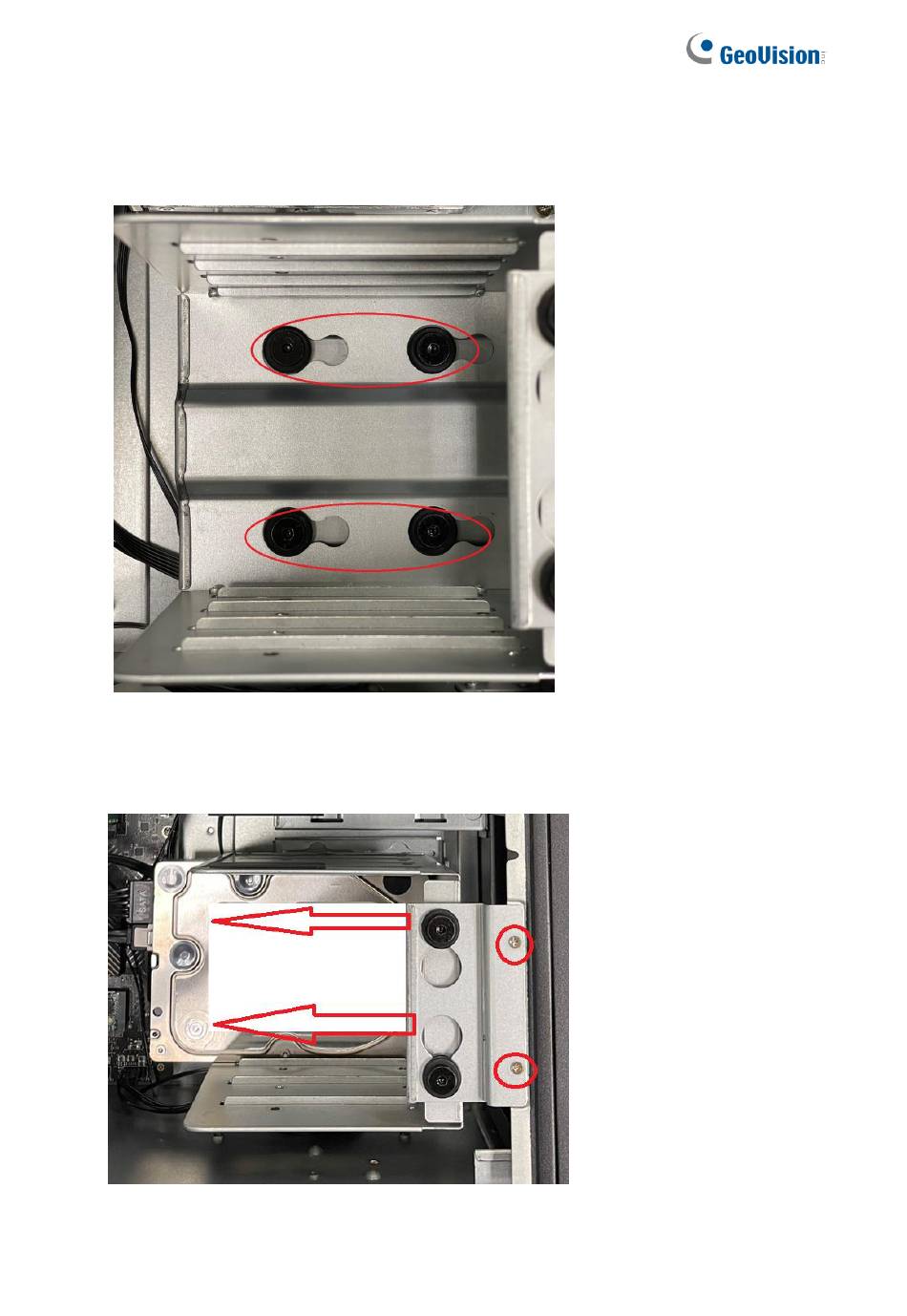

10. Align the hard drive bracket with the pads at the bottom of the system case. Carefully
check if the pads all fit in the holes at the bottom of the bracket since the hard drives
installed on the bracket may block the views.
Figure 3-9
11. Push the bracket to the left to snap it back to its original position with the pads underneath,
and tighten the set screws to secure the hard drive bracket.
Figure 3-10
8
