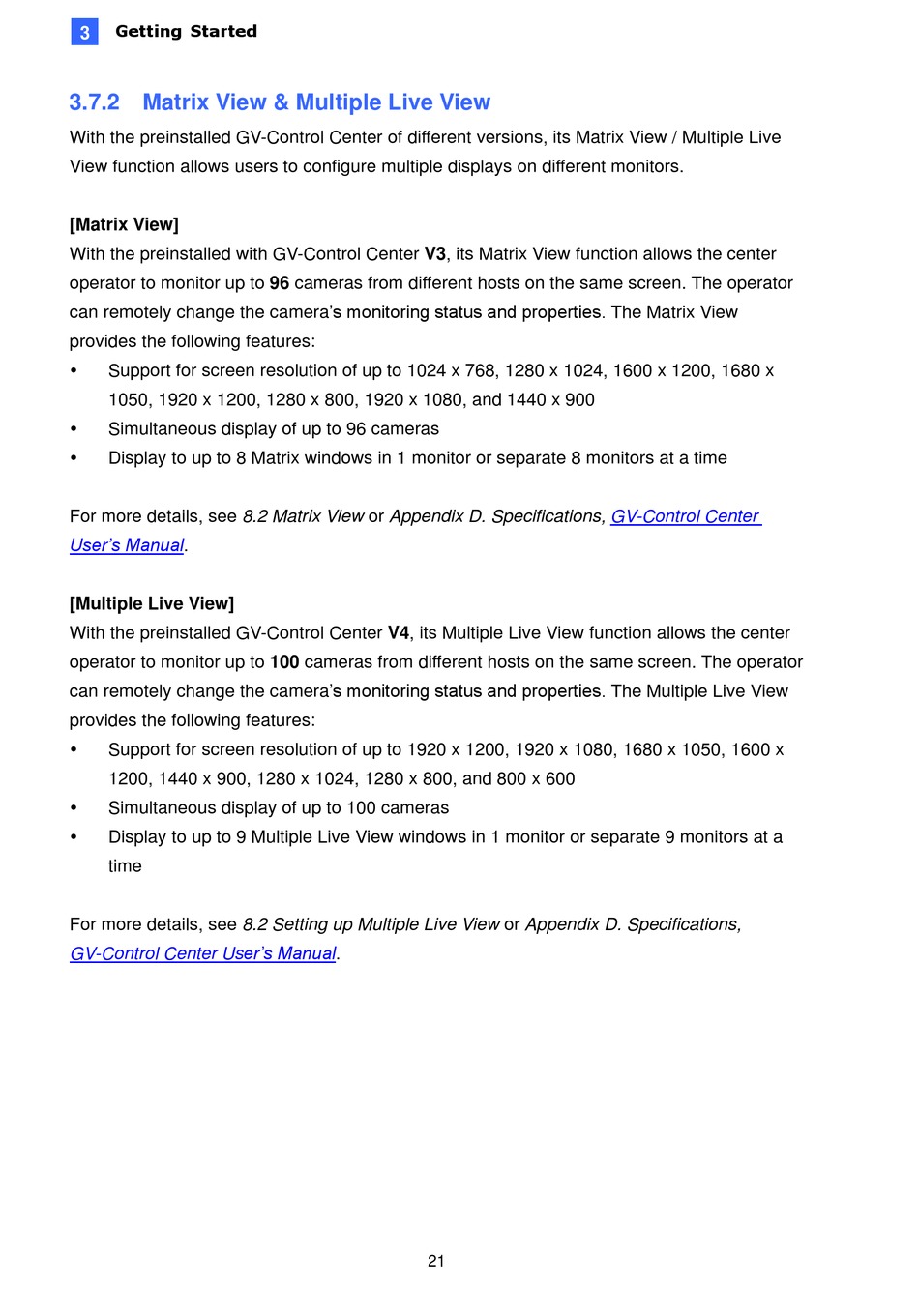

3.7.2 Matrix View & Multiple Live View
With the preinstalled GV-Control Center of different versions, its Matrix View / Multiple Live
View function allows users to configure multiple displays on different monitors.

[Matrix View]

With the preinstalled with GV-Control Center V3, its Matrix View function allows the center
operator to monitor up to 96 cameras from different hosts on the same screen. The operator
can remotely change the camera's monitoring status and properties. The Matrix View
provides the following features:

Support for screen resolution of up to 1024 x 768, 1280 x 1024, 1600 x 1200, 1680 x
1050, 1920 x 1200, 1280 x 800, 1920 x 1080, and 1440 x 900

Simultaneous display of up to 96 cameras

Display to up to 8 Matrix windows in 1 monitor or separate 8 monitors at a time
For more details, see 8.2 Matrix View or Appendix D. Specifications,
User's Manual.
[Multiple Live View]
With the preinstalled GV-Control Center V4, its Multiple Live View function allows the center
operator to monitor up to 100 cameras from different hosts on the same screen. The operator
can remotely change the camera's monitoring status and properties. The Multiple Live View
provides the following features:

Support for screen resolution of up to 1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x
1200, 1440 x 900, 1280 x 1024, 1280 x 800, and 800 x 600

Simultaneous display of up to 100 cameras

Display to up to 9 Multiple Live View windows in 1 monitor or separate 9 monitors at a
time
For more details, see 8.2 Setting up Multiple Live View or Appendix D. Specifications,
GV-Control Center User's
Manual.
