- Page 1 USER EN ENGLISH MANUAL 400.46 MULTIPOWER 4.6 Manual in your language? Check the back cover...

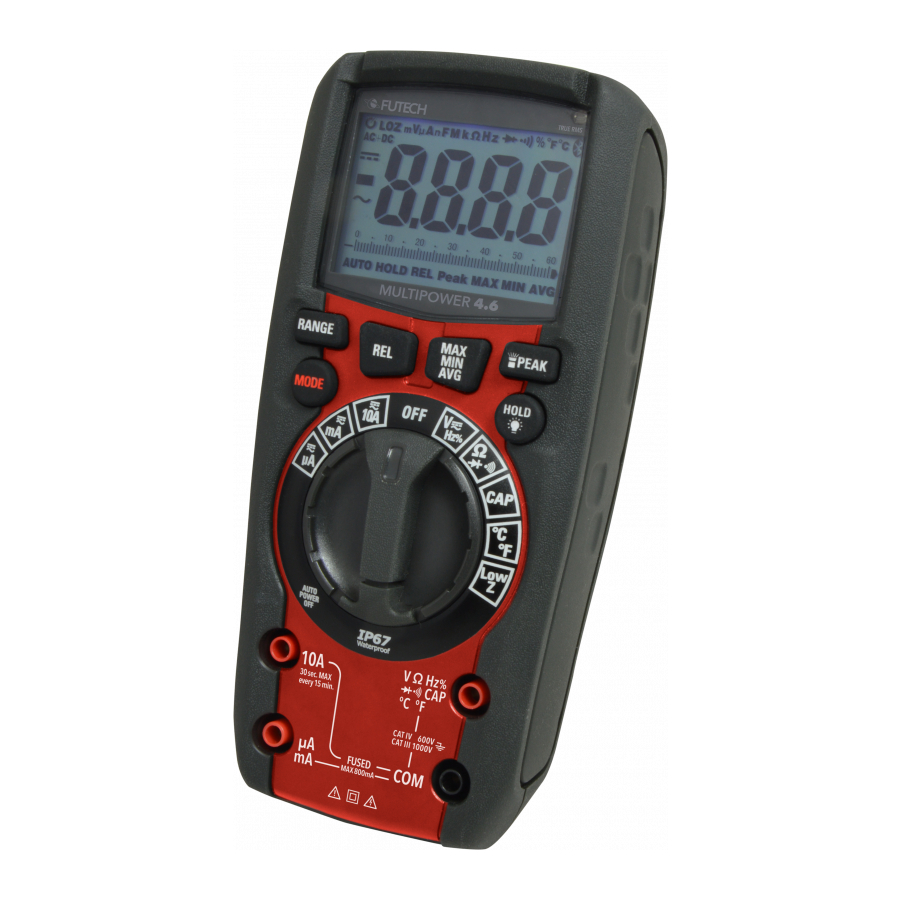

- Page 2 OVERVIEW FRONT 01 Display 02 Relative button 03 RANGE button 04 MODE button 05 Rotary function switch 06 10A input jack 07 µA, mA input jack 08 COM input jack 09 V/Ω/ / /CAP/Hz%/°C/°F input jack 10 Backlight/HOLD button 11 PEAK/Flashlight button 12 MAX/MIN/AVG button 13 Auto backlight sensor 14 Flashlight...
- Page 3 Ampere (current) nano (10-9) G Farad (capacitance) mega (106) kilo (103) Ohm (resistance) Hertz (frequency) Diode test M Continuity N Percent (duty ratio) O Degrees Fahrenheit Degrees Celcius Q Direct current Minus sign Alternating current Low battery Autoranging Display hold DISPLAY W Relative Auto power off...
-
Page 4: First Time Usage
SAFETY Please read the safety instructions provided in RANGE-BUTTON the separate booklet provided with the device. Risk of electrocution. High voltage circuits, both AC and DC, are very dangerous and should be measured with great care. Turn function switch OFF when meter is not in The autorange mode automatically selects the use. -
Page 5: Mode Button
MODE-BUTTON NOTE The meter does not AUTO-range when the relative mode is active. The display will show “OL”(Overload) [Z] if the diffirence exceeds the range. REL does not work on frequency, Duty Cycle, Temperature or Low Z. Press the MODE-Button [04] to select AC or DC, Frequency or Duty Cycle, Resistance, Continuity or Diode test and °C or °F. - Page 6 when the average value changes. When the meter is in the darkness, the backlight can be automatically opened, not controlled by · Press and hold the MAX/MIN/AVG-button [12] the button. to end MAX/MIN/AVG and return to normal operations. FLASHLIGHT/PEAK-BUTTON NOTE MAX/MIN does not work on Frequency, Duty Cycle, Capacitance or Temperature.
- Page 7 · Press and hold the PEAK-button [11] to exit NOTE PEAK and return to normal operation. Observe all safety precautions when working on live voltages! NOTE The meter does not Autorange when the Peak mode is active. The display will read “OL” (over- ·...
-
Page 8: Frequency And % Duty Cycle Measurements
FREQUENCY AND % DUTY CYCLE jack [09]. MEASUREMENTS · Touch the test lead probes to the circuit under test. · Read the frequency or % duty cycle on the display. · To return to AC voltage, press and hold the MODE-button [04] again until the “~”... -
Page 9: Ac/Dc Current Measurements
AC/DC CURRENT MEASUREMENTS NOTE Observe all safety precautions when working on live voltages! Do not connect to circuits that exceed 600V AC/DC when the meter is set to Low Z! — Low Z is used when there is a suspicion of a “ghost”... -
Page 10: Resistance Measurement
· Remove power from the circuit under test, then NOTE open up the circuit at the point where you wish Observe all safety precautions when working to measure current. on live circuits. Do not measure current on circuits that exceed ·... -
Page 11: Continuity Test
NOTE · Set the rotary function switch [05] to the Ω/ Never test continuity on a live circuit. position. · Press the MODE-button [04] until the “Ω” sym- · Set the rotary function switch [05] to the Ω/ bol [J] appears on the display. position. · Insert the black test lead into the COM input ·... -
Page 12: Diode Test
DIODE TEST · Forward voltage will indicate 0.4 to 0.7 on the display. Reverse voltage will indicate “OL” (overload) [Z]. Shorted devices will indicate near 0 and an open device will indicate “OL” in both polarities. CAPACITANCE MEASUREMENTS — — —... -
Page 13: Temperature Measurements
the CAP input jack [09]. · Press the MODE-button [04] to select readings in °C or °F · Touch the test lead probes to the capacitor under test · Connect the Temperature Probe to the banana Plug adapter. Note the - and + markings on ·... -
Page 14: Fuse Replacement
· Loosen the screws on the batter/fuse cover. NOTE To avoid electric shock, remove the test leads · Remove the battery/fuse cover from the meter before removing the battery/ · Gently remove fuse and install new fuse into the fuse cover. holder. - Page 15 DECLARATION OF CONFORMITY the fi xed installation. Overvoltage category IV Futech (Belgium) declares under its own responsibility that Equipment of overvoltage category IV is for use at the origin of this device: the installation.
