INSTRUCTION MANUAL [EN]
202.40R – DISTY 40R
202.60G – DISTY 60G
202.80R – DISTY 80R

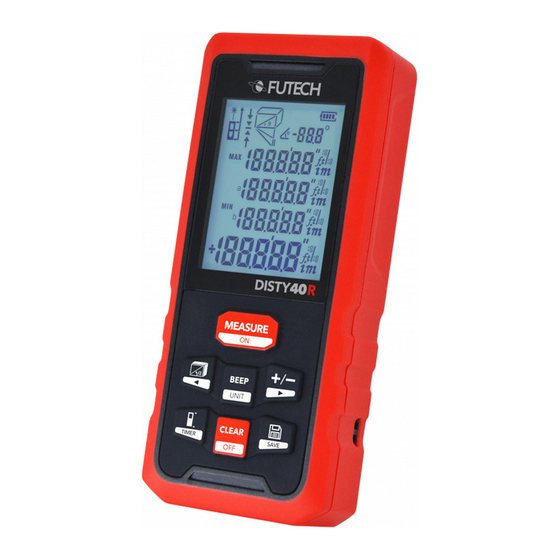

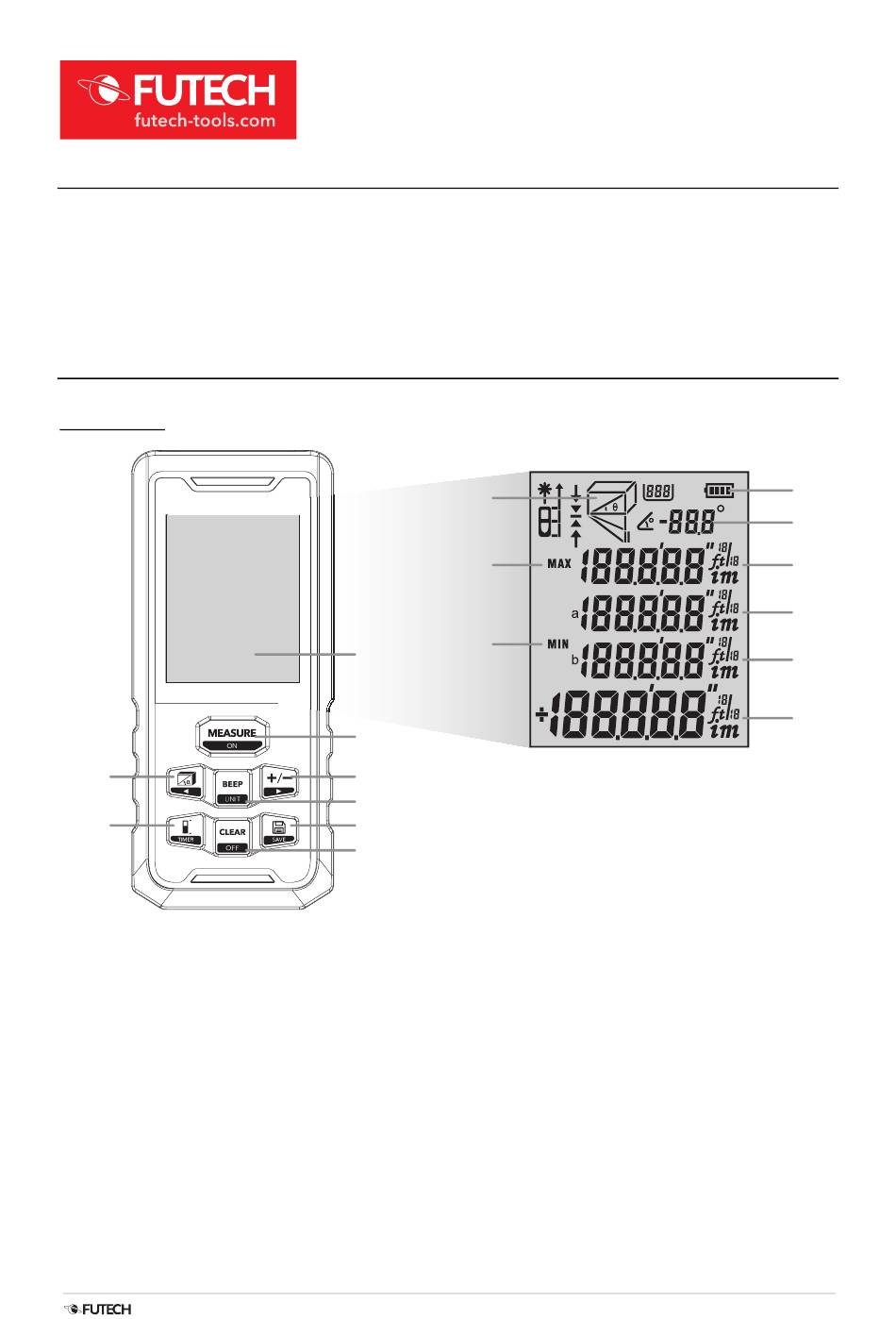

OVERVIEW
3
6
1.
Screen
2.
Measure - ON button
3.
Function - Back button
4.
Beep - Unit button
5.
Addition/Subtraction – Next button
6.
Reference point – Timer button
7.
Clear – OFF button
8.
Memory – Save button
MANUAL 202.40R – 202.60G – 202.80R [EN]
b
d
e
1
2
5
4
8
7
a.
Battery indicator
b.
Function indicator
c.
Angle
d.
Maximum
e.
Minimum
f.
Major display
g.
Auxiliary display, line 1
h.
Auxiliary display, line 2
i.
Auxiliary display, line 3
a
c
i
h
g
f
V1.0 – 06.2022
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Futech DISTY 40R
Summary of Contents for Futech DISTY 40R
- Page 1 INSTRUCTION MANUAL [EN] 202.40R – DISTY 40R 202.60G – DISTY 60G 202.80R – DISTY 80R OVERVIEW Screen Battery indicator Measure - ON button Function indicator Function - Back button Angle Beep - Unit button Maximum Addition/Subtraction – Next button Minimum Reference point –...
- Page 2 SAFETY & WARRANTY Read the complete safety and warranty instructions provided together with the device before using. While the product is in operation, be careful not to expose your eyes to the emitting laser beam. Do not disassemble the tool. There are no user serviceable parts inside. Do not modify the tool in any way.
- Page 3 Delay measurements § You can easily delay your measurement with 3 to 60 seconds. Hold the Reference point – Timer button [6] for approx. 3 seconds. SEC will be shown on the display with the number of seconds of the delay. To adjust the delay, press the Function –...
- Page 4 Press the Measure – ON button [2] once for the length. Press the Measure – ON button [2] again for the width. Press the Measure – ON button [2] a third time for the height. The device will show the result on the major display [f]. The current measuring result will appear in the auxiliary display [g, h, i].
- Page 5 Calculate the hypotenuse by measuring the length of two legs. Calculate the hypothenuse by measuring the length of two legs. Press the Function – Back button [3] 5x till one leg of the triangle is blinking on the screen. Press the Measure – ON button [2] to measure the length of one leg (a). Press the Measure –...
- Page 6 Press the Addition/ Subtraction – Next button [5] to select the function once you have the length measuring result. Press the Addition/ Subtraction – Next button [5] and a “+” will be shown in the major display. The + shows that the addition mode is activated. The value of the last measurement and the result of the cumulation will be showed on the screen.
- Page 7 Pythagoras measuring error Re-measure and ensure that Hypotenuse is bigger than Cathetus. Err6 Angle sensor error Depot repair Technology specifications § ITEM SPECIFICATIONS DISTY 40R DISTY 60G DISTY 80R Working range Distance measurement ±2mm (*) precision Continuous measurement function Area measurement...
- Page 8 Buttons/keys sound Storage temperature -20°C~60°C Working temperature 0°C~40°C Storage humidity 20%~80% RH Battery 3x1.5V AAA 1x 3,7V LI-ION battery (or optional 1x 3,7V LI–ion (or 3x1.5V AAA) battery) Angle Range ±90° Dimension 118 x 52 x 27 mm Note: Use a target plate to increase the measurement range during daylight or if the target has poor reflection properties.
