Futech LL6305 Instruction Manual

INSTRUCTION MANUAL [EN]
LL6305 – 3D CROSS LINE LASER GREEN

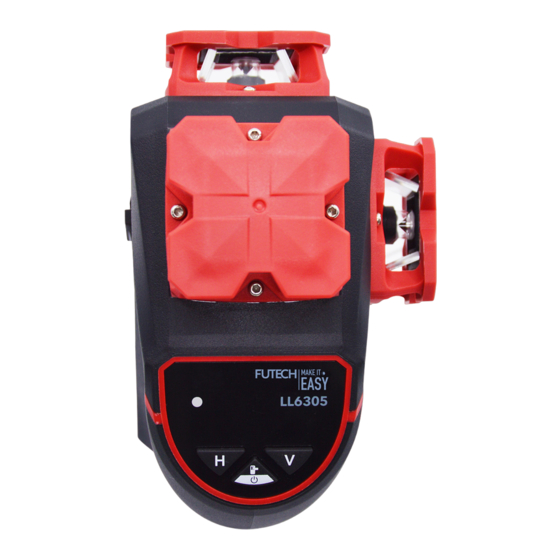

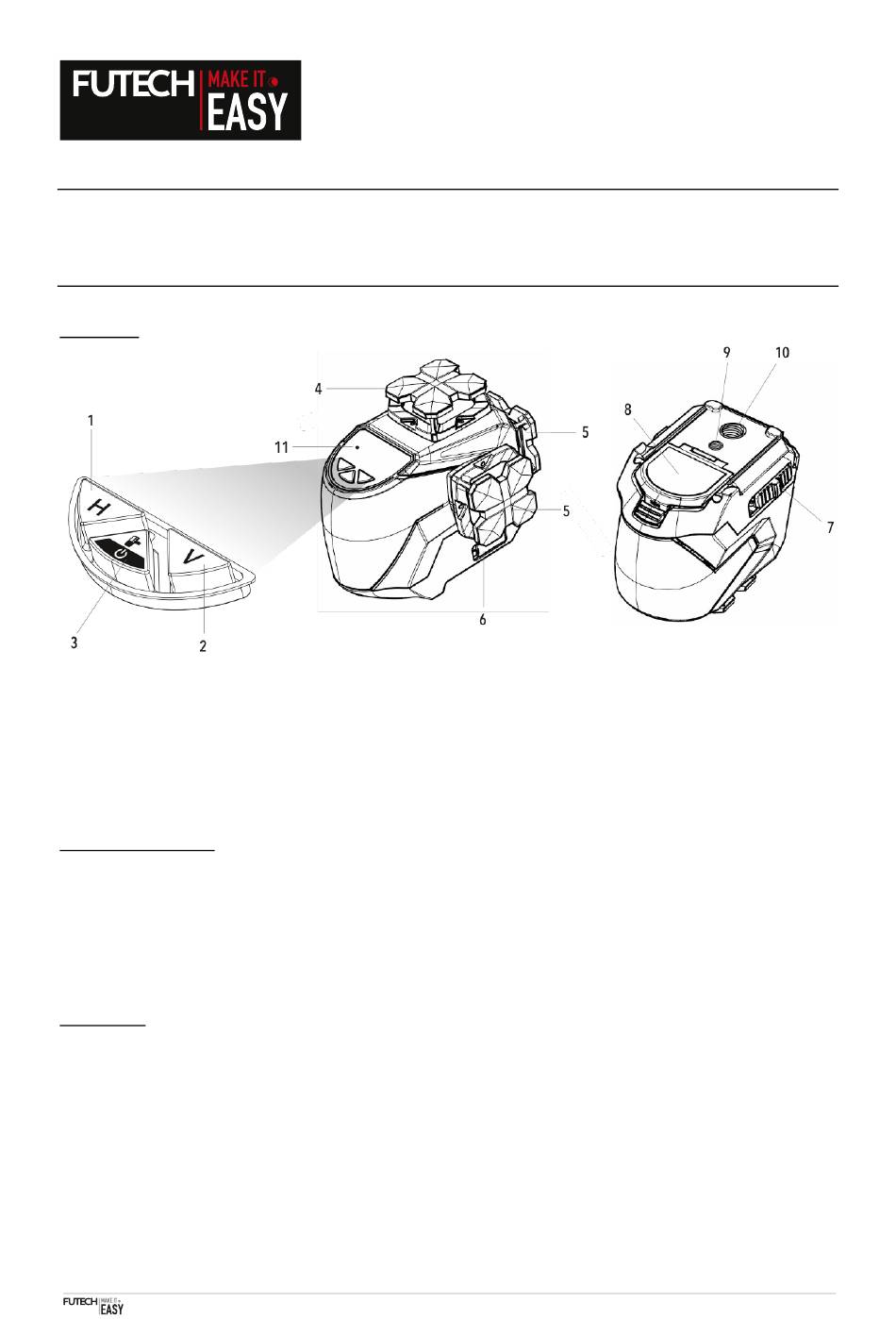

OVERVIEW

1. Button horizontal line
2. Button vertical lines
3. On/off – Receiver mode button
4. Horizontal laser window
5. Vertical laser window
6. USB-C connector
SAFETY & WARRANTY
Read the complete safety and warranty instructions provided together with the device before using.
While the product is in operation, be careful not to expose your eyes to the emitting laser beam.
Do not disassemble the laser tool. There are no user serviceable parts inside.
Do not modify the laser in any way. Modifying the tool may result in hazardous Laser Radiation Exposure.

OPERATING

Keep the Transport security – On/off switch [7] always in lock/Off position (left) during transport or storage.
1.

WORK IN SELF-LEVELLING MODE

Slide the transport security – On/off switch [7] to the unlock/On position (right). All laser lines, horizontal and vertical, will light up. The
pendulum will be released and the laser will self-level. The LED indicator [11] is green.
If the laser lines flashes continuously and a beeping sound is heard, this means the laser line is not levelled because the position of the
laser is out of the levelling range, which is about 3.5°. Put the laser on a much flatter place within the 3.5° levelling range to have a
levelled laser line. The laser lines will stop flashing and the beeping sound will stop.
MANUAL LL6305 [EN]
7. Transport security - On/off switch
8. Battery department
9. 1/4" Threaded mount (for usage with a tripod)
10. 5/8" Threaded mount (for usage with a tripod)
11. LED indicator
V1.0 – 05.2022 1
