USER MANUAL [EN]

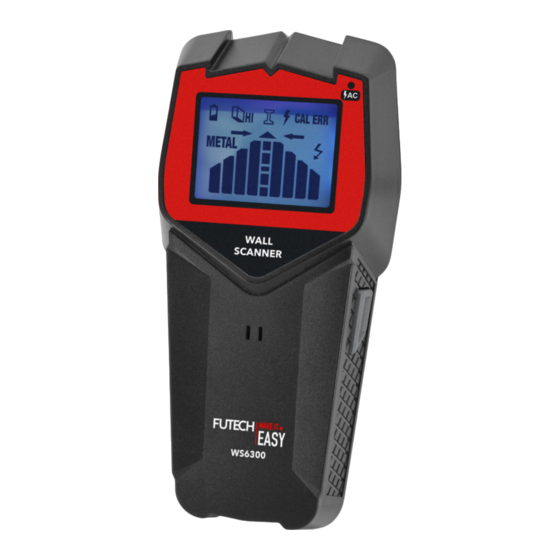

WS6300 – STUD FINDER

OVERVIEW

SAFETY & WARRANTY
Read the complete safety and warranty instructions provided together with the device before using.
Turn the wires' power off when working near electrical wires.
Depending on the proximity of electrical wiring or pipes to the wall surface, the unit may detect them in the same manner as studs.
Caution should be used when nailing, sawing or drilling into walls, floors and ceilings that may contain these items.
For safety, in any detection mode the AC voltage detection is enabled during detection. When the unit detects a live AC wire or AC
voltage, the AC indicator LED [B] will light or flash red and the AC signal indicator
will beep.
MANUAL WS6300 [EN]
A
B
b
C
D
E
will appear on the display. The built-in buzzer
