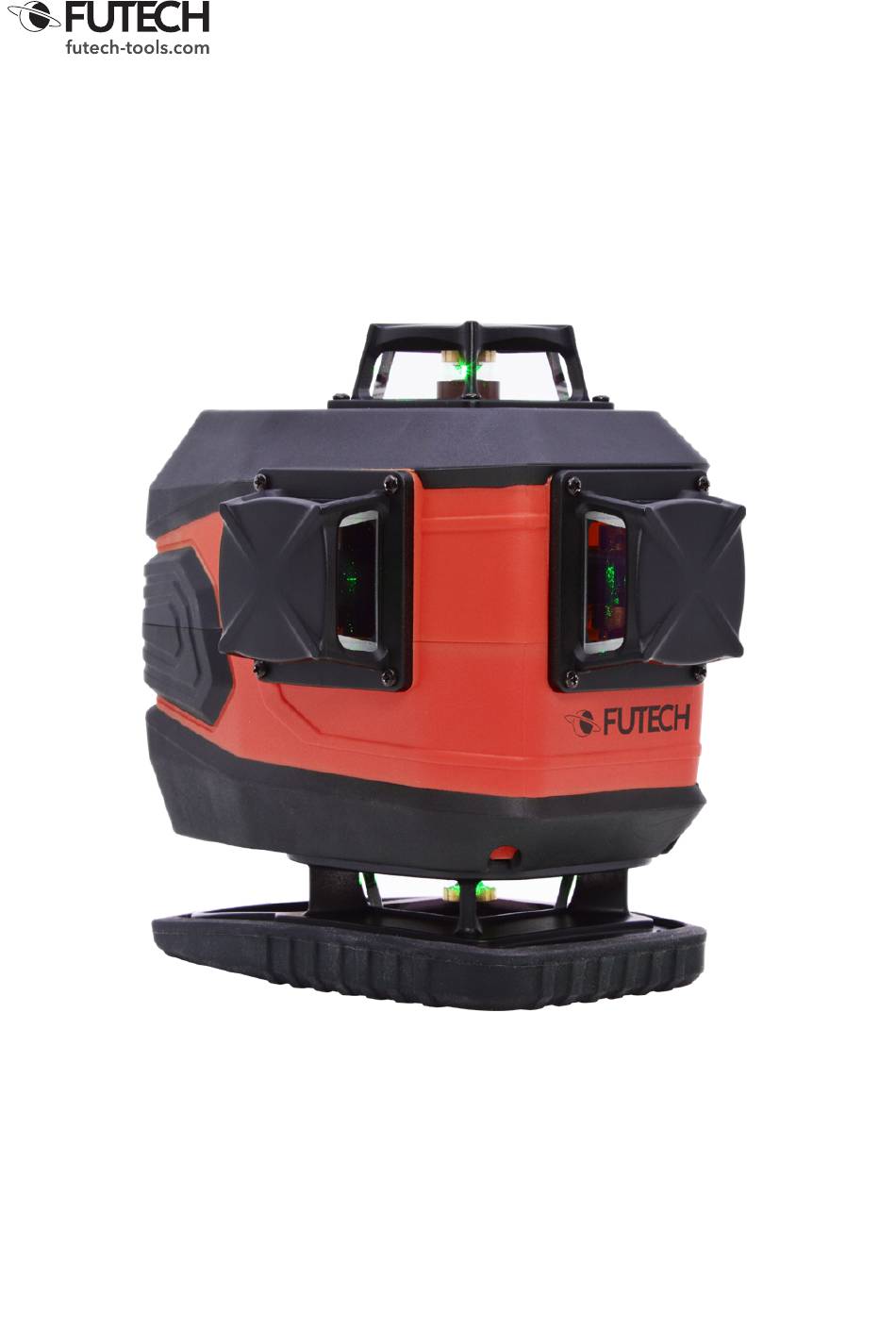

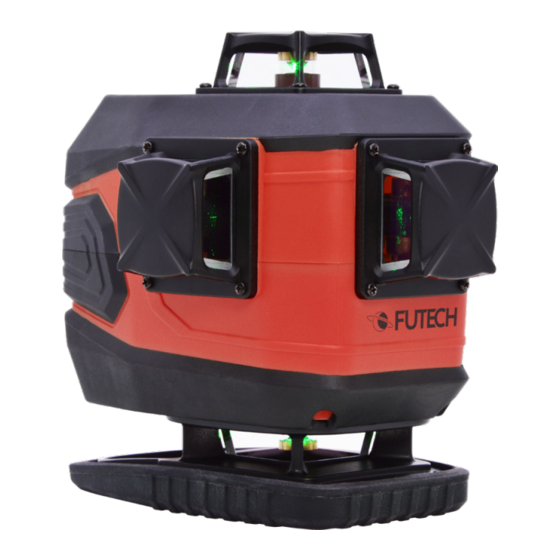

- Page 1 MULTICROSS 4D ELECTRONIC CROSS LINE LASER 034.4de...
-
Page 2: Switching On/Off
DESCRIPTION Window of upper horizontal laser line (H1) Window of bottom horizontal laser line (H2) Window of vertical laser line Front (V2) Window of vertical laser line Side(V1) Keypad Battery cover Tripod Thread ¼” USB-C power connector ON / OFF Keypad Power Button ON/OFF Receiver Button... - Page 3 (also called “pulse”). please check the technical data of your laser device and receiver or consult your futech dealer to verify compatibility. MANUAL LEVELLING When switching on the instrument, the automatic levelling starts.
- Page 4 BATTERY Use only the battery (7.4V, 2600mAh - Art.nr.: H60028) and the charger (16.8V, 2.6A - Art.nr.: H60032) supplied with the Multicross 4D Electronic. The remote control needs 4x AAA Alkaline batteries (LR03). · Place or remove the battery ·...
- Page 5 · If the LED indicator on the battery lights red, it shows the battery is being charged. · If the LED indicator on the battery lights blue, it shows the battery is fully charged. · If the LED indicator on the battery is flashing, it shows the connection is not good.
-
Page 6: Specifications
Weight (only laser device) 0,83 kg * Remote control not included and compatible with the very first devices. Futech is a registered brand of Laseto NV, Belgium. Futech declares that the Multicross 4D Electronic is in conformity with the following standards: ·...
