Diagnostics - Casa Systems NetComm CF40MESH User Manual

To allow the LEDs to display select the
To turn off the LED display select the
Click the Save button to apply the setting.

Diagnostics

To check the connection automatically, type in a host name or an IP Address and the perform either a Ping
or Traceroute diagnosis and click the Start button.
To diagnose any connection issues, select Management from the menu on the left, then choose Diagnostics
from the submenu.
The following progress indicator will appear while the test is in progress.
CF40MESH Wi-Fi 6 Gateway– User Guide
UG01438 v1.00 December 2022
On radio button.
Off radio button.

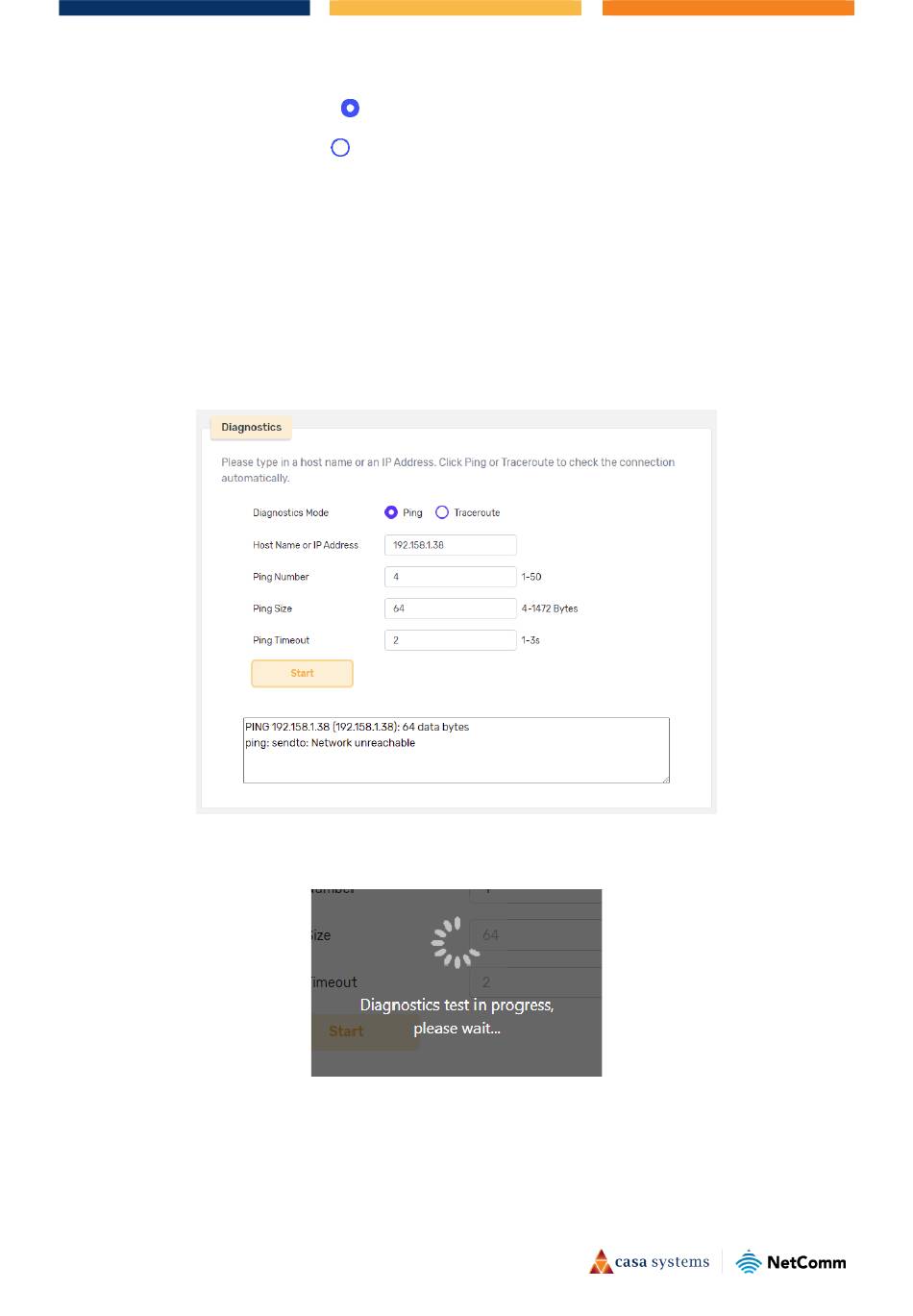

Figure 66 - Management – Diagnostics
Figure 67 – Diagnosis in progress icon
52 of 56
