Virtual Server

A Virtual Server allows you to direct incoming traffic from the WAN interface (identified by its Protocol and
External port) to the Internal server with a private IP address on the LAN interface.
To access this page, select Advanced Setup from the menu on the left, then choose Virtual Server from the
submenu.
The Device List provides details of each virtual server.

Add Virtual Server Rule

Click the add button
Click the Save button to add the rule to the Virtual Server Device list.
CF40MESH Wi-Fi 6 Gateway– User Guide
UG01438 v1.00 December 2022

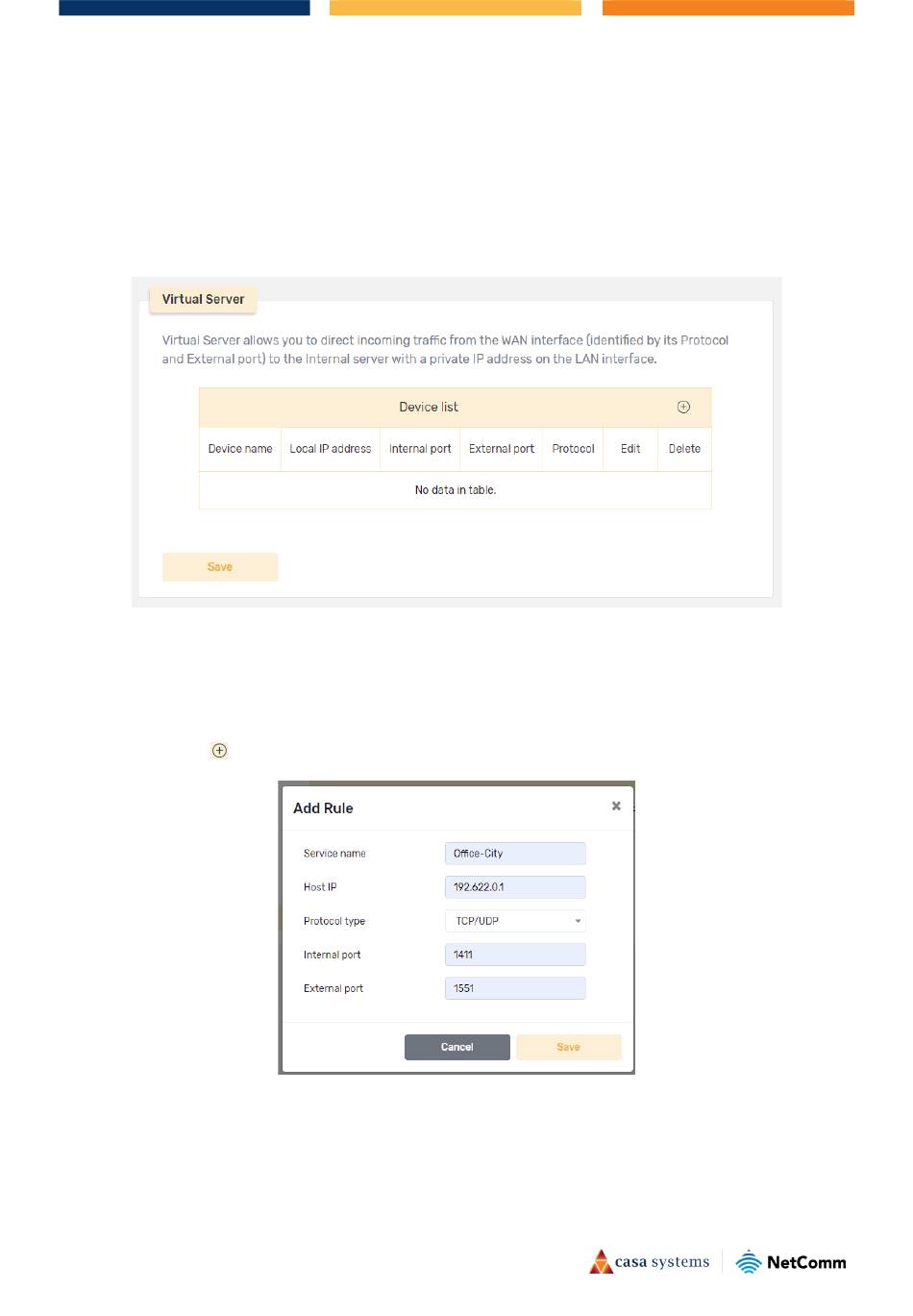

Figure 43 - Advanced Setup – Virtual Server Device List table
in the Device List heading bar to open the Add Rule popup box:
Figure 44 - Advanced Setup – Add Virtual Server Rule dialog
37 of 56
