Access List

The IP Address Access Control mode, if enabled, permits access to local management services from the WAN
side IP addresses contained in the Access Control List.
If the Access Control mode is disabled, the system will not validate the WAN side IP addresses for incoming
packets. The services affected are the system applications listed in the Service Control List.
Click the Save button to Enable or Disable the rules described in the table for this functionality.

Add Access Rule

Click the add button
Click the Done button to add the new rule to the Access List table.
CF40MESH Wi-Fi 6 Gateway– User Guide
UG01438 v1.00 December 2022

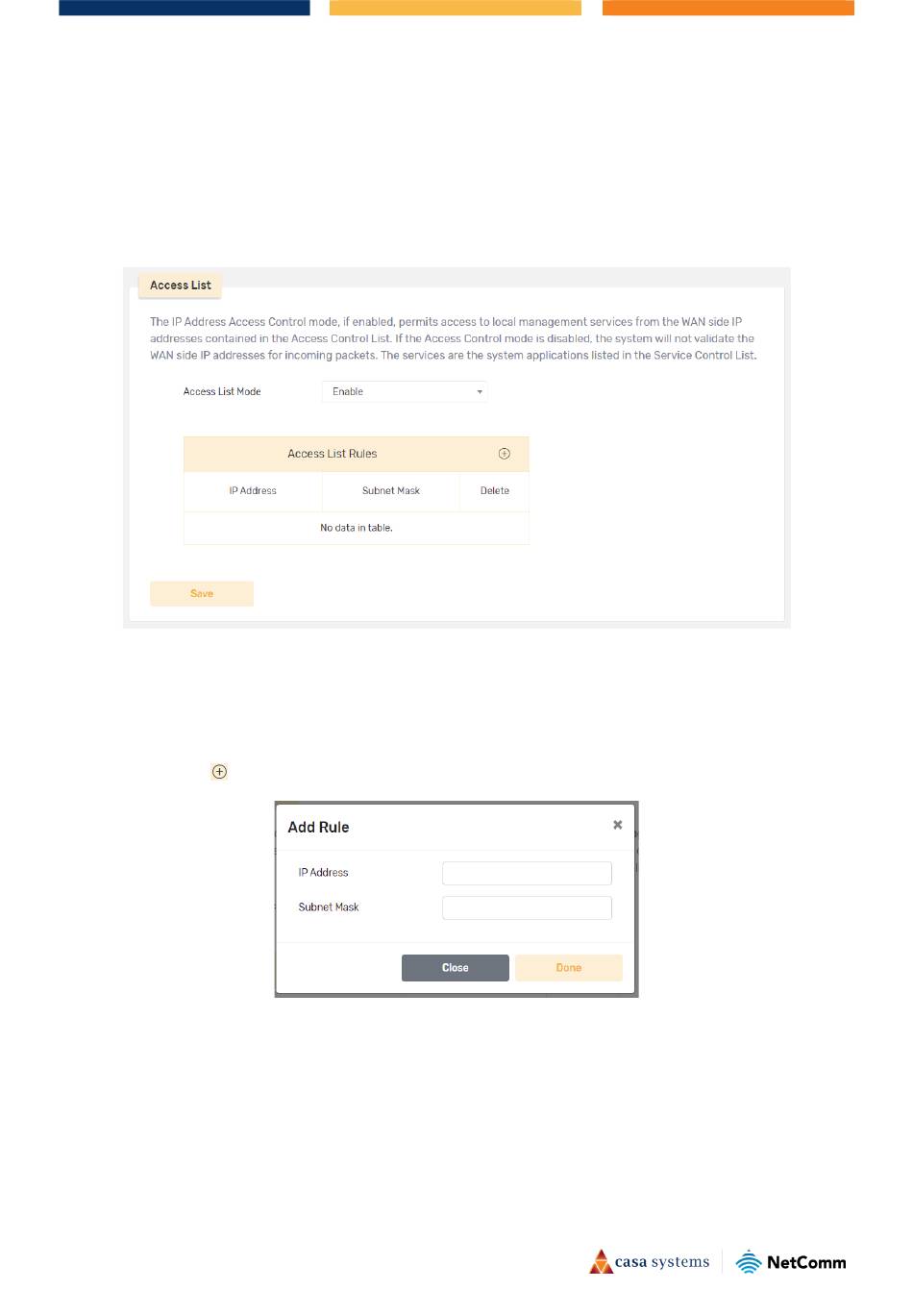

Figure 62 - Management – Access Rules List
in the Access List heading bar to open the Add Rule popup box:
Figure 63 - Advanced Setup – Add Access Rule dialog
50 of 56
