Port Shaping

QoS port shaping supports traffic shaping of Ethernet interface.
To access this functionality select Advanced Setup from the menu on the left, then QoS from its submenu.

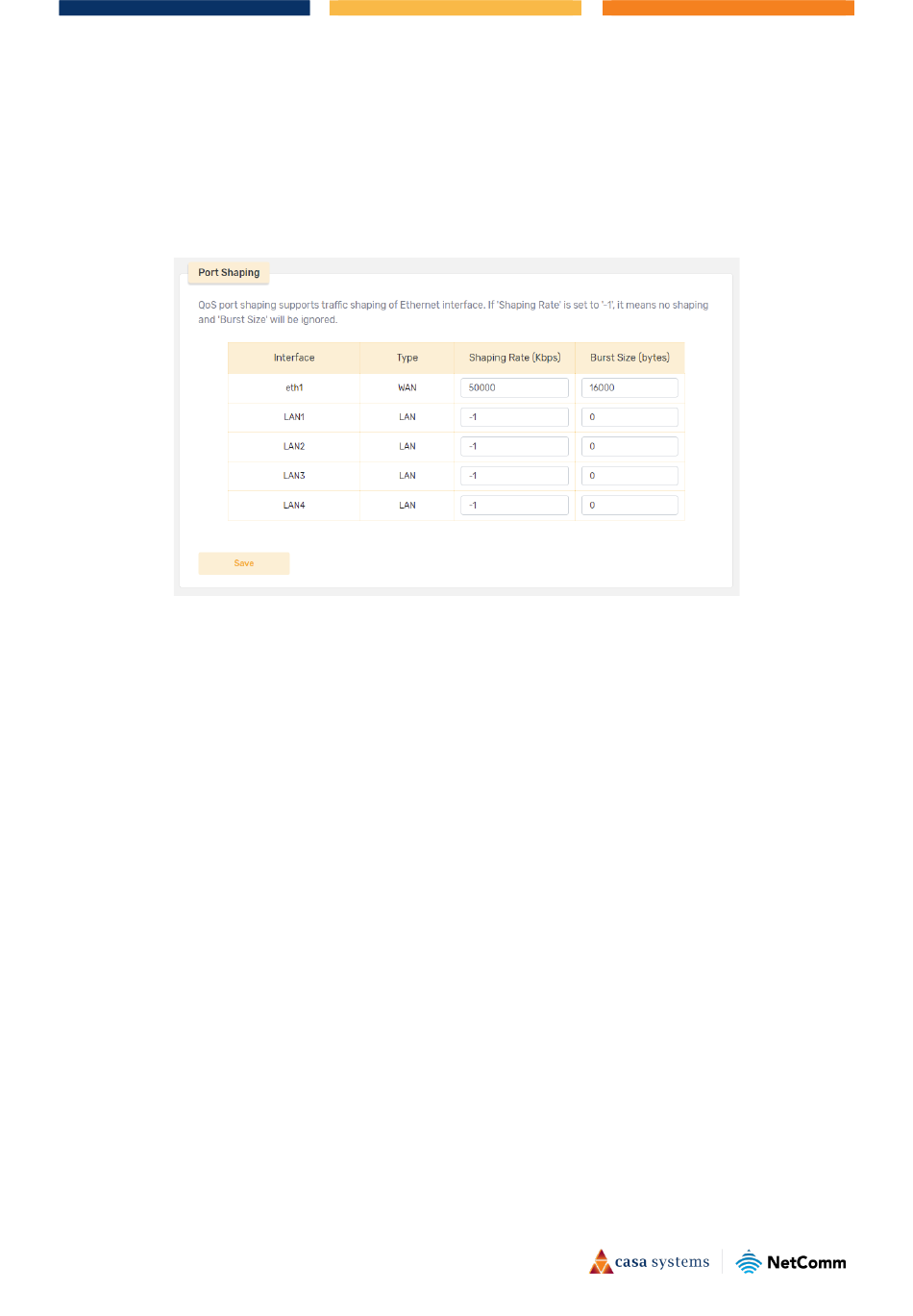

The fourth section of the page contains a table showing Port Shaping details.
Note that if Shaping Rate (Kbps) is set to '-1', it means no shaping and Burst Size (bytes) will be ignored.
Enter new settings into the fields and click the Save button to make changes to the Port Shaping settings.
CF40MESH Wi-Fi 6 Gateway– User Guide
UG01438 v1.00 December 2022
Figure 52 - Advanced Setup – LAN
