Casa Systems NetComm CF40MESH User Manual page 47

Click Select Firmware button, navigate to the folder where the downloaded file was saved.
Select the firmware update image file and click the Open button. Once successfully uploaded, the filename
will appear to the left of the Select Firmware button and the Update button to install the firmware.
If you want to remove the existing firmware image files select
delete the previous firmware files.
TR-069
The WAN Management Protocol (TR-069) allows an Auto-Configuration Server (ACS) to remotely perform
auto-configuration, provision, collection, and diagnostics to this device.
To access this page, select Management from the menu on the left, then choose TR-069 from the submenu.
By default the TR-069 functionality is disabled, select
Select Enable for either Inform or Connection Request Authentication to apply additional security settings.
Click the Save button to allow TR-069 access based on those settings.
CF40MESH Wi-Fi 6 Gateway– User Guide
UG01438 v1.00 December 2022
Enable to display the following settings fields:

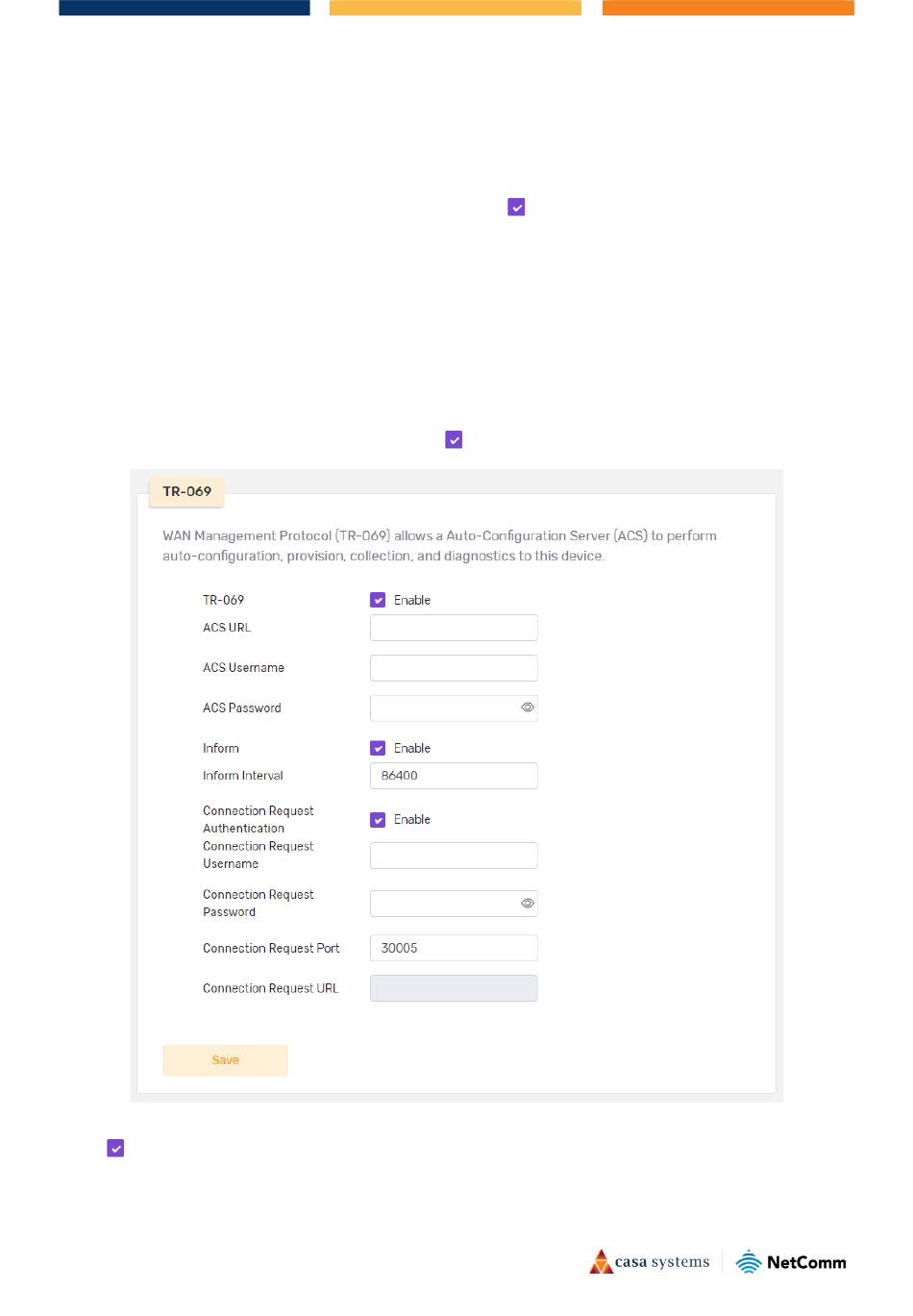

Figure 59 - Management –TR-069 – display settings
Clear current configuration permanently
47 of 56
