Advanced Configuration Of The Wi-Fi 6 Gateway - Casa Systems NetComm CF40MESH User Manual

Advanced configuration of the Wi-Fi 6 Gateway

To perform advanced configuration of the Wi-Fi 6 Gateway, you can access its web interface.
1 Push the power button on the side of the Wi-Fi 6 Gateway to turn it on. Wait a few minutes for it to
complete starting up.
2 Open a web browser and type 192.168.20.1 into the address bar, then press Enter.
3 At the login screen, type admin into the Username field. In the Password field, type the unique
password printed on the label on the bottom of the gateway, then click the Login button. If you have
changed the password, enter your chosen password instead.
4 The four-section Summary screen is displayed.
The Summary screen displays an overview of some of the critical elements of the gateway.
CF40MESH Wi-Fi 6 Gateway– User Guide
UG01438 v1.00 December 2022

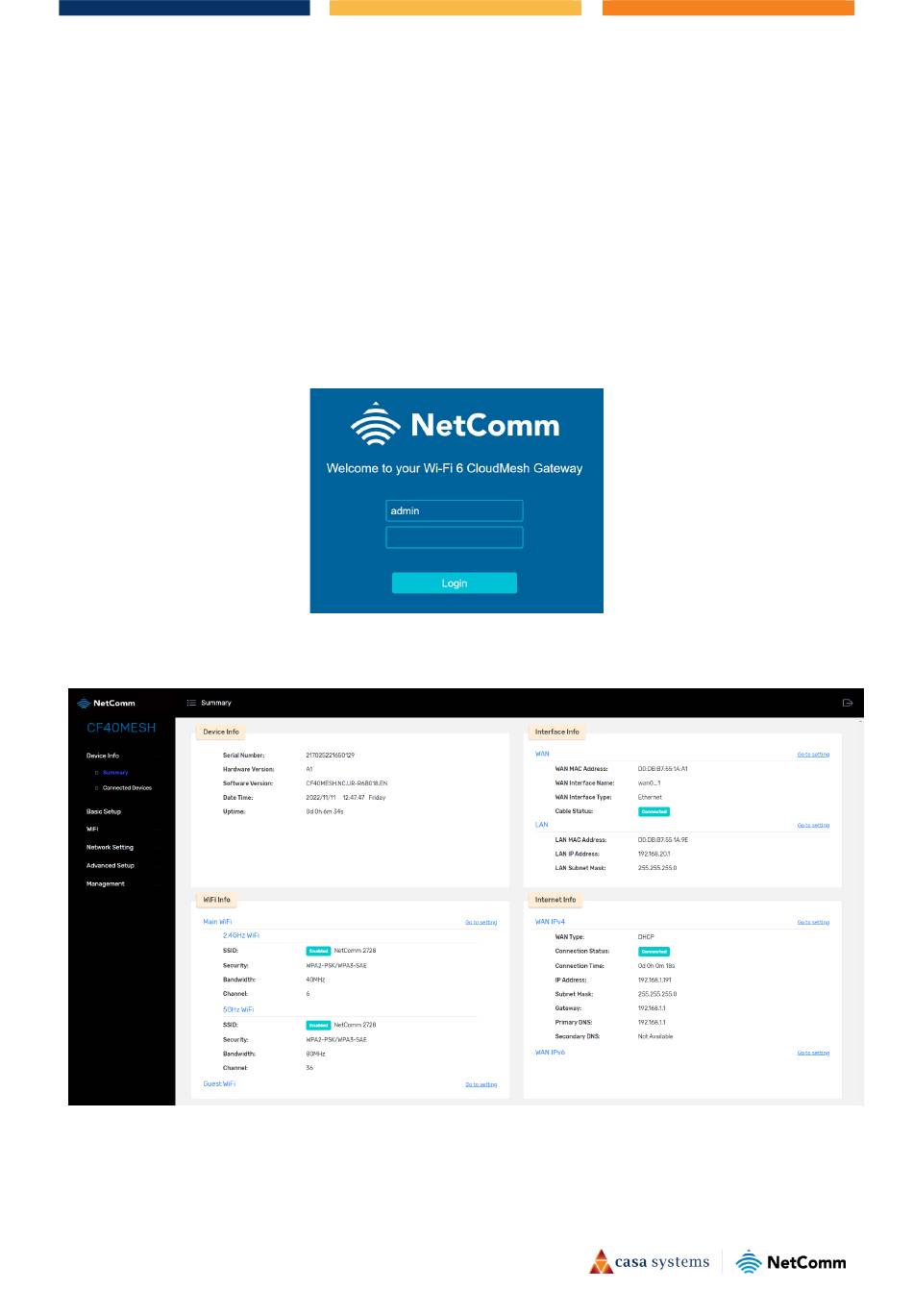

Figure 3 – Login screen
Figure 4 – Device Info > Summary screen
10 of 56
