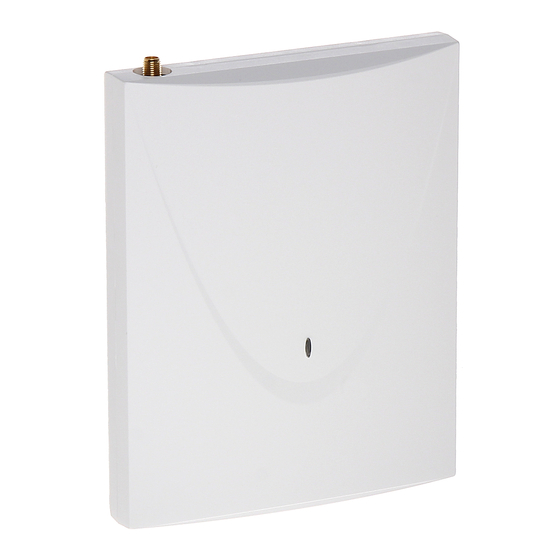

- Page 1 Communication module GSM LT-2 Firmware version 2.14 gsmLT-2_en 05/13 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
- Page 2 Directive 1999/5/EC. The declaration of conformity may be consulted at www.satel.eu/ce The SATEL's goal is to continually upgrade the quality of its products, which may result in alterations of their technical specifications and firmware. The current information on the introduced modifications is available on our website.
-
Page 3: Table Of Contents
10 program ......................20 LOAD 5.2.4 Status bar ............................21 5.2.5 Changing the program access code ....................21 5.2.6 “GSM LT-2” tab ..........................22 5.2.7 “Inputs / Tel. messaging” tab......................27 5.2.8 "Reporting" tab ..........................30 5.2.9 "Reporting – inputs" tab ........................33 5.2.10 "TCP/IP downloading" tab.........................34 5.2.11 "Firmware update"... - Page 4 GSM LT-2 SATEL 13. R ..................46 ESTORING THE FACTORY SETTINGS 13.1 D 10 P ......................... 46 LOAD ROGRAM 13.2 DTMF ......................46 PROGRAMMING 13.3 M 10) .................. 46 ODULE FACTORY SETTINGS LOAD 14. S ........................48 PECIFICATIONS...
-
Page 5: Gsm Lt-2 Module Features
SATEL GSM LT-2 1. GSM LT-2 MODULE FEATURES Simulation of analog telephone line when using the GSM connection. Built-in industrial GSM telephone working in 850/900/1800/1900 MHz cellular telephony networks. Capability of remotely checking the status of available resources and the account validity of SIM card installed in the module. -
Page 6: Typical Module Applications
GSM LT-2 SATEL Capability of remotely updating the module firmware by means of GPRS (modules with built-in GSM u-blox LEON-G100 telephone). Powered with 12 V DC (±15%). YPICAL MODULE APPLICATIONS The extended functionality of GSM module enables it to be used for a variety of applications. -
Page 7: Integration With Integra Control Panels
SATEL GSM LT-2 Fig. 2. Module simulating the monitoring station. INTEGRA NTEGRATION WITH CONTROL PANELS Fig. 3. Module working in conjunction with the INTEGRA control panel. When connected to the INTEGRA control panel, the module offers the following benefits: transmission of event codes to the monitoring station via GSM network;... -
Page 8: Working In Conjunction With Pbx Stations
GSM LT-2 SATEL Fig. 4. Module working in conjunction with the STAM-2 monitoring station. ORKING IN CONJUNCTION WITH STATIONS The module can work in conjunction with the Private Branch Exchanges (PBX) as an additional external telephone line. It can be used to make outgoing calls to the mobile phone numbers and thus optimize the costs incurred. - Page 9 SATEL GSM LT-2 Fig. 5. View of GSM LT-2 module electronics board. Explanations for Fig 5: 1 - external antenna connection. 2 - GSM industrial telephone. 3 - SIM card socket. It is not recommended that SIM card be inserted into the socket before the card PIN code has been programmed in the module.
-
Page 10: Led Indicators
GSM LT-2 SATEL INDICATORS Shown graphically below is how information is presented by the LED indicators. Each lighting scheme covers about 4 seconds and is repeated after 1 second pause ( – LED is OFF; – LED is ON). STAT indicates the module status: –... - Page 11 SATEL GSM LT-2 level of GSM signal can be obtained. Do not install the antenna in parallel to the low- voltage electrical installation wires, because this may cause interference. 2. Connect the control panel, telephone or another device equipped with telephone dialer to the R-1 and T-1 terminals.
-
Page 12: Programming
GSM LT-2 SATEL 5. P ROGRAMMING You can configure the module using the keypad of telephone connected to the R-1 and T-1 terminals, or a computer with suitable software installed (locally and remotely). 5.1 DTMF PROGRAMMING 5.1.1 Programming mode In order to enter the module programming mode: 1. - Page 13 SATEL GSM LT-2 [05 ** ] – a 6-digit SMS control command to be sent to the module to start the remote modem communication between the INTEGRA control panel and the G X program or between UARD the CA-64 control panel and the G 64 program (see: “Call to user”...
- Page 14 GSM LT-2 SATEL [16 ** ] – 8-digit PUK code of the SIM card. If correct, the code will be confirmed after several seconds by 3 short beeps (SSS). The function is only available, if the SIM card is blocked.
- Page 15 SATEL GSM LT-2 enter from 1 to 16 characters (digits: 0-9 and characters: #, * , +). The entered phone number must be preceded by the country code. [27 ** ] – 6 digits representing the SMS control command to be sent to module to program the test transmission period (see: “Change test period.”...
- Page 16 GSM LT-2 SATEL other characters – value (you can program values from 0 to 127 seconds or minutes; value 0 means violations will be counted without any time limitations). [57 ** ] … [60 ** ] – a sequence of characters defining how long the input will be bypassed in case of the automatic bypassing ([57] –...
- Page 17 SATEL GSM LT-2 [92 ** ] – a 4-digit DTMF control code to check the input status (see "DTMF control" p. 29). [93 ** ] – parameter which defines the ringing time. You can program values from 0 to 99 (see "Ringing time"...
- Page 18 GSM LT-2 SATEL [106 ** ] – phone number to which SMS reporting is realized for the monitoring station 1. You can enter from 1 to 16 characters (digits: 0-9 and characters: #, * , +). The phone number entered must be preceded by the country code.
-
Page 19: Dload 10 Program
10 program version 1.00.039 is required for programming and configuration of the LOAD GSM LT-2 module version 2.14. The program is delivered free of charge with the device. Communication between the program and the module can be effected locally or remotely. - Page 20 GSM LT-2 SATEL Fig. 8. Selecting the GSM module after starting the D 10 program. LOAD Fig. 9. "Configuration" window. 6. Click on the button. The module data will be read out. Establishing communication will be indicated in the program window by a suitable message.
-
Page 21: Remote Programming
LOAD The remote programming is available after the following items have been programmed: in the “GSM LT-2” tab: PIN code of the SIM card (if PIN code is required by the card); access point name (APN) for the Internet GPRS connection ("GPRS APN" field);... -
Page 22: Main Menu Of Dload 10 Program
GSM LT-2 SATEL communication is to be established will be downloaded from the settings programmed in the module. Fig. 10. “TCP/IP” window. 5.2.3 Main menu of program LOAD Fig. 11. Main menu of D 10 program. LOAD Explanations for Fig 11: - GSM module type. -
Page 23: Status Bar
SATEL GSM LT-2 Przyciski: Events – button opens the "Events buffer" tab. Read – button allows reading data from the module. Write – button allows writing data to the module. Quit transmission – button makes it possible to cancel the data reading/writing. -
Page 24: Gsm Lt-2" Tab
5.2.6 “GSM LT-2” tab Shown in square brackets are the numbers of functions for the DTMF programming mode. Fig. 14. “GSM LT-2” tab. PIN code [01] – PIN code of SIM card. Entering a wrong code may result in blocking the SIM card. - Page 25 SATEL GSM LT-2 download it automatically. Otherwise, it is necessary to enter the number, if the module is to send SMS messages. It should be remembered that the number written into the module must be suitable for the network in which the SIM card is registered.
- Page 26 GSM LT-2 SATEL Password – password for Internet GPRS connection. The GPRS parameters can only be programmed using the D 10 program. LOAD APN, user name and password have to be programmed, if the data transfer using GPRS technology technologii (event codes, programming) is to be available.
- Page 27 SATEL GSM LT-2 INTEGRA control panel, and the access to D X program is blocked, the module will LOAD send an appropriate SMS message to the telephone number programmed using the "Send SMS on change to" function (see: p. 25).
- Page 28 GSM LT-2 SATEL the module / module will have to send a test transmission, the connection will be terminated. If this option is disabled, messaging / test transmission will only be realized when the device connected to the telephone line output completes the call.
-
Page 29: Inputs / Tel. Messaging" Tab
SATEL GSM LT-2 Test tr. with GSM status [94] – if this option is enabled, it is possible to obtain information on module input status, current GSM signal level and the content of SMS message programmed for the test transmission (see: “Tel. messaging” p. 29). - Page 30 GSM LT-2 SATEL Input restore IN1–4 [44] – the time counted from the input restore, after which the module will recognize that the normal status of input is restored. You can program 4 seconds or 4 minutes. Bypassing input [70] – you can indicate one input as bypassing input, i.e. its violation will result in bypassing other inputs of the module.
- Page 31 SATEL GSM LT-2 Tel. messaging For the events about the occurrence of which the module is to notify, you should indicate which telephones and how will be notified. In the D 10 program, you can do so by double LOAD clicking on the field corresponding to the telephone number.
-
Page 32: Reporting" Tab
GSM LT-2 SATEL Local control tel. no. [96] You can program a 6-character code that allow to start the local DTMF control. After entering this code from the keypad of telephone connected to the telephone line output, it will be possible to control the module inputs (see the section describing control from the keypad of telephone connected to the telephone line output p. - Page 33 SATEL GSM LT-2 Configuring the reporting Reporting [97] – if this option is enabled, the module can report to monitoring station. For the modules with built-in industrial-type GSM telephone other than the u-blox LEON-G100 telephone, enabling the reporting feature will disable the feature of PAGER message conversion into SMS messages.
- Page 34 GSM LT-2 SATEL GPRS key – a sequence of up to 5 alphanumeric characters to identify the module. It must be consistent with that programmed in the monitoring station ("ETHM / GPRS key"). Priority In order to add a reporting link: 1.
-
Page 35: Reporting - Inputs" Tab
SATEL GSM LT-2 AUDIO reporting/station simulation Tel. Number [101] / [102] – the number after dialing of which by the device connected to the telephone line output the module will receive event codes and retransmit them to the monitoring station using the GSM telephone. The method of forwarding the event codes should be determined by selecting the suitable reporting links –... -
Page 36: Tcp/Ip Downloading" Tab
GSM LT-2 SATEL CODE – the event code which will be sent to the monitoring station. For the 4/2 format, 2 characters are to be programmed (digits or letters from A to F), and for Contact ID – 3 digits. In the case of Contact ID format, you can use the code editor. To open the window of code editor, click on the button available in the event description field. -
Page 37: Firmware Update" Tab
10 program. LOAD For information on the firmware update server please visit the www.satel.eu site. Update server – the address of server to which the module is to connect for firmware update. It can be entered as an IP address or as a name. -
Page 38: Events Buffer" Tab
GSM LT-2 SATEL connection. If the address is not entered, the module will connect to the server whose address has been programmed in the module. Fig. 19. "Firmware update" tab. The values shown are only an example. Check for updates after every reboot –... -
Page 39: Control
SATEL GSM LT-2 Fig. 20. "Events buffer" tab. 6. C ONTROL EMOTE 6.1.1 Tone control from telephone keypad Program the "Time of ringing" parameter (see: p. 26). Program the control codes (see: section “DTMF control” p. 29). If the control availability is to be limited to the telephones whose numbers have been programmed in the module (see: p. -
Page 40: Using Sms
GSM LT-2 SATEL 6.1.2 Using SMS Program the control commands (see: “SMS control” p. 24 and 29). If the control availability is to be limited to the telephones whose numbers have been programmed in the module (see: “Test transmissions” p. 26, “Send SMS on change to”... -
Page 41: Control From Dload 10 Program
SATEL GSM LT-2 2. Press the [ * ] key and the keys corresponding to the 2 digits: the first digit is, respectively: 1 - bypass input, 2 - unbypass input, 3 - check input status (in response, the device will generate beeps): 1 short beep –... -
Page 42: Starting The Gprs Reporting
GSM LT-2 SATEL programmed in the module by means of the “Tel. Number” functions (see: p. 33) or the "Reporting" option must be disabled in the module. GPRS TARTING THE REPORTING Enable the "Monitoring" option. Program the system identifier (see: p. 31). -
Page 43: Starting The Csd Reporting
SATEL GSM LT-2 TARTING THE REPORTING Enable the "Monitoring" option. Select CSD as the reporting link (see: “Priority” p. 32). Enable the event buffering, if the events are to be written to the event log and the module is to acknowledge receipt of events from the control panel before forwarding them to the monitoring station (see: “Events buffering”... -
Page 44: Reporting Events From The Control Panel (Sms)
GSM LT-2 SATEL 7.3.2 Reporting events from the control panel (SMS) Control panel connected only to the telephone line output 1. Program the parameters in the same way as described in section "Reporting the module status (SMS)" it. 1 (you do not need to program the system identifier). -
Page 45: Starting The Sms Messaging
SATEL GSM LT-2 TARTING THE MESSAGING 1. Enter the SMS center number, unless it has been written to the SIM card memory by the operator (“SMS center no.” p. 22). 2. Define, as required, the rules for messaging about module related events (see: “Tel. -
Page 46: Sending Sms Messages From The Telephone Connected To Telephone Line Output
GSM LT-2 SATEL DT-1 Table 2. Parameters of the paging station signal for the DT-1 dialer. 2. Program the other parameters required to start the PAGER type messaging (see DT-1 dialer manual). 10. S ENDING MESSAGES FROM THE TELEPHONE CONNECTED TO TELEPHONE... -
Page 47: The Rules For Converting The Numbers
SATEL GSM LT-2 2. Dial the pager station number programmed in the module (see: "PAGER station tel. no." p. 23), and then the telephone number to which the SMS message is to be sent. The number should be dialed as soon as possible, without time gaps between the successive digits (the country prefix should be entered depending on whether it has been programmed by means of the "Prefix for SMS"... - Page 48 Call the function [13**], enter the digits 1234 and confirm using the # key. The factory settings will be restored. 13.3 M ODULE FACTORY SETTINGS LOAD “GSM LT-2” tab: Modem format: auto Acces code: 123456 RS-232 baud rate: 19200 bps Enabled options:...
- Page 49 SATEL GSM LT-2 “Inputs / Tel. messaging” tab: Input type IN 1-4: 2.NO Input sensitivity IN 1-4: 200 ms Input restore IN 1-4: 4 sec. Auto-bypass on alarms IN 1-4: 3 Counting period IN 1-4: 120 sec. Auto-bypass duration IN 1-4: 24 h.
- Page 50 GSM LT-2 SATEL 14. S PECIFICATIONS Number of inputs........................4 Supply voltage ....................12 V DC ±15% Required minimum output current of power supply unit ..........500 mA Standby current consumption ..................60 mA Maximum current consumption ..................250 mA Current-carrying capacity, FLT outputs ................50 mA Environmental class according to EN50130-5 .................II...
- Page 51 IMPORTANT: PIN No........PUK No..............Telephone No..........................................................................................................................
