- Page 1 GPRS/SMS Reporting Module GPRS-T4 Program version 3.01 gprs-t4_en 10/13 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
- Page 2 SIM card with tariff plan providing for at least 10 MB monthly data transfer. SATEL's goal is to continually improve the quality of its products, which may result in alterations of their technical specifications and firmware. Current information on the introduced modifications is available on our website.
-
Page 3: Module Features
SATEL GPRS-T4 The GPRS-T4 module is a device dedicated for use in intruder alarm systems for the purpose of reporting and messaging via the GSM networks. The main task of the module is monitoring the status of inputs. A change of the input status results in sending event codes to the monitoring stations or notifying selected telephone numbers by means of SMS message or CLIP service. - Page 4 GPRS-T4 SATEL Ability to control the outputs from 64 telephones using the CLIP service. Monitoring the input status is effected by sending event codes to two monitoring stations (using the TCP or UDP protocol) by means of: – GPRS transmission;...

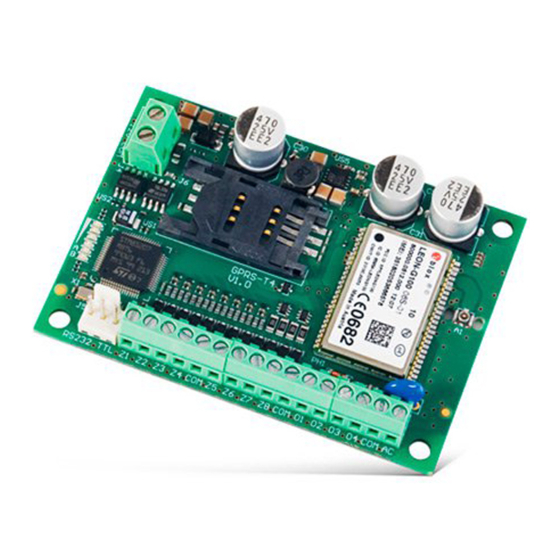

- Page 5 SATEL GPRS-T4 Fig. 2. View of module electronics board. Explanations for Figure 2: 1 - SIM card socket. It is not recommended to insert the SIM card into its socket before programming the card PIN code in the module (if the card requires entering the PIN code).
-
Page 6: Installation
Disconnect power before making any electrical connections. It is not recommended to power up the device with disconnected antenna. The GPRS-T4 module should be installed indoors, in spaces with normal air humidity. When selecting the installation place, take into consideration that thick walls, metal partitions, etc. - Page 7 SATEL GPRS-T4 Fig. 4. Example of connecting power supply and testing AC voltage presence in GPRS-T4 module. 1 – transformer. 2 – power supply unit. 3 – GPRS-T4 module. Fig. 5. Installing the SIM card.
- Page 8 GPRS-T4 SATEL Fig. 6. GPRS-T4 module in housing, secured with a plastic strap. Before you begin using the module, remove the plastic strap protecting the device during transport. Be careful when removing the strap, so as not to damage any components on the electronics board.
- Page 9 SATEL GPRS-T4 4.2 Remote programming using GPRS technology During the remote programming of the module, all functions that require the use of GSM telephone will be disabled. Remote programming is possible when the "Remote programming" option is enabled in the module and the following items have been programmed: –...
- Page 10 GPRS-T4 SATEL Fig. 7. Main menu of GPRS-S program. - Configuration – button enables opening the "Connection" window. The window enables configuration of parameters relating to the mode of communication between program and module: – select the computer COM port through which local programming is to be effected;...
- Page 11 Fig. 8. "GSM telephone, Monitoring stations" tab. Programming GPRS-T4 identifier – a sequence of 1 to 8 alphanumeric characters to identify the module. Communication between the program and the module is only possible when the identifier entered in this field is consistent with that stored in the module. No identifier is preprogrammed in the module with factory default settings.
- Page 12 GPRS-T4 SATEL a telephone whose number is stored in the module memory in the list of telephone numbers for messaging. Initiating SMS – a code which must be included in the SMS message sent to the module GSM telephone number, so that the module can make an attempt to connect to the computer whose IP address and communication port are indicated in the SMS message.
- Page 13 SATEL GPRS-T4 Monitoring station 1 / Monitoring station 2 Using GPRS technology, event codes can be sent to the STAM-2 monitoring station or to the SMET-256 converter. Communication with the subscriber sending event codes with the use of GPRS technology should be tested by the monitoring station as rarely as possible (if a value lower than 1 minute is entered in the "Test period"...
- Page 14 GPRS-T4 SATEL SMS format The format of SMS messages for SMS reporting must be defined according to the monitoring station requirements. The default SMS messages format programmed in the module corresponds to the factory default settings of the STAM-2 monitoring station (program version1.2.0 or later).
- Page 15 SATEL GPRS-T4 Fig. 9. "Test transmission, Control" tab. Event codes for module test transmission The table makes it possible to define the Contact ID codes which will be sent to the monitoring stations for the module test transmission. Format – the field displays information that the code is sent in the Contact ID format.
- Page 16 GPRS-T4 SATEL object identifier different from "0000" is programmed, reporting format is programmed, event code different from "000" is programmed. Test transmissions to be sent to telephone numbers The table allows you to define the form in which the test transmissions will be sent to the telephone numbers programmed in the "GSM telephone, Monitoring stations"...
- Page 17 SATEL GPRS-T4 – Z1 ÷ Z8 – information on the status of Z1 ÷ Z8 inputs: i – digital / analog input normal status, I – digital input violated, L – voltage at analog input has dropped below threshold L; information on input voltage value, H –...
- Page 18 GPRS-T4 SATEL Turn off – enter in this field the SMS message content that will be sent to the module telephone number in order to deactivate the output. Turn on for period – enter in this field the SMS message content that will be sent to the module telephone number in order to activate the output for a defined period of time.
- Page 19 SATEL GPRS-T4 – the NO type digital input must be again disconnected from the ground so that the module can register input restore, – voltage on the analog input must rise above threshold L (plus tolerance) or drop below threshold H (minus tolerance) so that the module can register input restore.
- Page 20 GPRS-T4 SATEL – ON for a time – violation of the input or exceeding the voltage value at threshold L or H, as defined for the input, will activate the output for a period of time, – OFF – violation of the input or exceeding the voltage value at threshold L or H will deactivate the output.
- Page 21 SATEL GPRS-T4 Fig. 12. “CLIP / SMS messaging” tab. Restore – content of the SMS message that will be sent on the input restore. The message may consist of up to 24 characters. It may not contain any diacritical characters. If the field is left blank, the message will not be sent.
- Page 22 GPRS-T4 SATEL Fig. 13. "Reporting" tab. Violation/pass Zone n. / Restore Zone n. – zone / module / user number which will be sent in the event code. Violation/pass Event / Restore Event – this field displays description of the event, whose code is entered in the "CODE"...
- Page 23 "Test transmission, Control" tab). 4.3.8 “Firmware update” tab The module firmware can be updated remotely via GPRS. For information on the firmware update server please refer to the www.satel.eu website. Fig. 15. "Firmware update" tab. Update server – address of the server to which the module is to connect in order to update the firmware.
- Page 24 GPRS-T4 SATEL 4.4 Programming by means of SMS messages You can program the module using SMS messages: at any moment from the telephone whose number is programmed in the "Telephone numbers for messaging and test transmissions" list, "GSM telephone, Monitoring stations"...
- Page 25 SATEL GPRS-T4 – enter the GPRS key. 3. Define the protocol to be used by the module for sending event codes to the monitoring station ("TCP/IP" and "UDP" fields). 4. Determine the operation mode for the inputs, the status of which is to be monitored ("Inputs"...
-
Page 26: Restoring Factory Default Settings
GPRS-T4 SATEL 3. Define the operation manner for the inputs where the status change will result in notification ("Inputs" tab): – define the input type (digital of NO or NC type, or analog); – define the "Sensitivity" and "Restore" parameters for the inputs (for the AC input only the "Sensitivity"... -
Page 27: Specifications
SATEL GPRS-T4 Fig. 16. "Factory default settings" function in the "Communication" menu. Most parameters in the factory default settings are not defined, and the options are not enabled. Only the following parameters are defined: "GSM telephone, Monitoring stations" tab Monitoring station 1 / 2: Disabled –... - Page 28 GPRS-T4 SATEL OC outputs rating.................... 50 mA / 12 V DC Environmental class .........................II Working temperature range ..................-10...+55 °C Electronics board dimensions ................. 80 x 57 mm Weight..........................184 g...
