Summary of Contents for Satel GPRS-T6
- Page 1 GPRS/SMS Reporting Module with Power Supply GPRS-T6 Program version 3.01 gprs-t6_en 10/13 SATEL sp. z o.o. ul. Schuberta 79 80-172 Gdańsk POLAND tel. + 48 58 320 94 00 info@satel.pl www.satel.eu...
- Page 2 SIM card with tariff plan providing for at least 10 MB monthly data transfer. SATEL's goal is to continually improve the quality of its products, which may result in alterations of their technical specifications and firmware. Current information on the introduced modifications is available on our website.
-
Page 3: Module Features
SATEL GPRS-T6 The GPRS-T6 module is a device dedicated for use in intruder alarm systems for the purpose of reporting and messaging via the GSM networks. The main task of the module is monitoring the status of inputs. A change of the input status results in sending event codes to the monitoring stations or notifying selected telephone numbers by means of SMS message or CLIP service. - Page 4 GPRS-T6 SATEL 4 OC type outputs (programmed as NO or NC), controlled: – locally – by means of inputs; – remotely – by means of SMS messages or CLIP. Ability to control the outputs from 64 telephones using the CLIP service.

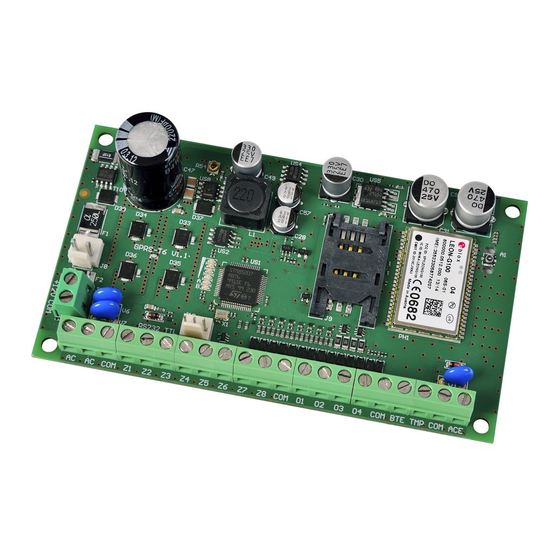

- Page 5 SATEL GPRS-T6 Fig. 2. View of module electronics board. Explanations for Figure 2: 1 - battery connection cables (red +, black -) . 2 - LEDs indicating the module status (see: Fig. 3). – LED A is blinking when GPRS transmission is going on, –...
-
Page 6: Installation
3.3 The GPRS-T6 module installation The module PCB contains electronic components sensitive to electric charges. The GPRS-T6 module should be installed indoors, in spaces with normal air humidity. When selecting the installation place, take into consideration that thick walls, metal partitions, etc. - Page 7 Complete all wiring before connecting AC power or the battery. 3.4.1 Main power supply The GPRS-T6 module requires 18 V AC (±10%) power supply. It is recommended that a transformer with at least 40 VA rating be used. Never connect two devices with power supply unit to one transformer.
- Page 8 GPRS-T6 SATEL circuit should be protected with a proper safety device. The owner or user of the module should be instructed on how to disconnect the transformer from the mains (e.g. by indicating the circuit breaker which protects the module supply circuit).
- Page 9 SATEL GPRS-T6 Fig. 5. Installing the SIM card. 4. Programming and configuring the module For programming and configuring the module, the GPRS-S program version 1.07.000 is required. The program is delivered free of charge with the device. Communication between the program and the module can be effected locally or remotely. The module with factory default settings can only be programmed locally.
- Page 10 GPRS-T6 SATEL Remote programming is possible when the "Remote programming" option is enabled in the module and the following items have been programmed: – PIN code (if the card requires entering the PIN code); – Access Point Name (APN) for Internet GPRS connection;...
- Page 11 SATEL GPRS-T6 Explanations for Figure 6: - Read from file – button enables loading configuration data from file. - Write to file – button enables saving configuration data to file. - Read – button enables reading data from the module.
- Page 12 Fig. 7. “GSM telephone, Monitoring stations” tab. Programming GPRS-T6 identifier – a sequence of 1 to 8 alphanumeric characters to identify the module. Communication between the program and the module is only possible when the identifier entered in this field is consistent with that stored in the module. No identifier is preprogrammed in the module with factory default settings.
- Page 13 SATEL GPRS-T6 a telephone whose number is stored in the module memory in the list of telephone numbers for messaging. Initiating SMS – a code which must be included in the SMS message sent to the module GSM telephone number, so that the module can make an attempt to connect to the computer whose IP address and communication port are indicated in the SMS message.
- Page 14 GPRS-T6 SATEL Monitoring station 1 / Monitoring station 2 Using GPRS technology, event codes can be sent to the STAM-2 monitoring station or to the SMET-256 converter. Communication with the subscriber sending event codes with the use of GPRS technology should be tested by the monitoring station as rarely as possible (if a value lower than 1 minute is entered in the "Test period"...
- Page 15 SATEL GPRS-T6 SMS format The format of SMS messages for SMS reporting must be defined according to the monitoring station requirements. The default SMS messages format programmed in the module corresponds to the factory default settings of the STAM-2 monitoring station (program version1.2.0 or later).
- Page 16 GPRS-T6 SATEL SMS test transmission – enter in this field the SMS message body which will be sent as the module test transmission to the selected telephone numbers. If you have defined the time period after which the test transmission is to be sent, and the "SMS test transmission"...
- Page 17 SATEL GPRS-T6 Part. – enter in this field the partition number which will be included in the event message sent to the monitoring station. Zone n. – enter in this field the zone number which will be included in the event message sent to the monitoring station.
- Page 18 GPRS-T6 SATEL CLIP CLIP starts test transmission – if this option is enabled, it is possible to send a test transmission with the use of CLIP service. Call the module telephone number and after hearing the dialing tone, hang up – the module will identify the telephone number of the calling party and send a test transmission according to the preprogrammed settings.
- Page 19 SATEL GPRS-T6 status information when the telephone number, identified owing to the CLIP service, is one of the numbers programmed in the "GSM telephone, Monitoring stations" tab on the "Telephone numbers for messaging and test transmissions" list. If the "Reaction to CLIP only when number is on list of telephones for messaging"...
- Page 20 GPRS-T6 SATEL – telephone damage. Additional information about the trouble is provided by the LEDs on the electronics board (see Fig. 3). 4.3.4 “Inputs” tab Fig. 9. “Inputs” tab. Inputs The table enables programming the working parameters of Z1 ÷ Z8, BTE, TMP and ACE inputs.
- Page 21 SATEL GPRS-T6 – voltage on the analog input must rise above threshold L (plus tolerance) or drop below threshold H (minus tolerance) so that the module can register input restore. The defined time makes it possible to reduce the number of sent transmissions. Values from the 0 to 255 seconds range can be programmed.
- Page 22 GPRS-T6 SATEL – OFF – violation of the input or exceeding the voltage value at threshold L or H will deactivate the output. Input bypass Block – enter in this field the SMS message content that will be sent to the module telephone number in order to block the input(s) indicated as blocked in the "Inputs"...
- Page 23 SATEL GPRS-T6 stations" tab), to which an SMS message is to be sent to notify about a change of input status or occurrence of the particular trouble. Violation/pass – content of the SMS message that will be sent on the input violation / exceeding the preprogrammed input voltage value (rise above the defined value at threshold H or drop below the defined value at threshold L) / occurrence of trouble.
- Page 24 GPRS-T6 SATEL Violation/pass Code / Restore Code – the event code that will be sent to the monitoring station when the input status changes. 4 digits are to be programmed in the following form: Q-XYZ, where: – Q – digit 1 or 3 (1 – new event/disarming, 3 – new restore/arming), –...
- Page 25 The module firmware can be updated remotely via GPRS. The module firmware can be updated remotely via GPRS. For information on the firmware update server please refer to the www.satel.eu For information on the firmware update server please refer to the www.satel.eu website.
- Page 26 GPRS-T6 SATEL during 15 minutes after module start from any telephone. After receipt of the SMS programming message, the programming mode will be extended each time by 15 minutes, counting from the moment of receiving the message. Using the SMS messages you can: 1.
- Page 27 SATEL GPRS-T6 – define the “Sensitivity” and “Restore” parameters for the inputs (for the ACE input only the “Sensitivity” parameter); – define additionally the “L threshold”, “H threshold” and “Tolerance” parameters for the analog inputs. 5. Define the status of which inputs and how is to be monitored (“Reporting” tab): –...
-
Page 28: Restoring Factory Default Settings
GPRS-T6 SATEL – define additionally the “L threshold”, “H threshold” and “Tolerance” parameters for the analog inputs. 4. Define which telephone numbers will be notified by using the CLIP service in case of input status change – fields "T1", "T2", "T3" and "T4" (“CLIP/SMS messaging” tab). -
Page 29: Specifications
SATEL GPRS-T6 “Test transmission, Control” tab CLIP: Reaction to CLIP only when number is on list of tel. for messaging – the option is enabled Control: SMS control only from list of tel. numbers for messaging – the option is enabled “Inputs”... - Page 30 GPRS-T6 SATEL +12V output rating..................500 mA / 12 V DC OC outputs rating.................... 50 mA / 12 V DC Environmental class .........................II Working temperature range ..................-10...+55 °C Electronics board dimensions ................120 x 68.5 mm Weight of device with enclosure (without transformer and battery)......... 1012 g...
