Wall Mounting for CV3200LCD TV
The CLEAR VIEW-CV32LCD requires a PD168-204 mounting kit (purchased separately)
Contact PDi for any questions regarding TV installation.
1

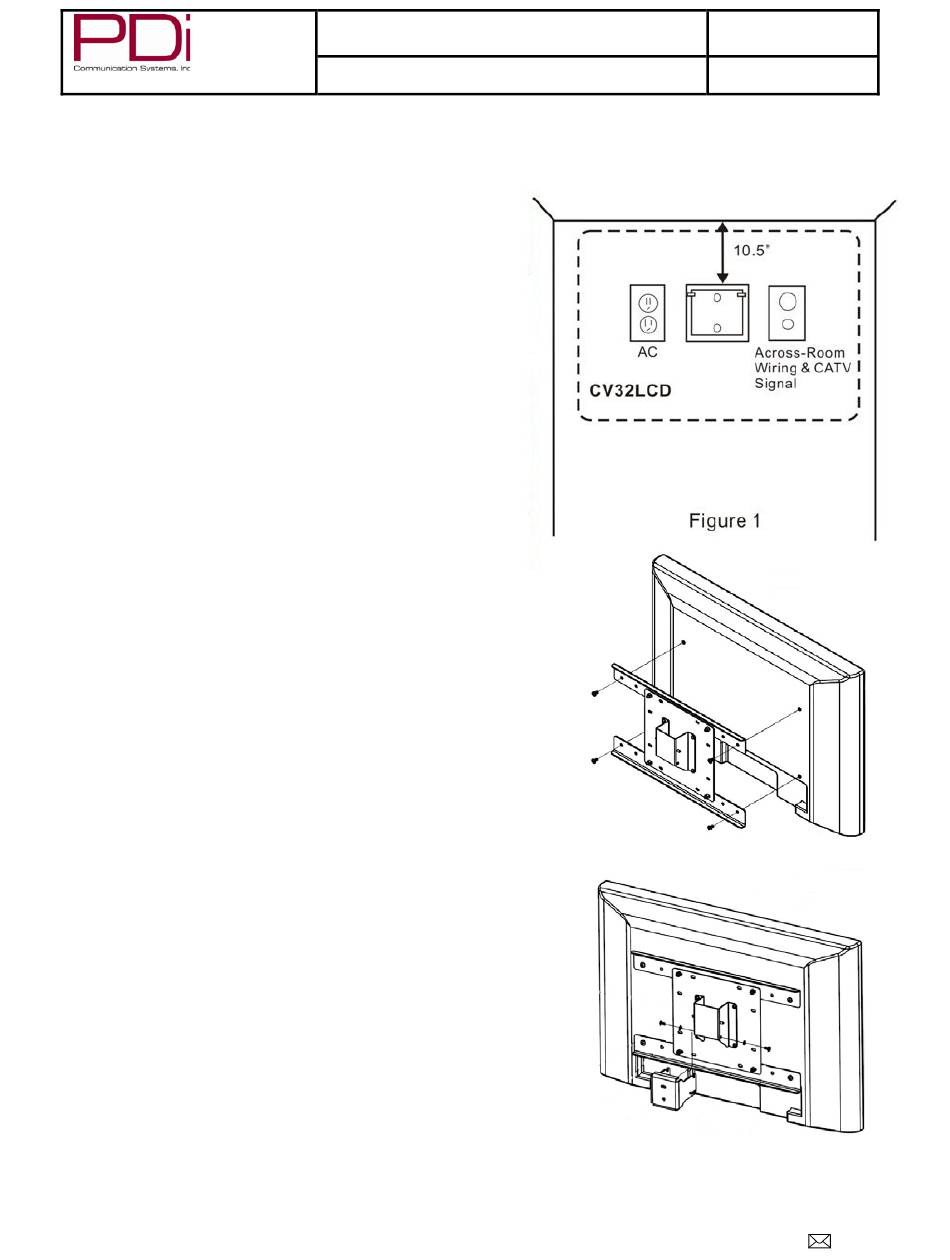

Refer to Figure 1. For the CLEAR VIEW-CV32LCD
find a location on the wall 10.5 inches below the
ceiling to mount the HD Extended LCD Tilt Clevis
(wall mount).
NOTE: DO NOT locate AC, Across-Room Wiring, and
CATV Signal outlets below the Wall Bracket's location as it
will cause clearance issues and interfere with the TV's
cabinet when mounted to the bracket.
2
Position the HD Extended LCD Tilt Clevis and locate
two mounting holes. Place one of the supplied ¼" flat
washers (CLEAR VIEWFW25) and the ¼" lock
washer (CLEAR VIEWSLW25) on a ¼" screw (not
included) and insert it into the top mounting hole of the
clevis. Secure the clevis to the wall. Place the other
supplied ¼" flat washer on another ¼" screw and
insert it in the bottom mounting hole. Secure it to the
wall and tighten both screws.
3
Refer to Figure 2. Attach the LCD mount to adapter
plate using the four M4 screws (CLEAR
VIEWPPHMSM4X76) and four #10 Internal Tooth
Lock washers (CLEAR VIEWITLW10).
NOTE: The side with the four hex sides will go toward the back of
the set.
4
Position the mounting bracket and adapter
plate on the LCD TV cabinet. Attach with the
four M6 screws (CLEAR
VIEWPPHMSM6X110) that are provided.
5
5. Mate the mounting bracket to the clevis
making sure the resting pins are inserted in
the two notches at the front of the clevis.
Secure with the two 10x32 screws
(PDIPPHMS103238) and the two remaining
Internal Tooth Lock washers.
6
The TV's tilt can be adjusted by loosening
both Pilfer Screws, adjusting tilt, and then
tightening the screws.
PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 800-628-9870 FX 937-743-5664
MODEL NUMBER:
CV2600, CV3200
Healthcare LCD TV
TM
Document Number:
PD196-241R2
Page 4 of 9
Figure 2
Figure 3
